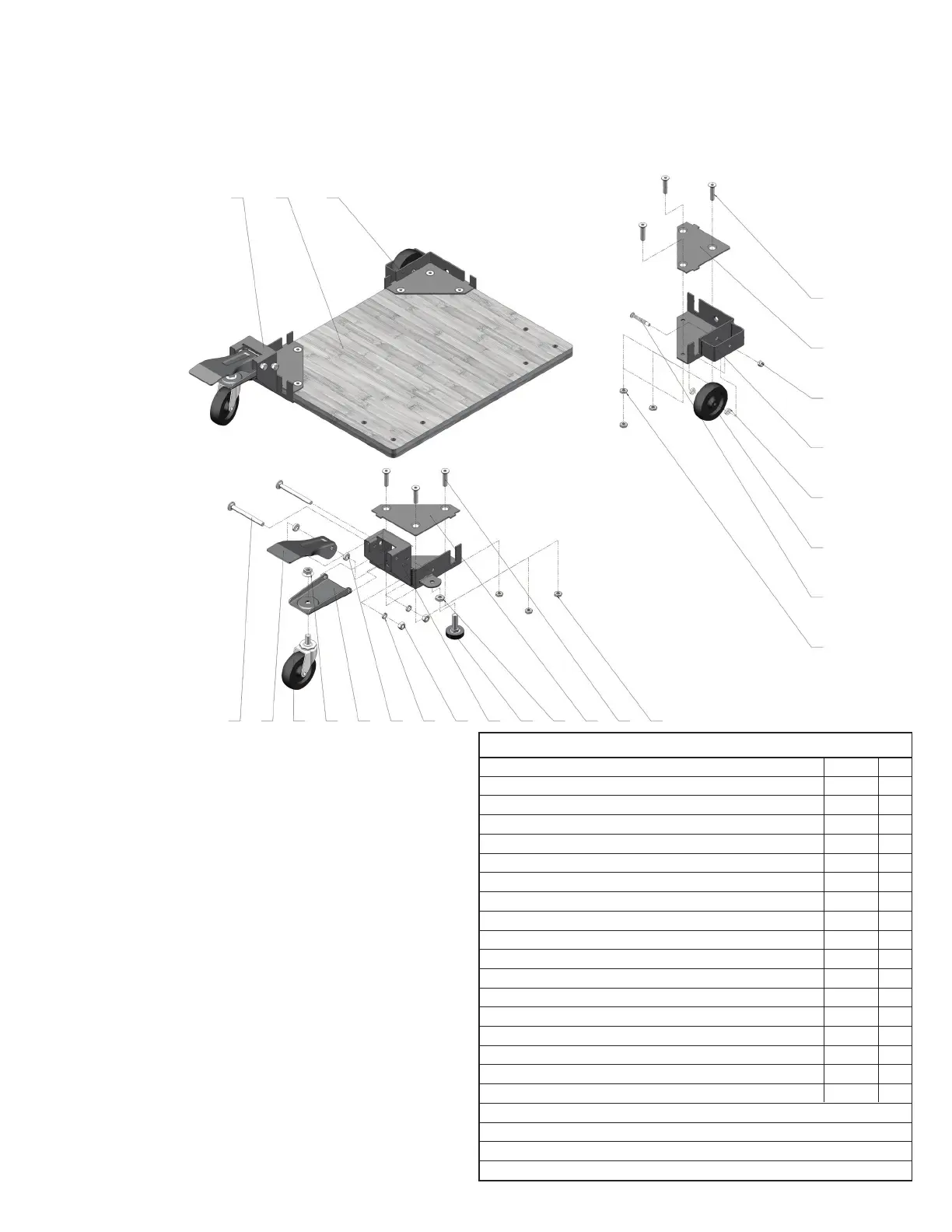

Figure 1
Congratulations
You have just purchased a Bora Tool PM-1100 Universal Mobile Base Kit. This product has been specifically
designed to make your Mobile Base any size you need using plywood as the base.
Parts
Description Part No. Qty.
A CORNER, L.H. W/CASTER BRACKET 3093 1
B CORNER, R.H. W/CASTER BRACKET 3092 1
C CORNER, L.H. W/WHEEL HOUSING 3095 1
D CORNER, R.H. W/WHEEL HOUSING 3094 1
E BOLT PLATE 3096 4
F 3" SWIVEL CASTER WHEEL G706 2
G M10 NUTS, FLANGED/SERRATED C405 2
H RUBBER GLIDE FOOT G209A 2
I M10 JAM NUT C305 2
J 3" WHEEL G705 2
K M8-30 MACHINE SCREW (FOR PLYWOOD = < 3/4" THICK) 5215 12
L M8-40 MACHINE SCREW (FOR PLYWOOD > 3/4" THICK) 5216 12
M SWIVEL PLATE 5205 12
N M8-85 CARRIAGE BOLT 5211 4
O NYLON FOOT LEVER BUSHING 5213 4
P M8 LOCK WASHER 5209 4
Q M-8 NUT 5210 4
R FOOT LEVER 5204 2
S PLYWOOD (NOT INCLUDED)
T M6 NYLON WHEEL BUSHING A102 2
U
M6 NUT, SELF LOCKING
D117 2
V
M6-45 MACHINE SCREW, AXLE
5214 2
D
R Q
L
L
E
EB
C
F I
A S
T
U
V
K
G J
J
N HM O P
To Next Page
