22 | English
Symbols
The following symbols may be important for the operation of
your power tool. Please take note of these symbols and their
meaning. Correctly interpreting the symbols will help you to
operate the power tool more effectively and safely.

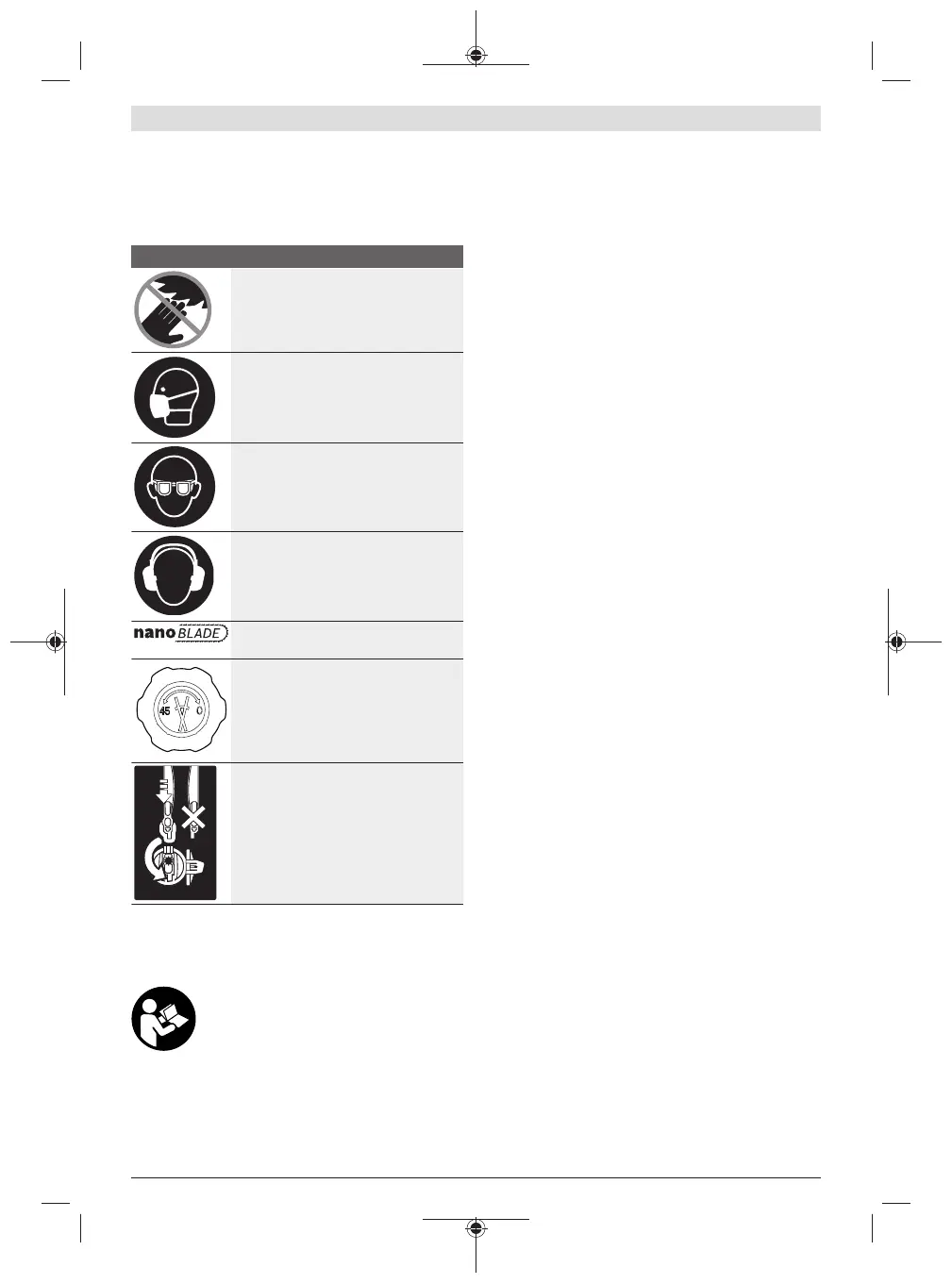

Symbols and their meaning
Keep hands away from the cutting area
while the power tool is running. Con-
tact with the saw blade can lead to injur-
ies.
Wear a dust mask.
Wear safety goggles.
Wear hearing protection. Exposure to
noise can cause hearing loss.
Saw blade technology comprises a saw
blade with a revolving micro-chain
Possible rotational directions of the
rotary knob to adjust the bevel angle
Make sure the saw blade is fitted the right
way round. The rounded side of the saw
blade must be facing away from the user.
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended Use
The power tool is a stationary machine for cutting in a
straight line with and against the grain in hardwood, soft-
wood, chipboard and fibreboard.
Bevel angles up to a maximum of 0° to +45° and mitre angles
of 60° (left side) to 60° (right side) on the universal guide
can be set.
This power tool is not suitable for sawing aluminium or other
non-ferrous metals.
Product Features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1)
Clamping lever of the universal guide
(2)
Universal guide with scale for mitre angles
(3)
Saw blade
(4)
Protective guard
(5)
Saw table
(6)
Mounting holes
(7)
Transport handle
(8)
Push stick storage
(9)
Push stick
(10)
Connecting rod
(11)
Connecting rod locking mechanism
(12)
Off button
(13)
On button
(14)
Scale for bevel angles
(15)
Rotary knob for adjusting the bevel angle
(16)
Angle indicator (bevel)
(17)
Wing bolt for loosening and securing the bevel angle
(18)
Accessories drawer
(19)
Knurled screw for fixing the universal guide
(20)
Cable holder
(21)
Additional stop for universal guide
(22)
Extraction outlet
(23)
Guide rail of the universal guide
(24)
Crossways guide groove for the universal guide
(25)
Lengthways guide groove for the universal guide
(26)
Release button for additional stop holder
(27)
Additional stop wing bolts
(28)
Locking lever for cover of saw blade receptacle
(29)
Cover of saw blade receptacle
(30)
Holder for protective guard
(31)
Saw blade guide unit
(32)
Drive shaft
(33)
SDS saw blade receptacle
(34)
Workpiece support
(35)
Angle indicator (mitre)
(36)
Scale for mitre angle
(37)
Screw grabber for wing bolt and clamping lever
1 609 92A 66E | (12.01.2021) Bosch Power Tools
