English – 10
0 275 U07 XCX | (11.01.2019) Bosch eBike Systems
state of charge can be displayed for three seconds by
pressing the on/off button (10) on the eBike battery.
Disconnect the charger from the mains and the bat-
tery from the charger.
When the battery is disconnected from the charger,
the battery is automatically switched off.
Note: If you have charged the battery on the bike,
carefully close the charging socket (6) with the cover
(7) after charging, so that no dirt or water can get in.
If the charger is not disconnected from the battery af-
ter charging, the charger will switch itself back on af-
ter a few hours, check the state of charge of the bat-
tery and begin the charging process again if neces-
sary.
Maintenance/cleaning
u Do not open any of the components. Service
should only be carried out at an authorized
Bosch eBike dealer. Failure to follow above warn-
ing can cause death or serious injury. Refer to your
bicycle manual or component manual for all non-
Bosch drive system components.
u Do not charge or use your eBike in any area with
a potentially explosive atmosphere, such as at a
fueling area, or in areas where the air contains
chemicals or particles (such as grain, dust, or
metal powders). Obey all signs and instructions.
u Do not submerge your eBike components in wa-
ter, or wash with pressurized hose. Your Bosch
drive unit is designed to be water tight to rain water
or non-pressure hose washing.
u Do not paint any components of the Bosch drive
system as they may cause premature failure of
the component.
After-sales service and advice on using
products
If you have any questions about the eBike system and
its components, contact an authorized bicycle dealer.
For contact details of authorized bike dealerships,
please visit www.bosch-ebike.com.
Please contact an authorized bicycle dealer if the bat-
tery is no longer working.

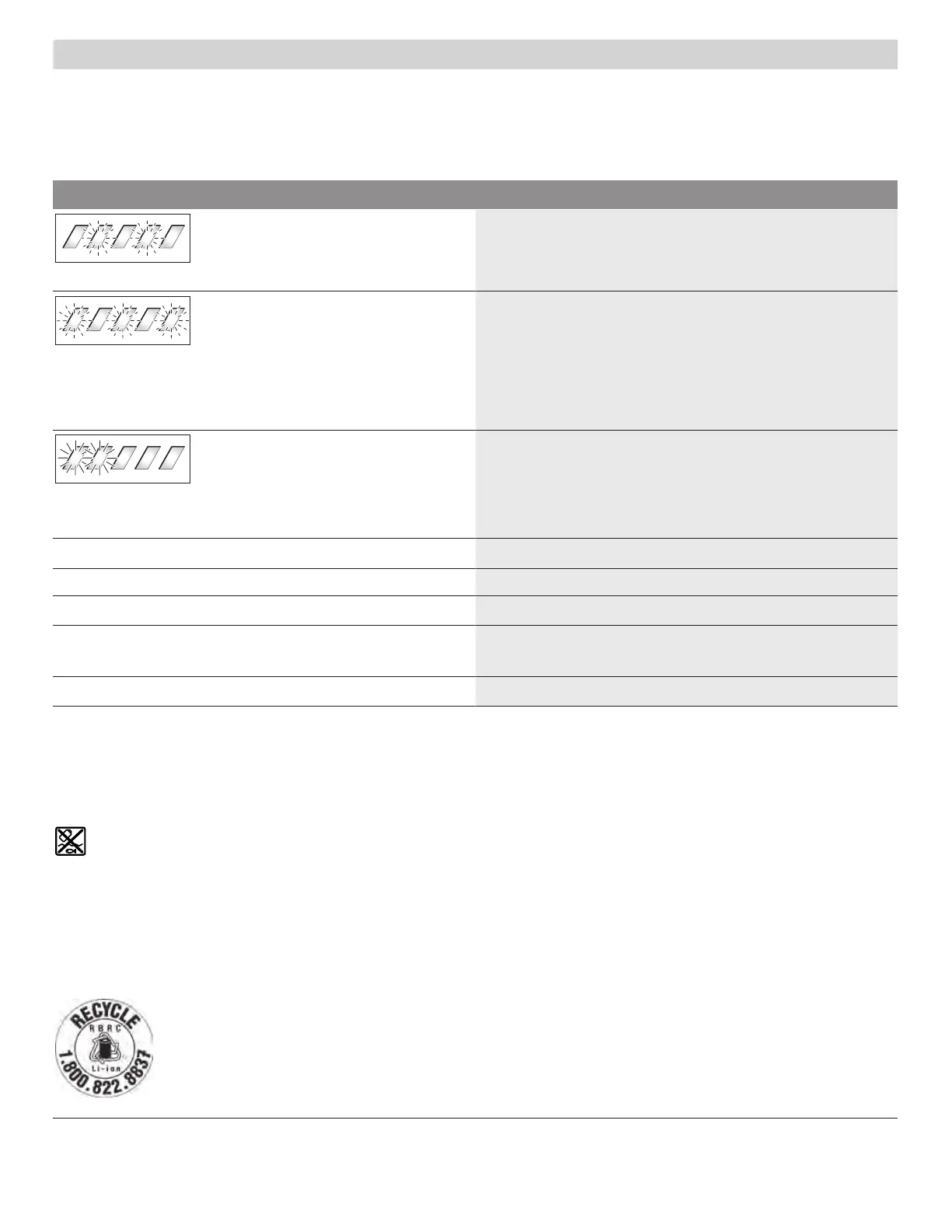

Troubleshooting
Cause Corrective measures
Battery defective
Two LEDs flash on the battery.
Contact an authorized bike dealership.
Battery too warm or too cold
Three LEDs flash on the battery.
Disconnect the battery from the charger until the
charging temperature range has been reached.
Do not reconnect the battery to the charger until it has
reached the correct charging temperature.
The charger is not charging.
No LEDs flashing (one or more LEDs will remain
permanently lit depending on the state of charge of
the eBike battery).
Contact an authorized bike dealership.
Charging not possible (no indicator on battery)
Connector not attached properly Check all connections.
Battery contacts dirty Carefully clean the battery contacts.
Socket outlet, cable or charger defective Check the mains voltage, have the charger checked
over by a bike dealership.
Battery defective Contact an authorized bike dealership.
English – 11
Bosch eBike Systems 0 275 U07 XCX | (11.01.2019)
English – 12
0 275 U07 XCX | (11.01.2019) Bosch eBike Systems
Battery Recycling Program
The drive unit, on-board computer incl.
operating unit, battery, speed sensor, ac-
cessories and packaging should be dis-
posed of in an environmentally correct
manner.
Do not dispose of eBikes and their components with
household waste.
You may recycle your Bosch battery
pack by calling 1.800.822.8837.
EN-53
