Step 7: Mount Integral Blower or
Outlet Duct Transition for Remote
Blower

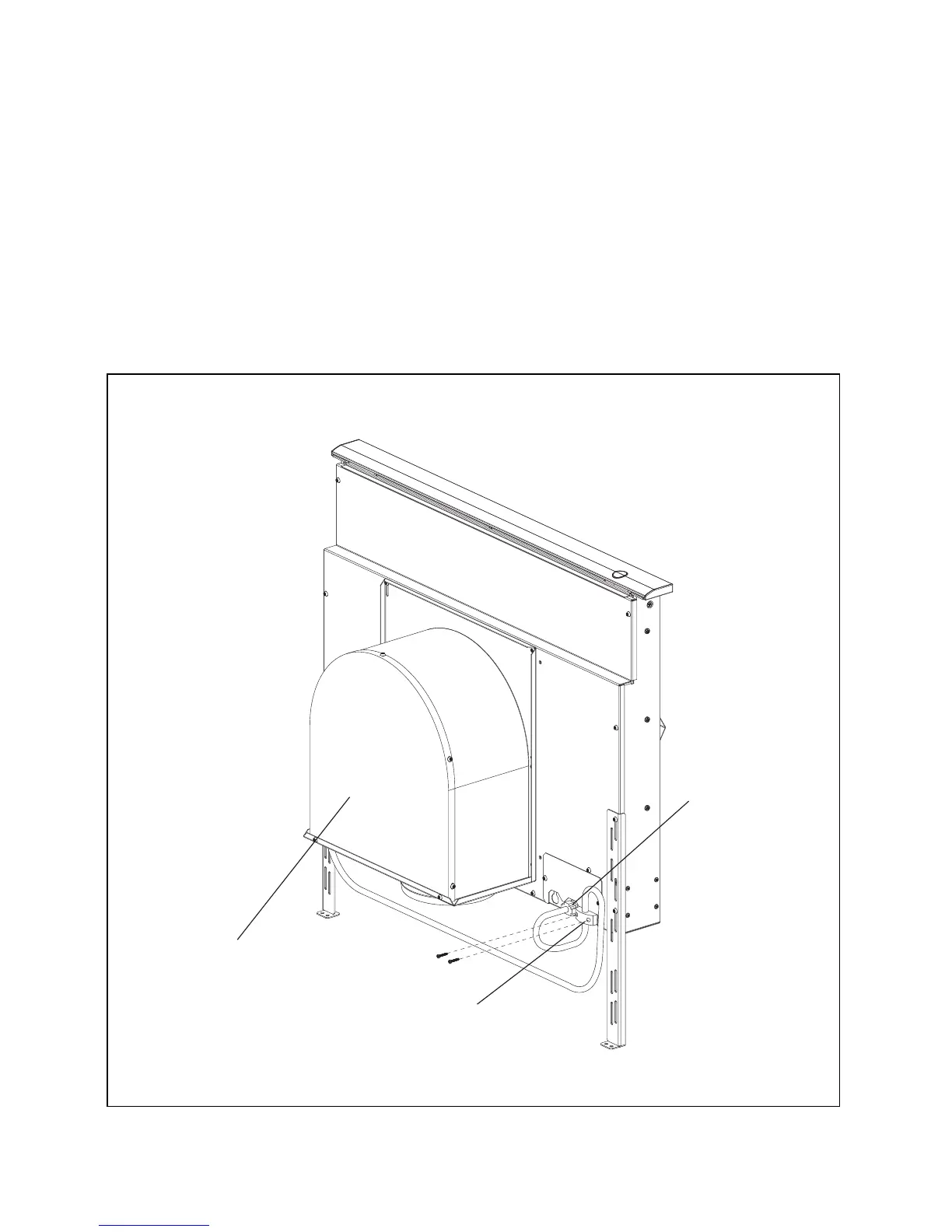

Integral Blower (see Figures 10 and 12 for
further detail):
A. Attach blower in front of round exhaust
outlet with 4-6 (depending on
configuration) #8 sheetmetal screws.
B. Feed cord from blower through strain
relief.
C. Secure strain relief with screws.
Step 7: Mount Integral Blower or
Outlet Duct Transition for Remote
Blower
Integral Blower VTN600CV2C (see Figures
10 and 12 for further detail):
D. Attach strain relief to downdraft near
junction box.
E. Connect cord to downdraft at 6 pin
connector.
F. Connect blower to ductwork.
