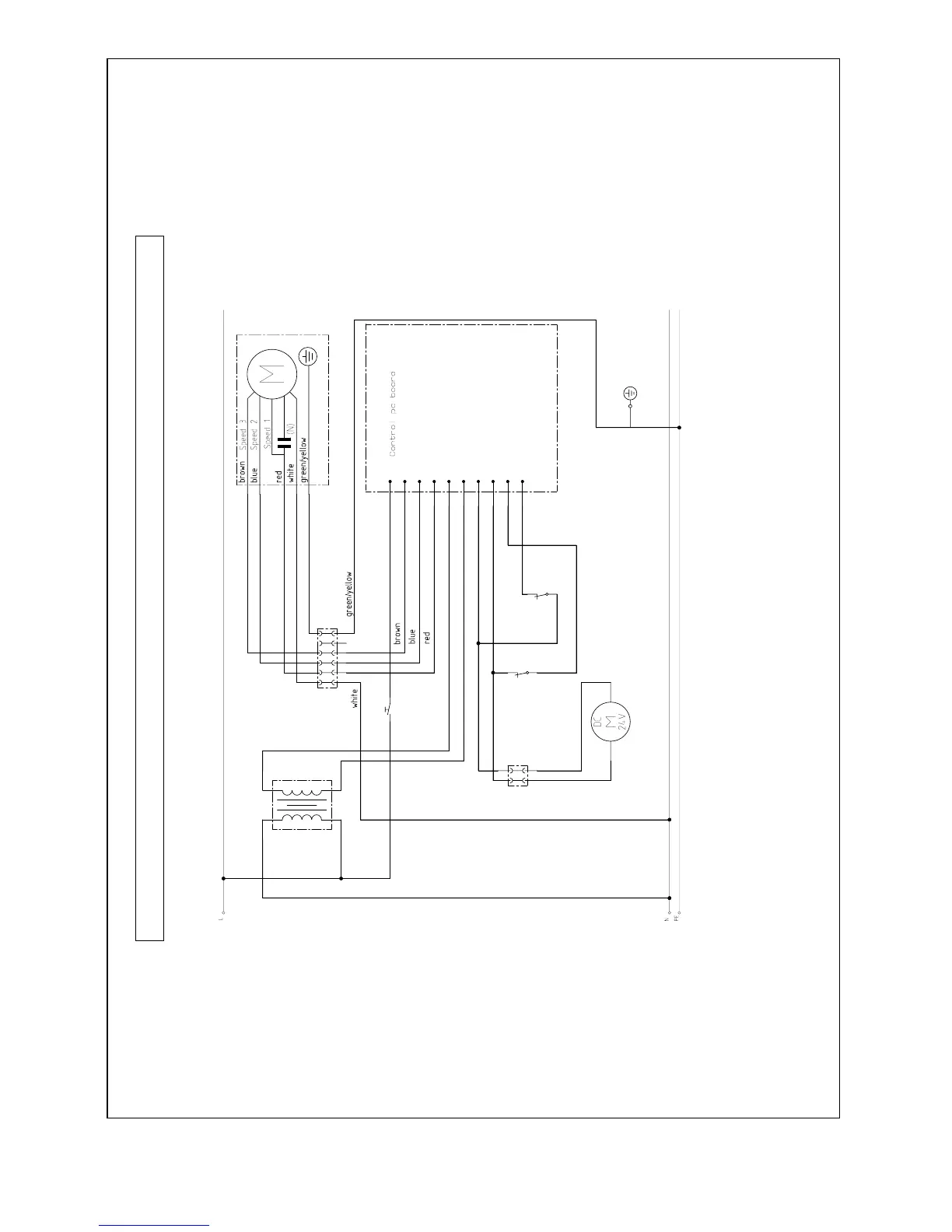

Fig. 12 – Wiring Diagram
18
POWER
3 WIRE SINGLE PHASE 60 Hz
L1: 120 V
N: GROUNDED WHITE WIRE SPEED 1 RED WIRE SPEED 2 BLUE WIRE SPEED 3 BROWN WIRE GND: GROUNDED GREEN WIRE
RATING: 120V-10A
SW POSITION SHOWN WITH DOWNDRAFTIN LOWERED POSITION ABBREVIATIONS: C= COMMON NO = NORMALLY OPEN
NC = NORMALLY CLOSED
WARNING: POWER MUST BE DISCONNECTED BEFORE SERVICING THIS APPLIANCE
