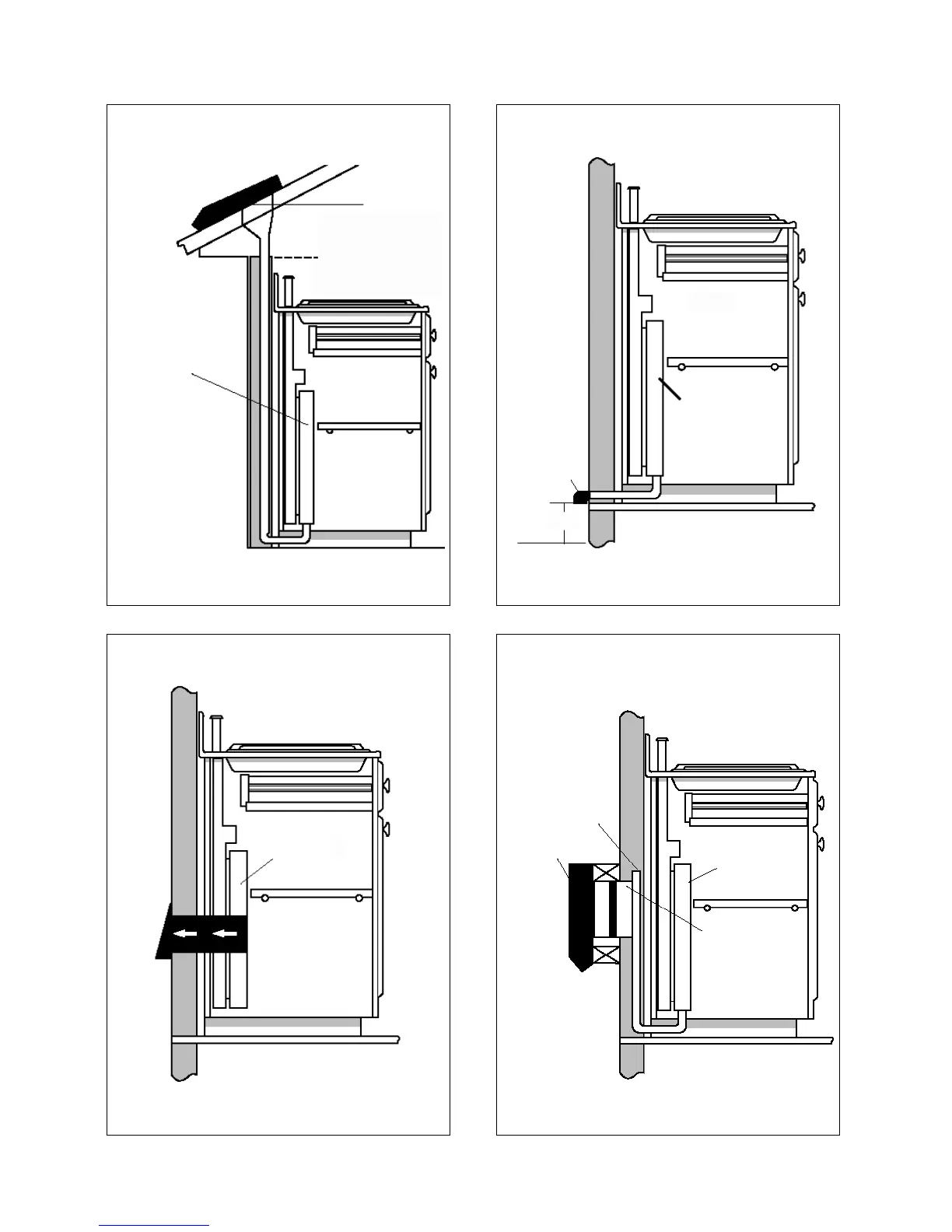

Figures 3 through 6 are examples of possible ducting
Duct Transition Box
Remote
Blower
Fig. 3
Remote Blower
Roof Mount Installation
Integral Blower
12" Min.
Ground
Wall Cap
1255-1
Fig. 4
Integral Blower
Through Wall Installation
Integral Blower
BLOWER ROTATED 90° FOR SIDE
CONNECTION
Fig. 5
Integral Blower
Through Wall Installation
Duct Transition
Box
Remote Blower
10" Collar
3-1/4" x 10" or
8" Duct
End Must Be
Closed and
Sealed
Fig. 6
Remote Blower
Through Wall Installations
