4.8.3 Accessories
List of connectors and assembled cables
Ordering designation of as‐
sembled cables
Mating connector of the de‐
vice

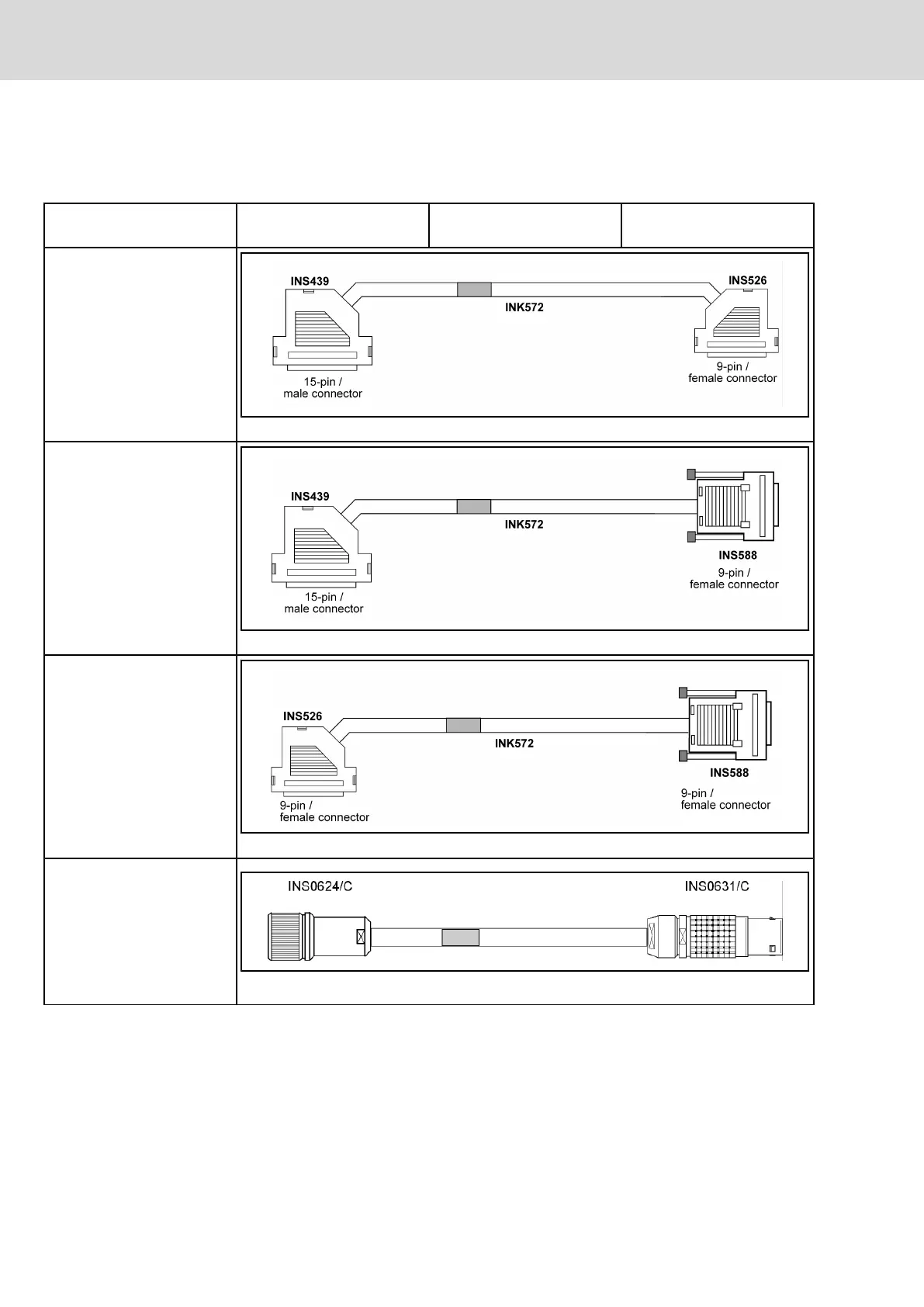

Bosch Rexroth cable Design of the cable end
IKB0005
MN: 278 141, 2 m
MN: 278 144, 5 m
MN: 278 142, 10 m
MN: 278 143, 15 m
(RS232, max. 15 m)
Fig.4-50: IKB0005
IKB0012/000,0
MN: 281 715
(RS232, max. 15 m)
Fig.4-51: IKB0012/000,0
IKS0106/000,0
MN: 260 838
(RS232, max. 15 m, configu‐
ration Profibus)
Fig.4-52: IKS0106/000,0
IKS0190
MN: 279 743, 3 m
MN: 279 743, 5 m
MN: 279 744, 10 m
MN: 279 745, 15 m
(RS422, max. 15 m)
Fig.4-53: IKS0190
