5 PC CPU Configuration -45
5.1 Brief Description

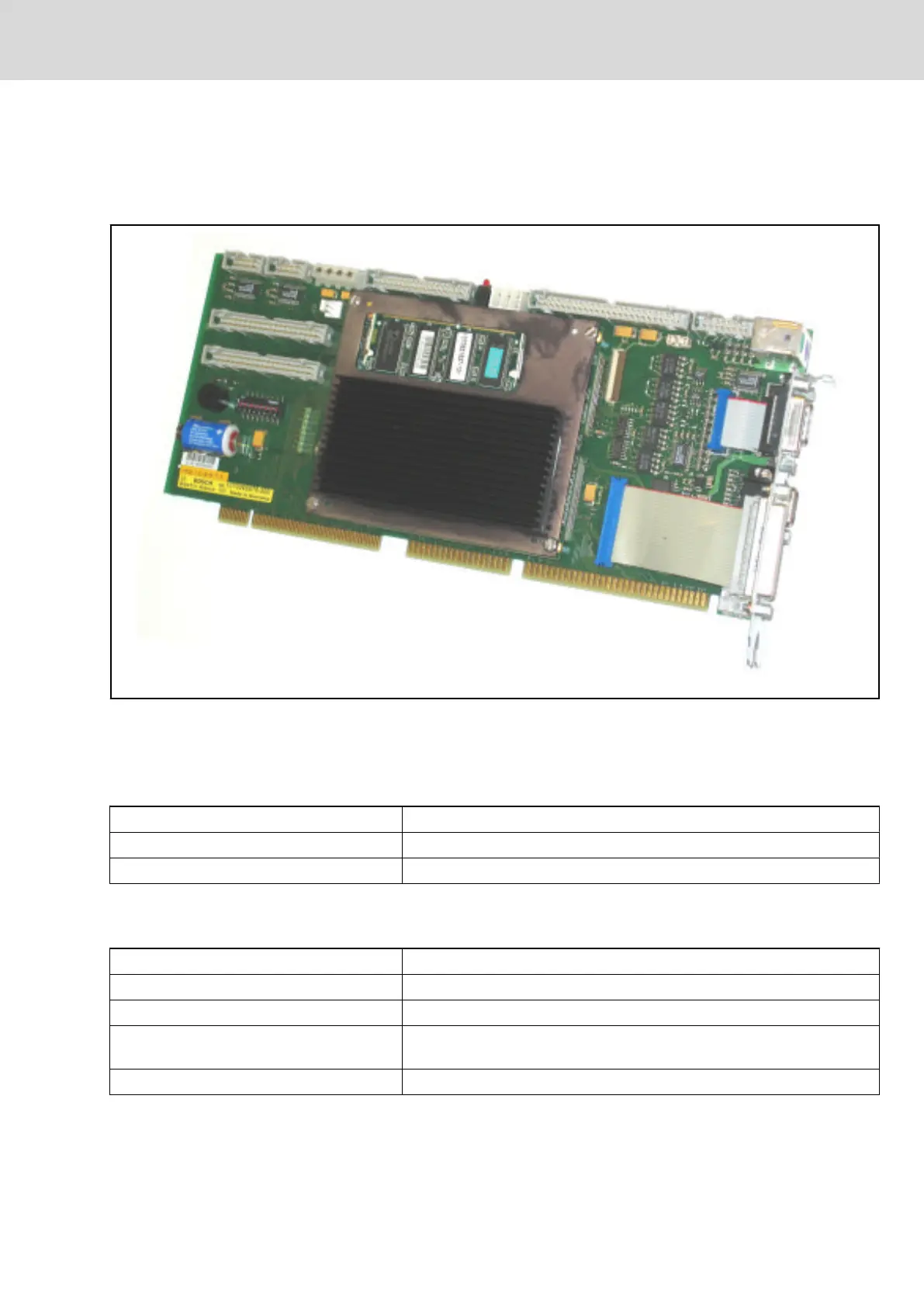

Fig.5-1: Slot CPU card
5.2 Technical Data
5.2.1 Electrical Specifications
Voltage supply +5, +12 V (+/- 3%)
Power consumption 10-20 W typically (depending on the processor type)
Battery +3.6 volt lithium battery, size ½ AA)
Fig.5-2: Electrical specifications
5.2.2 CPU and Memory Specification
Processor INTEL, Mobile Pentium III min. 700 MHz
CPU Clock Rate Min. 700 MHz
System Clock Rate 100 MHz frontside bus
Program memory 1 144 Pin SO-DIMM 3,3 V PC100, max. 256 MB. Use 256 MB "stacked" SO
DIMM modules only. Do not use 256 MegaBit modules.
System Core INTEL 440BX AGP Set
Fig.5-3: CPU and memory specification
