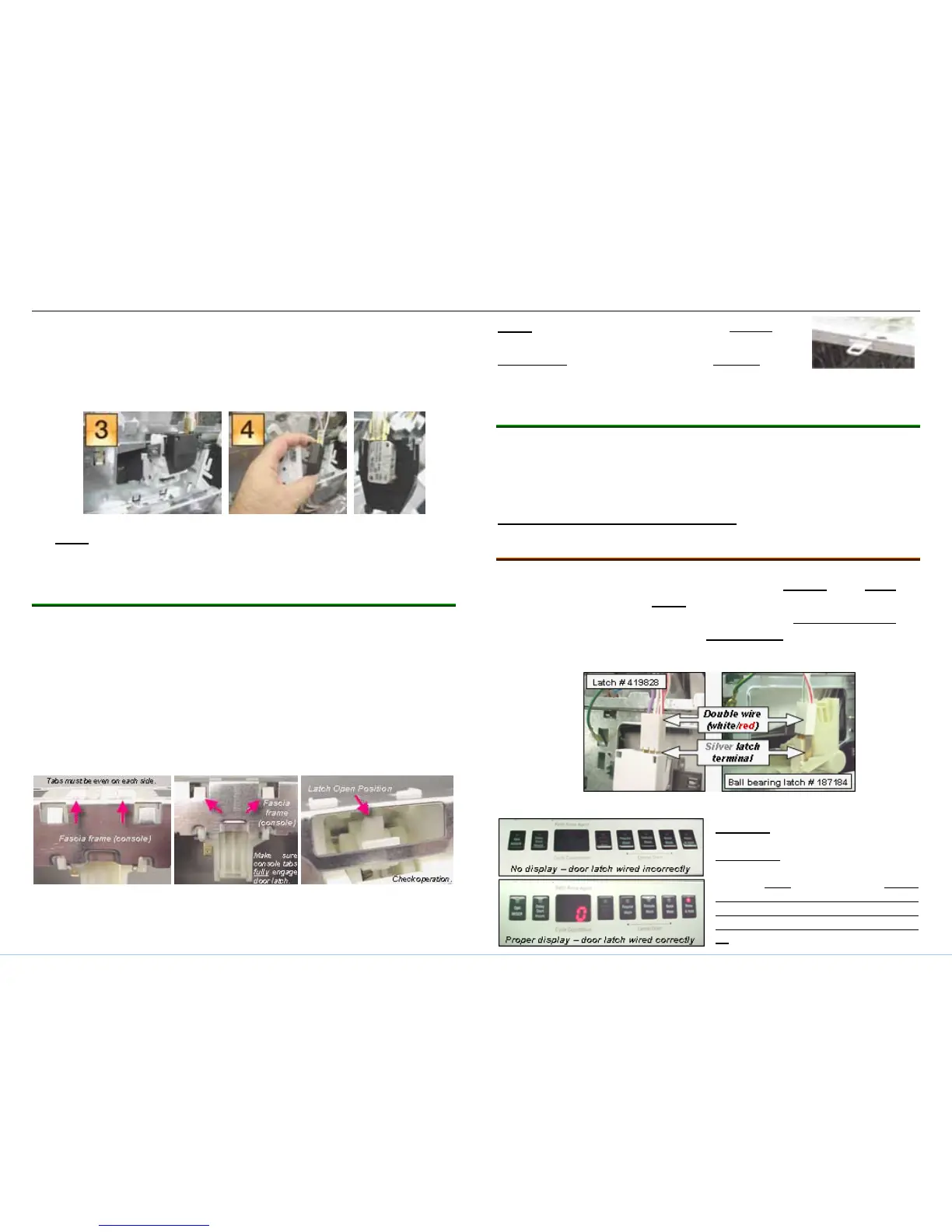

3. Remove door latch from console.
4. If door latch has a microswitch cover, disconnect wire
harness and remove microswitch & cover.
5. Remove microswitch from door latch.
HINT: Make sure plastic latch tabs are aligned & metal
console tabs are bent back completely during reassembly.
5.7.2 Misaligned door latches
Occasionally integrated dishwasher door latches can be
misaligned, causing doors to not close properly or dishwashers to
run with doors open (when latches don’t reset). Follow these
steps to realign door latches.
1. Insert latch tabs into frame.
2. Bend tabs down into latch.
3. Reset latch to open position.
HINT: Make sure latch tabs are seated, all
fascia frame (console) tabs are bent
completely, door strikes are aligned with
latches and door latches get reset.
5.7.3 Miswired door latches
If replacement SHV46/66, SHU995x, SHV68, SHX33/43/46,
SHY56/66 or SL95A door latches/wire harnesses are miswired
(with door latch terminals backwards), dishwashers run with
doors open and lights won’t turn on when doors are open.
Controls can be irreversibly damaged.
5.7.3.1 Rewiring door latches:
• Check wiring to photos below – the double wire must be
connected to the silver door latch terminal.
• With door open, turn on dishwasher – keep door open. If
display doesn’t turn on, immediately turn off dishwasher
and reverse door latch terminal.
CAUTION: Operating dishwashers
with miswired door latches will cause
irreversible
damage to controls if
circulation pumps have started –
controls must
be replaced. Check
door latch wiring whenever door latch
terminals are disconnected or
changed or when displays don’t light
up.
702_58300000148618_ara_en_a Page 35 of 42
