Circulation Pump
Circulation Pump
–
–
Replacing Impellers (3)
Replacing Impellers (3)
Replacement impellers will have a green tint compared to
older impellers. The impeller ceramic ring should be pink
or bright white.
Note pink ceramic ring
around impeller shaft.
HINT: To remove an
impeller, place a 8mm
nut
driver (or similar tool) on
8mm stud in center of
impeller.

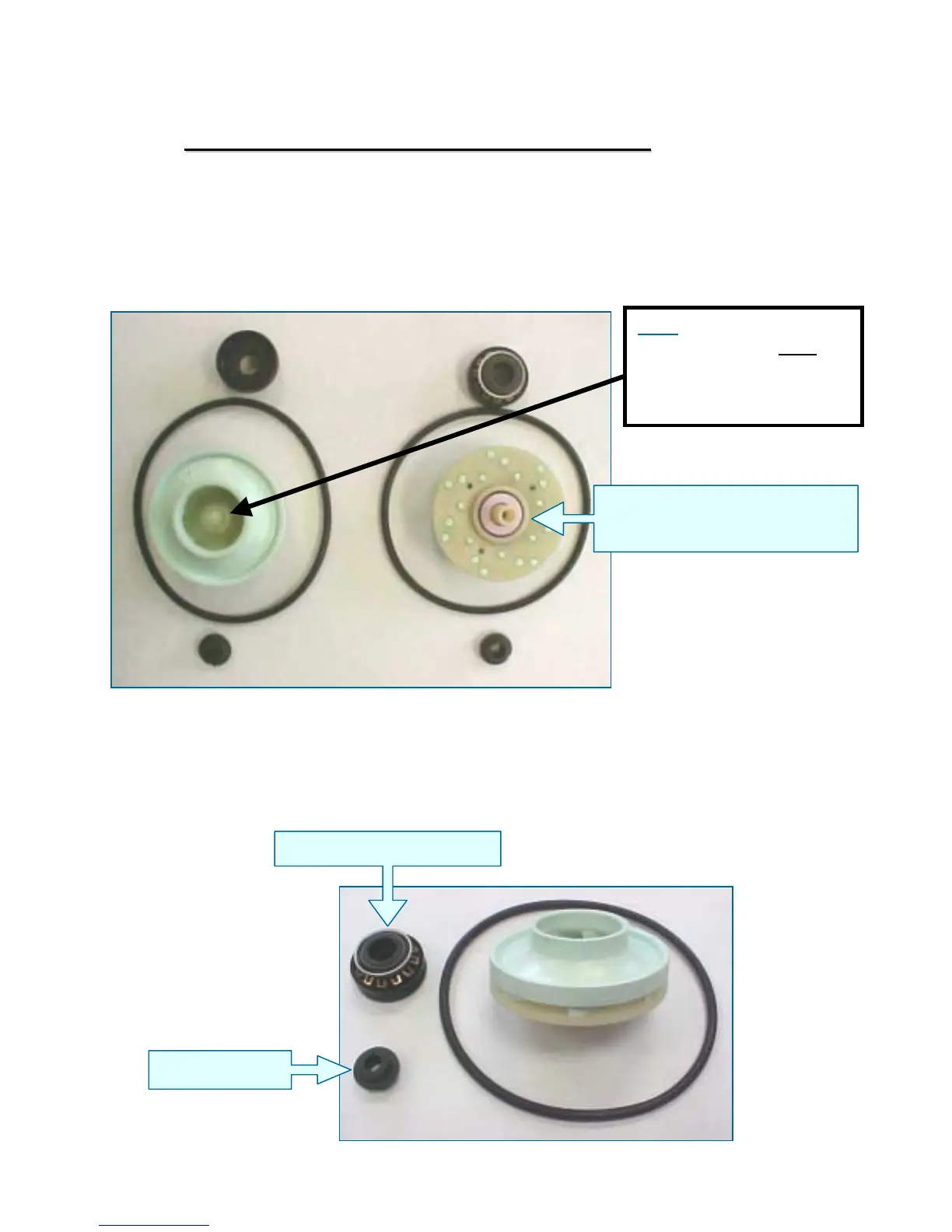

Impeller kit # 167085, showing front
and rear sides of impeller and carbon
ring (spring).
Carbon ring (spring)
Black spacer
