Bosch SHXM65Z Series Installation Instructions

12

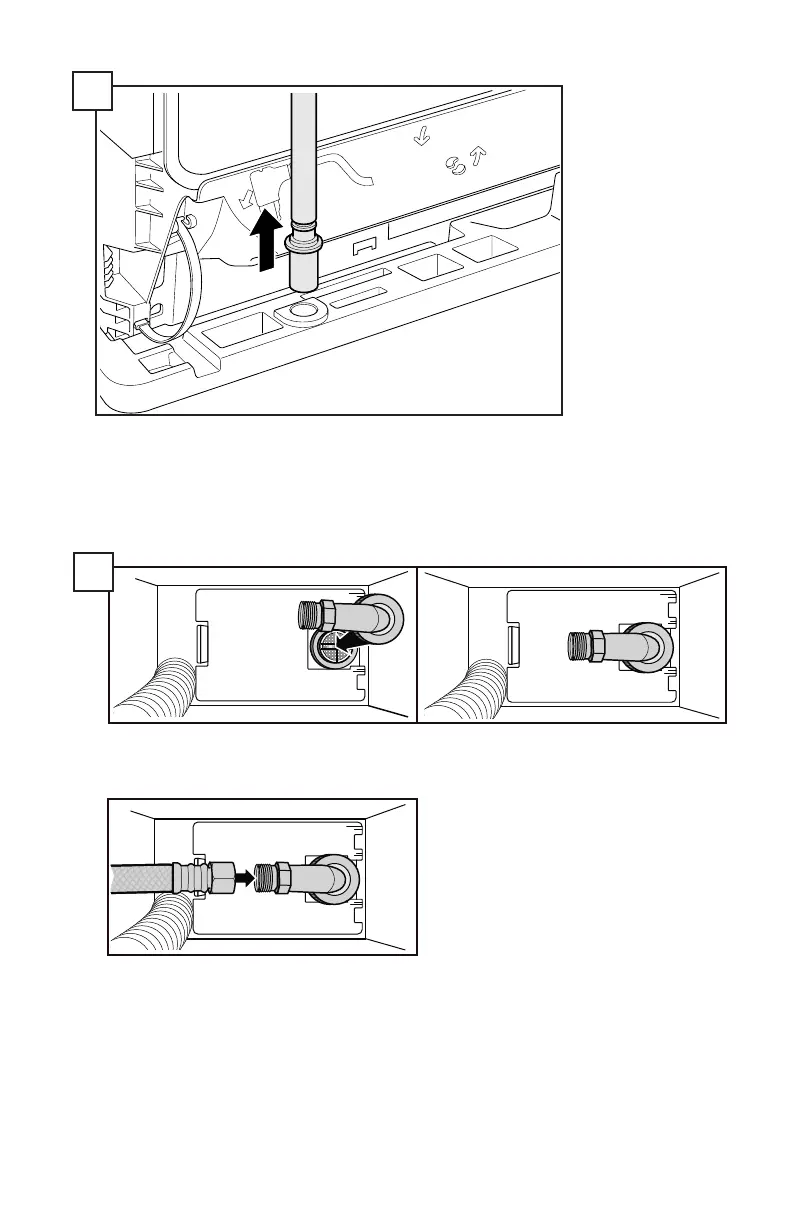

• Pull the drain hose out of the packaging base as shown.
• Set toe panel aside for later use.
1
2
b
a
5
• Attach elbow joint to dishwasher as shown. Do not overtighten.
• Attach hot water line to elbow. Use two wrenches to tighten to avoid
putting stress on the water inlet valve.
Note: For a easier access to the hot water inlet connection, tip unit slightly
forward with someone holding the front side of the unit.
6
