Bose DesignMax DM10S-SUB User Manual

English • 5Installation Guide • DM10S-SUB
PRO.BOSE.COM
Installation

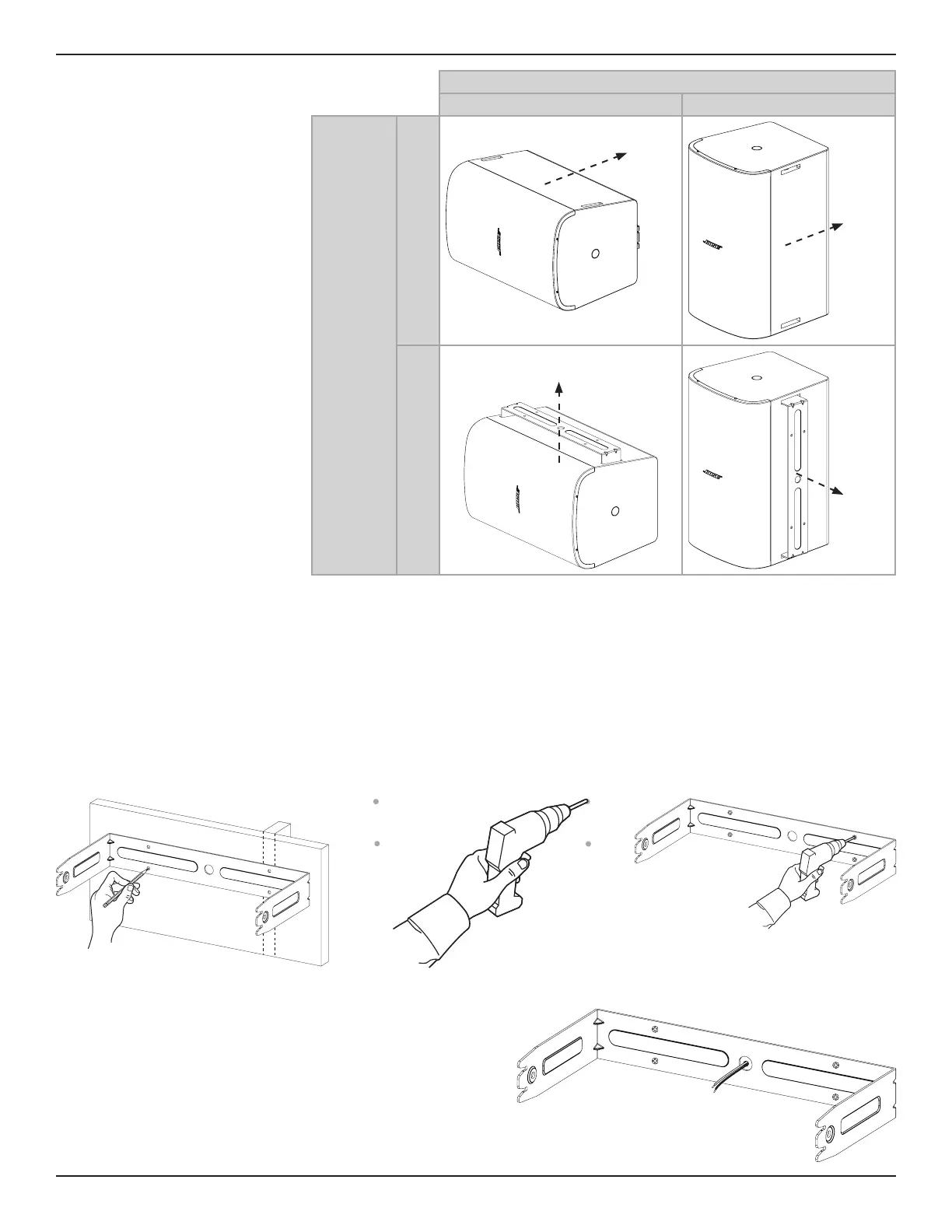

Installation Options
There are two pairs of slots used
to secure the loudspeaker to the
mounting bracket, located on the
back and side of the loudspeaker.
There are two dierent loudspeaker
mounting positions: horizontal and
vertical. See the table to the right to
choose the installation option best
suited for your installation.
Note: Installation in close proximity
to cooking surfaces where the
loudspeaker may be directly exposed
to cooking oils, such as in commercial
cooking environments, may decrease
the performance or functionality of
the loudspeaker.
Installing the Bracket
Note: When choosing an installation location, at least one of the mounting bracket's attachment points must be secured to a support
structure. Attachment points not secured to a support structure must be secured using appropriate hardware for the installation. Choose
fasteners that are consistent with all local building codes and requirements.
Note: Choose appropriate fasteners to support the weight of the loudspeaker (16.10 kg [35.5 lb]).
1. Mark the drill holes.
2. Drill four holes (sized for appropriate fasteners) into the wall.
3. Secure the bracket to the wall with four screws (not included). Note: Use M6 or ¼-inch sized screws.
q w e
q
Wiring the Connector
1. Feed the wires through the center hole of the bracket.
2. Remove the connector from the loudspeaker.
3. Wire the connector. For wiring information, see Wiring the
Loudspeaker on page 4.
Loudspeaker Orientation
Horizontal Vertical
Bracket
Orientation
Back
Side
Attach
to wall
Attach to
ceiling
Attach
to wall
Attach
to wall
