4 • English DesignMax DM3SE • Installation Guide
PRO.BOSE.COM
Setup
Installation Options

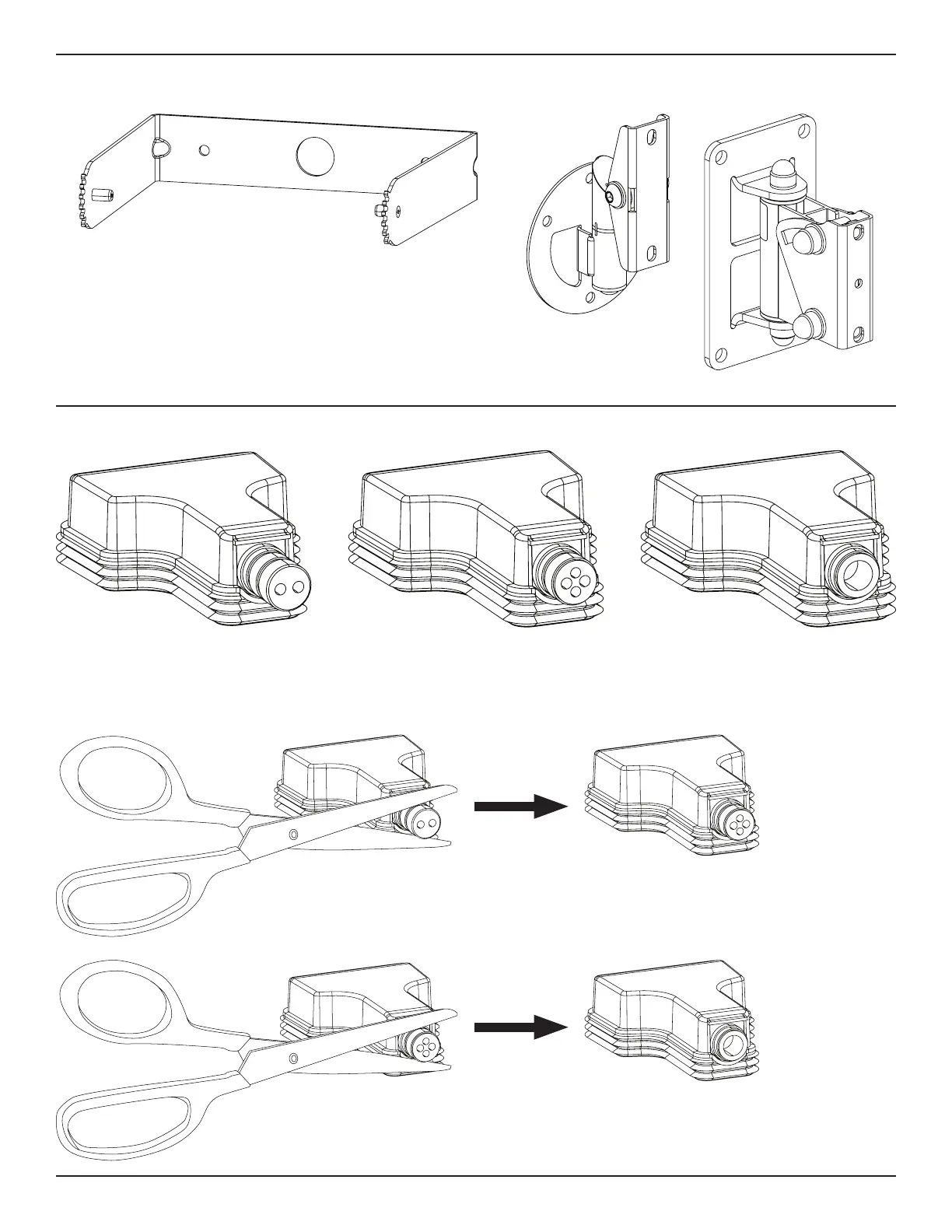

Installation Options and Accessories
q Mounting bracket (included)
w DMSBRKT pan-and-tilt bracket (optional; for indoors only)
e MBPWR-50 pan-and-tilt bracket (optional; for outdoors)
q w e
Preparing the Weather-resistant Input Cover
The weather-resistant input cover is designed for three dierent wiring scenarios (see above). To change the configuration of the input
cover to support your wiring scenario, cut along the perforation on the rubber conduit.
Note: Indoor-only applications do not require use of the input cover.
Single In In and Out Wide Open
Note: If using the wide open rubber conduit configuration, it is
the installer's responsibility to seal against water ingress into the
Euroblock connector.
Note: If installing the loudspeaker with the rubber conduit facing
upward, it is the installer's responsibility to seal against water
ingress into the Euroblock connector.
