4 • English DesignMax DM5P • Installation Guide
BoseProfessional.com
Setup
Wiring the Loudspeaker
Wire Gauge
The DesignMax DM5P loudspeaker is designed to work with 18 AWG (0.8 mm
2
) to 14 AWG (2.1 mm
2
) size wire only.
Loudspeaker Settings
70V
3W 6W 12W 25W 50W*
8Ώ
6W 12W 25W 50W NC**
100V
** NC: No Connection (do not use)
* Factory default

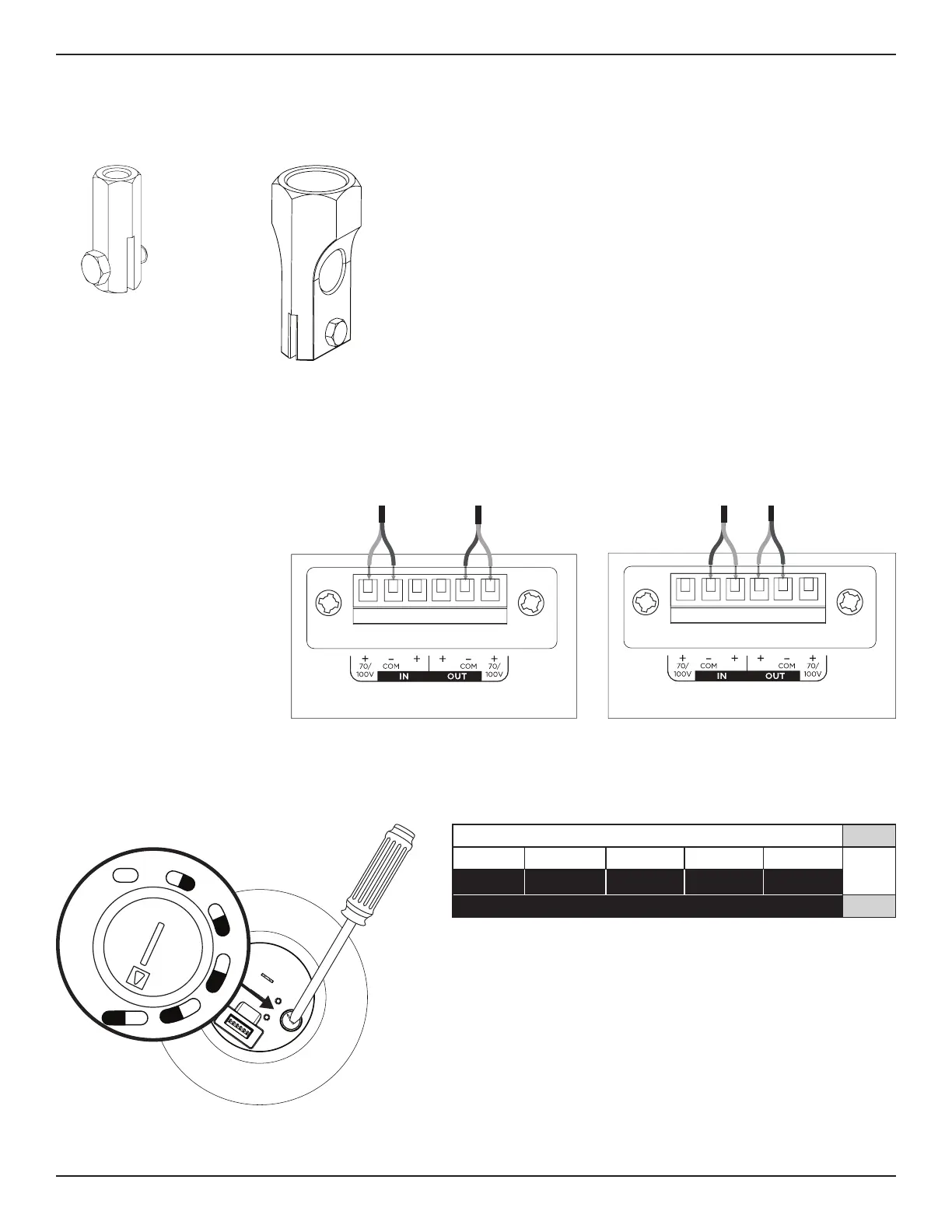

Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.
5
0
N C
2
5
5
0
1
2
2
5
6
1
2
3
6
8
Ω
Connection Diagrams
Expose six millimeters (¼inch) of
bare wire to attach to the terminals.
70/100V 8Ω
8Ω
8Ω
8Ω
8Ω
Installation Options and Accessories
q Threaded Rod Adapter
w Pendant Conduit Adapter
q w
