Bose EdgeMax EM90 Installation Guide

English • 3Installation Guide • EdgeMax EM90/EM180
PRO.BOSE.COM

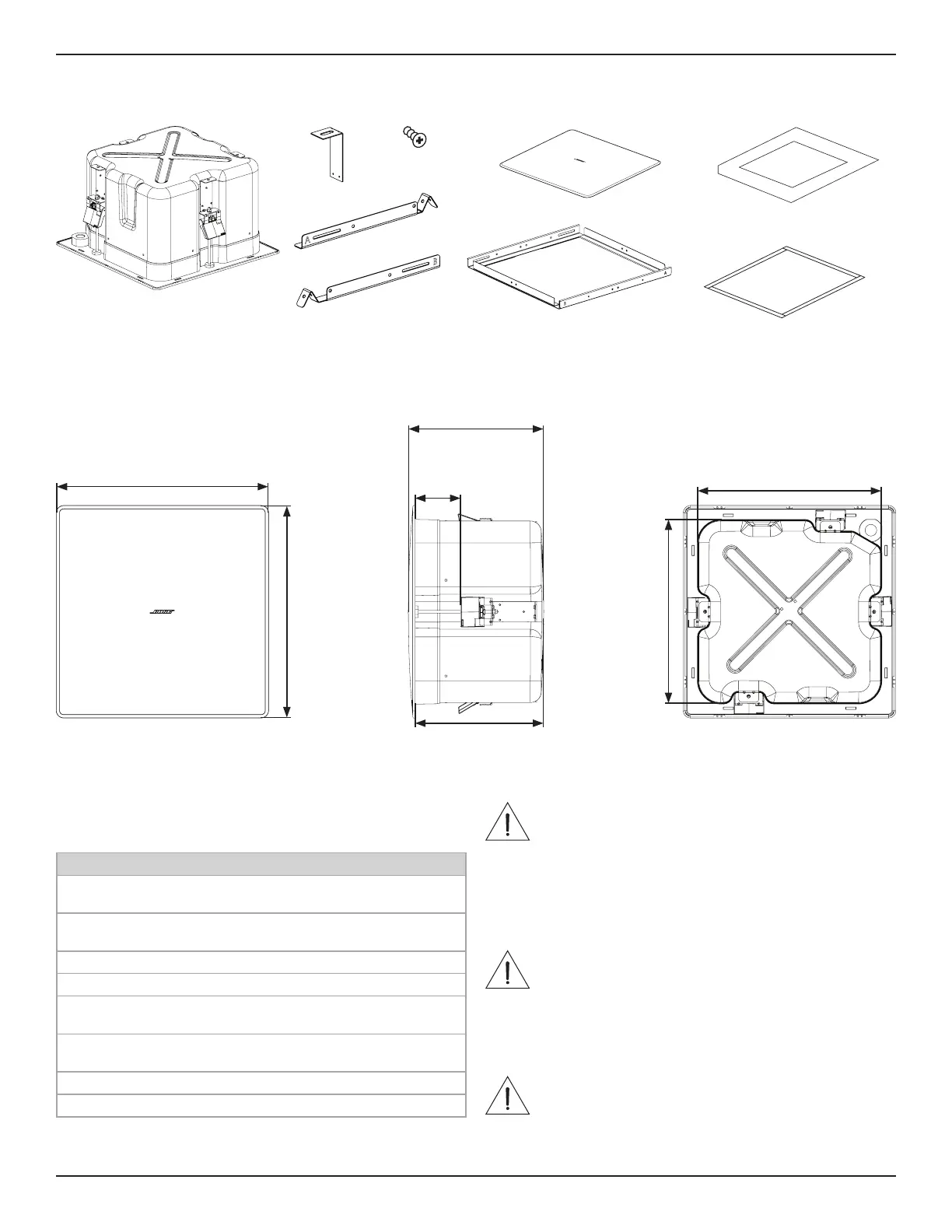

Overview
Package Contents
Product Dimensions
4–80 mm
0.2–3.1 in
236 mm
9.3 in
249 mm
9.8 in
339 mm
13.3 in
339 mm
13.3 in
390 mm
15.4 in
390 mm
15.4 in
Technical Specifications
For additional specifications, see the EdgeMax EM90 &
EM180 technical data sheet at PRO.BOSE.COM.
Physical
Product Dimensions Grille: 390 mm × 390 mm
(15.4 in × 15.4 in)
Enclosure: 339 mm × 339 mm
(13.3 in × 13.3 in)
Backcan depth: 236 mm (9.3 in)
Hole cutout 345 mm × 345 mm (13.6 in × 13.6 in)
Maximum Ceiling
Thickness
80 mm (3.1 in)
Net Weight,
Loudspeaker with grille
10.1 kg (22.2 lb)
Net Weight, Tile Bridge 1.4 kg (3.1 lb)
Shipping Weight 12.5 kg (27.6) lb)
Important Installation Information
It is the installer’s responsibility to ensure installation of
the loudspeakers and mounting system is performed in
accordance with all applicable codes, including local
building codes and regulations. Consult the local authority
having jurisdiction before installing this product.
It is the responsibility of the installer to ensure the safety
of the loudspeaker installation. Failure to properly install
the loudspeaker could result in damage, injury, or death.
Do not mount the product in locations where
condensation may occur.
This product is not intended for installation or use in
indoor water facility areas (including, without limitation,
indoor pools, indoor water parks, hot tub rooms, saunas,
steam rooms and indoor skating rinks).
Do not mount on surfaces that are not sturdy, or that
have hazards concealed behind them, such as electrical
wiring or plumbing. If you are not sure about installing the
bracket, contact a qualified professional installer. Ensure
the bracket is installed according to local building codes.
Do not use hydrocarbon based solvents, lubricants or
cleaning agents of any type on or around this loudspeaker
and associated mounting hardware during installation.
Exposure to such substances can lead to degradation of
the plastic material, resulting in cracking and creating a
falling hazard.
×1
×2
×2
×2
×1×1
×8
×1
×1

Bose EdgeMax EM90 Specifications

General

Product color	White
Recommended usage	-
Woofer	Yes
Number of drivers	1
Speaker placement	In-wall/in-ceiling
Audio output channels	- channels
Woofer diameter (imperial)	8 \
Impedance	8 Ω
Sensitivity	96 dB
Frequency range	45 - 20000 Hz
RMS rated power	125 W
Peak Music Power Output (PMPO)	500 W
Connectivity technology	Wired
Speaker width	339 mm
Speaker height	249 mm

Weight and Dimensions

Width	390 mm
Height	13 mm
Weight	10100 g
