Bose EdgeMax EM90 User Manual

Design Guide - 11
Design Worksheet, EdgeMax EM180 & Mixed EM90/EM180 Systems
When creating a design that uses the EdgeMax loudspeakers you should consider the
following:
• Recommended mounting height for EdgeMax loudspeakers is between 2.7 and 6.1 m
(9 and 20’)
• Maximum SPL for a typical application is between 95 and 110 dBSPL
• Always add 25% headroom to your amplifier to accommodate various types of program
material.
Eective
Loudspeaker
Height

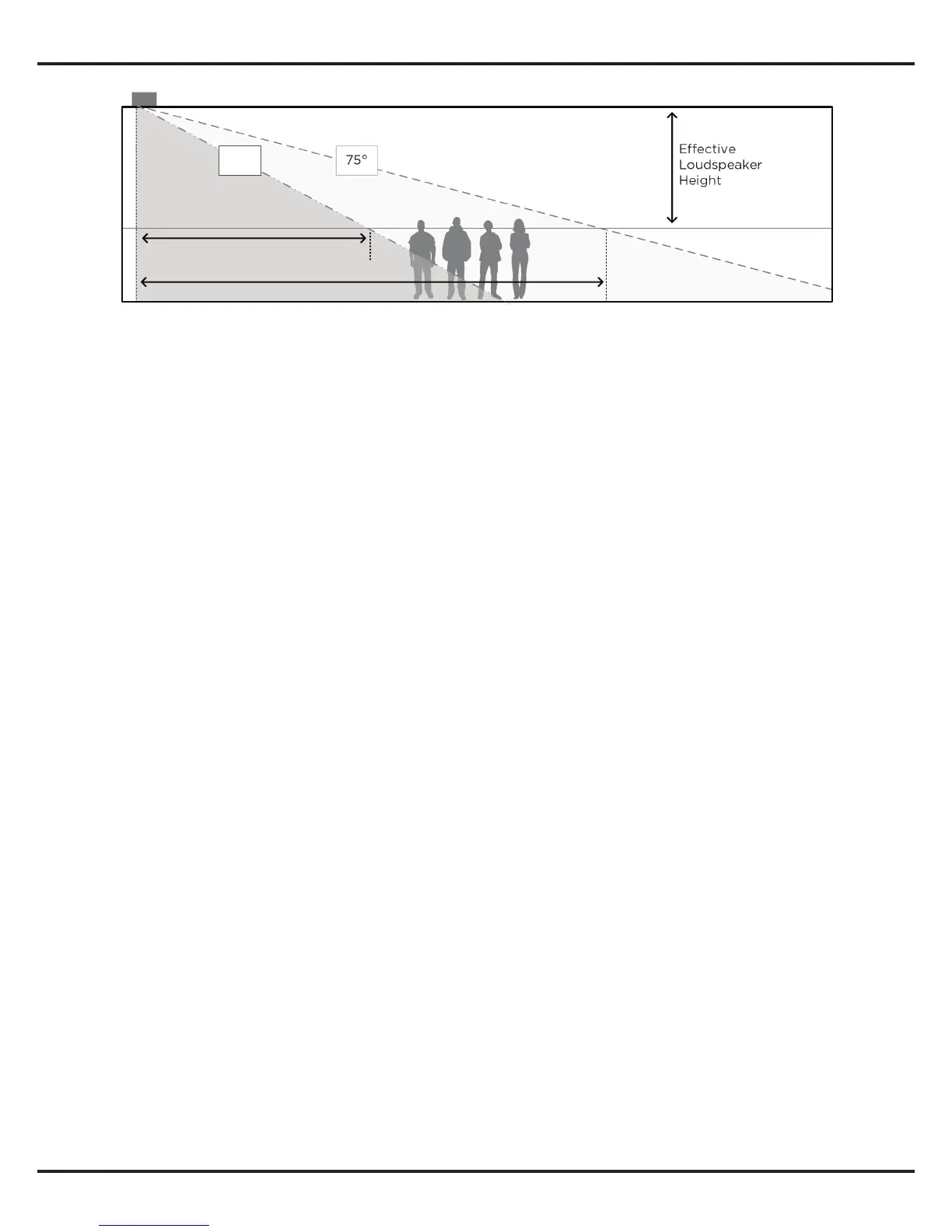

75
°
4.2 m | 14 ft ceiling
1.5 m | 5 ft ear height
Premium Coverage
(nominal -6 dB)
Standard Coverage (nominal -10 dB)
62°

Bose EdgeMax EM90 Specifications

General

Product color	White
Recommended usage	-
Woofer	Yes
Number of drivers	1
Speaker placement	In-wall/in-ceiling
Audio output channels	- channels
Woofer diameter (imperial)	8 \
Impedance	8 Ω
Sensitivity	96 dB
Frequency range	45 - 20000 Hz
RMS rated power	125 W
Peak Music Power Output (PMPO)	500 W
Connectivity technology	Wired
Speaker width	339 mm
Speaker height	249 mm

Weight and Dimensions

Width	390 mm
Height	13 mm
Weight	10100 g
