1. Cover the front fender.

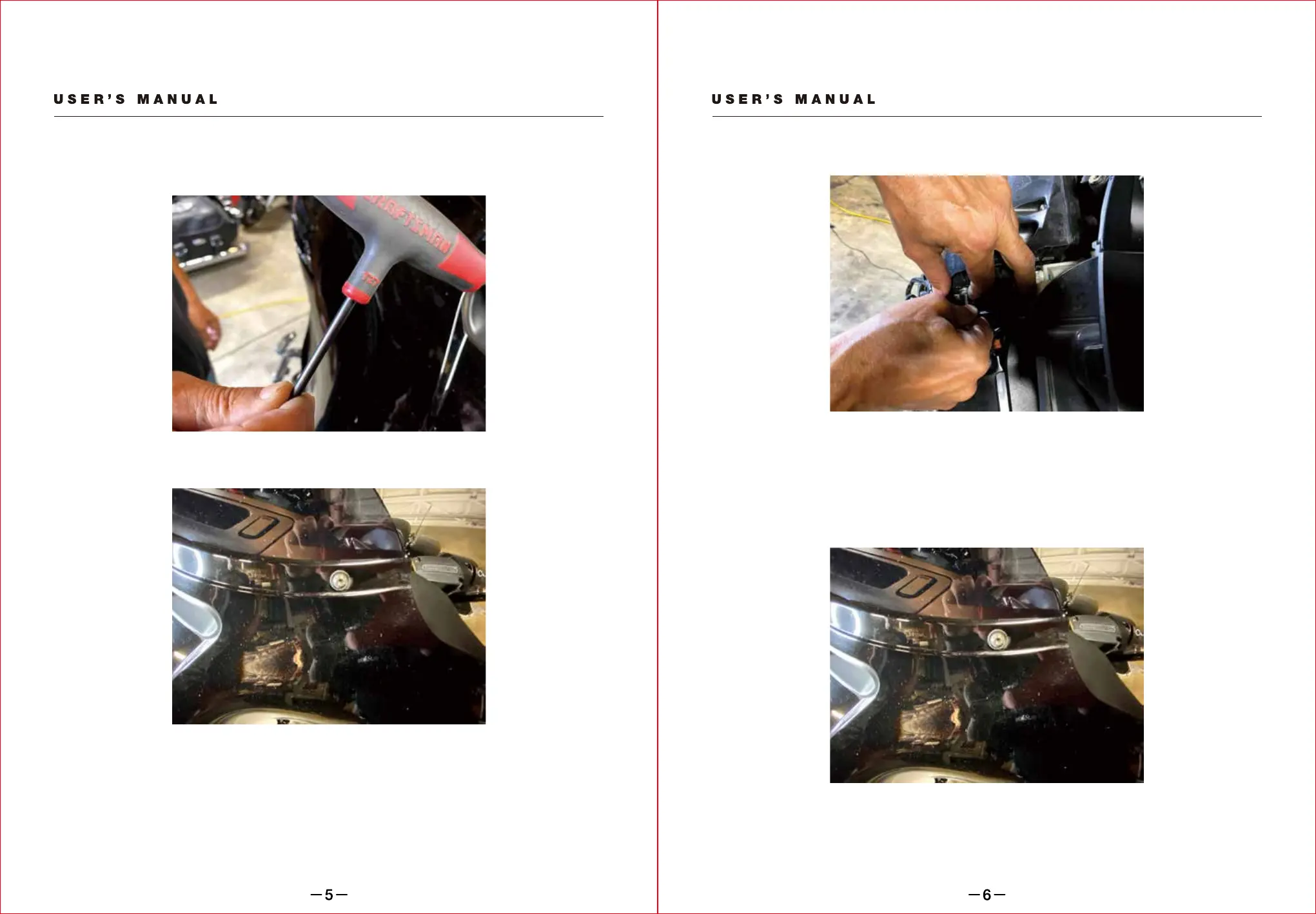

2. Remove (2) T-27 Torx bolts from inner fairing (under mirrors)
1. Cover the front fender.
2. Remove (2) T-27 Torx bolts from inner fairing (under mirrors)
2014 – 2020 Street Glide / Batwing models:
1998 – 2013 Road glide / Shark nose models:
Note: Windshield and fairing will be loose once these screws are removed. Use extreme caution not to
damage fairing or windshield. Lift away and unplug headlight to remove outer fairing.
5. Remove windshield taking caution that the outer fairing is loose.
6. Lift away and unplug headlight to remove outer fairing.
7. Remove the remaining speaker screws and the speaker. Continue to kit assembly Loosen (6) T-25
Torx bolts from bottom, middle and top of left and right sides of the inner fairing.
1. Loosen (6) T-25 Torx bolts from bottom, middle and top of left and right sides of the inner fairing.
BHD3F
Harley Davidson Front System
BHD3F
Harley Davidson Front System
