5cm Clearance
Full Open
12
09
Assembly 03
11

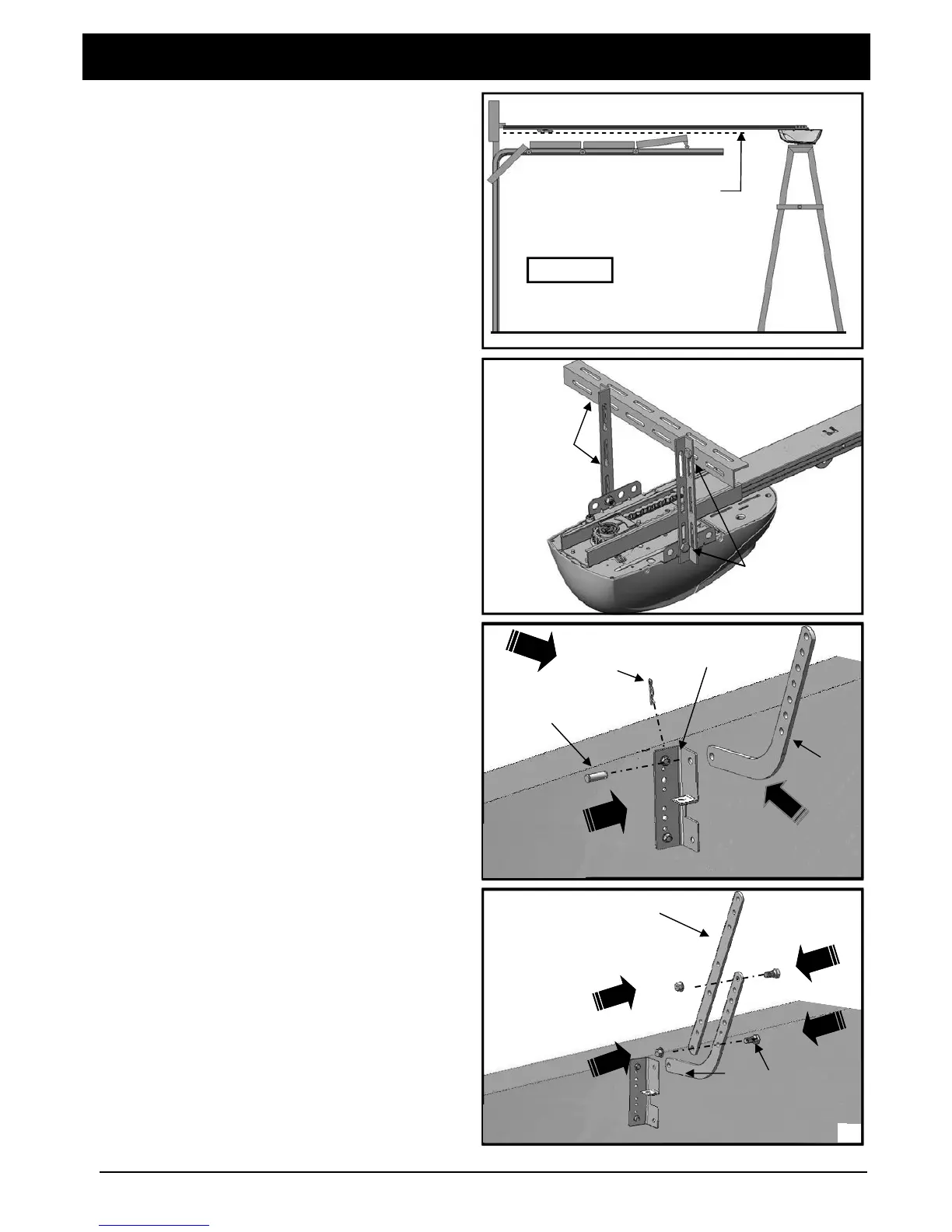

STEP 9.
Open the door to the full open position. Allow 5cm of
space between the rail and the door
STEP 10.
Assemble track to fix the opener (perforated steel angle
and hex head machine bolts not supplied)
STEP 11.
Insert curved arm into door bracket using clevis pin short.
STEP 12.
Connect straight arm and curved arm and adjust to the
required length. Fix it with hex bolts and flange nuts.
7
10
Perforated Steel
Angel (Not
Supplied)
Hex Head
Machine Bolts
(Not Supplied)
1
3
2
Door Bracket
Curved
Clevis Pin Short
Hitch Pin
1
2
2
Straight
Flange Nut 5/16”-18
Hex Bolt
5/16”-18x1
15-20°
1
To Next Page
