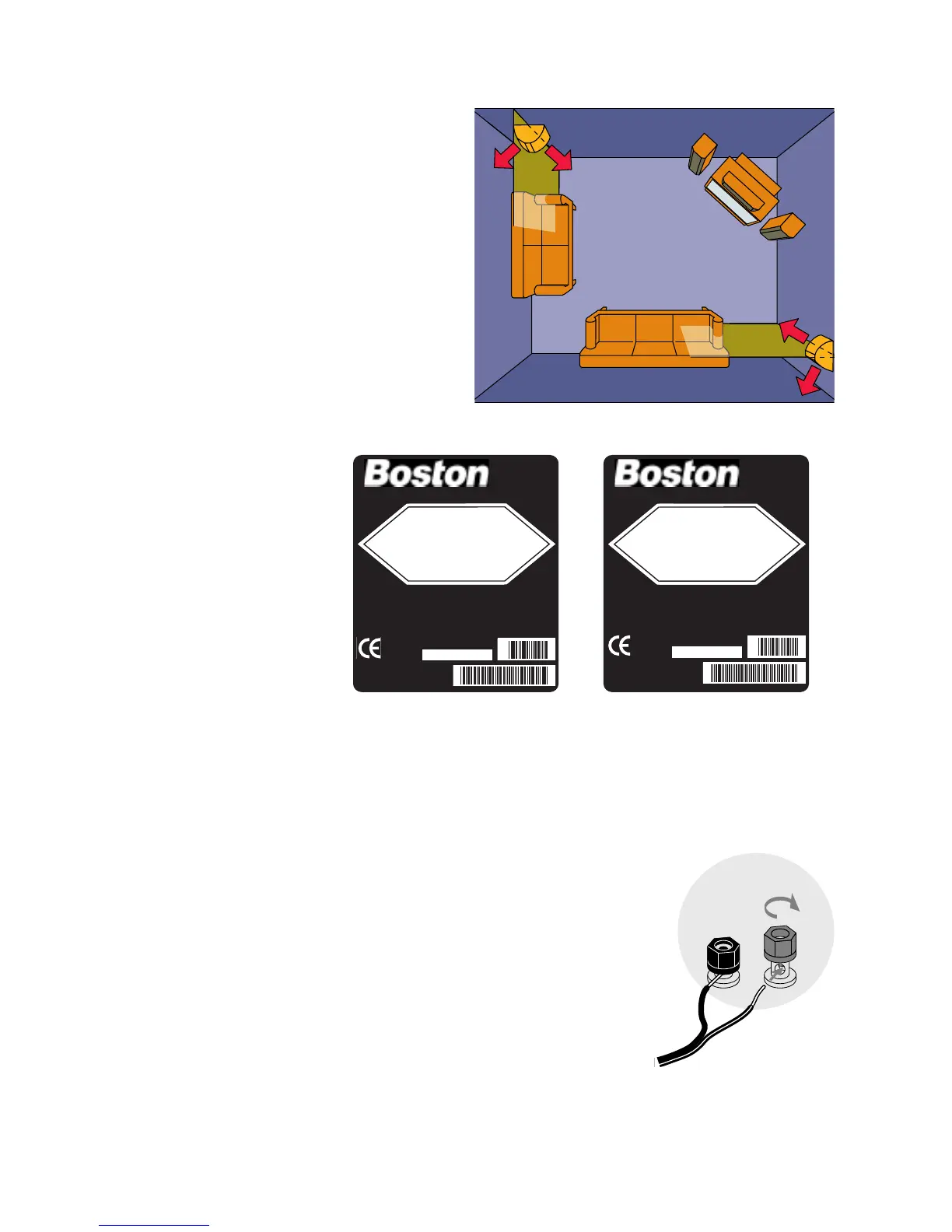

SOUND RADIATION
ORIENTATION LABELS
These labels are located on
the rear of each VRX.
Note that the speakers are
configured as mirror imaged
pairs.
IMPORTANT: Your speakers have been
packed as a DIRECT or DIFFUSE matched
set. Make sure that each speaker is mount-
ed on the desired side, with the active bass
driver pointing to the listening area for a
DIRECT sound field or the passive bass dri-
ver pointing to the listening area for a DIF-
FUSE sound field. The end result is that the
DIRECT and DIFFUSE arrows on the back of
each speaker will be pointing in the same
direction on either side of the room.
Note: If the viewing area is in a corner, the speakers may be placed to either side on adjacent walls.
Connect the speaker’s terminals to those on the amplifier or
receiver designated for “surround” or “rear channel effects.”
Maintain consistency of the + (red) and – (black) connections
by using the markings on the wire. Connect the ribbed side to
the
+ (red) terminals and the smooth side to the – (black) termi-
nals.
WARNING: To prevent electrical shock, always switch off the
amplifier or receiver when making connections to the speaker.
Using the five-way binding posts: The binding posts permit
easy connection to pins, spade lugs, bare wire and cable
banana plugs. The metal surfaces are gold plated to resist
corrosion.
NOTE: Most dual banana plugs will not fit behind a
flush wall mount installation, however single wire banana plugs
should fit.
Connecting Your VRX Speakers
