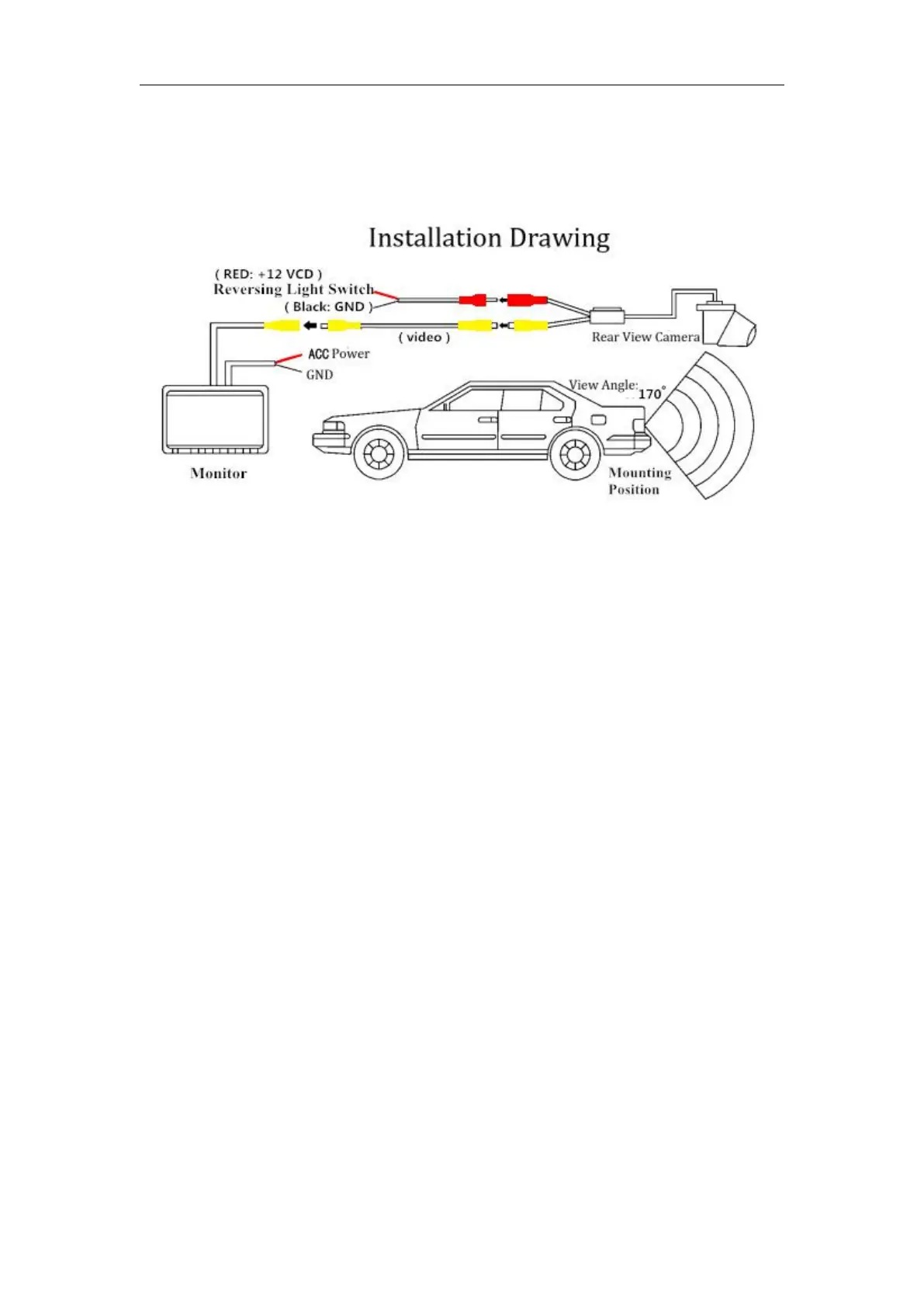

Ⅱ. Installation Instructions
1) Find a suitable location to mount the camera so its view is
unobstructed.
2) Connect the RED wire to either a +12 volt accessory wire (if you want
the camera to come on with the ignition) or to the +12 volt reverse wire
(if you want the camera to come on only when the vehicle is in reverse).
3) Connect the BLACK wire to ground.
4) Run the video output of the camera to the video input/reverse camera
input of the video screen.
5) Once all connections have been made and before mounting the
camera, make sure the camera comes on and you have a good view of
the area.
6) Since the camera is verified working, mount the camera down with
two screws.
