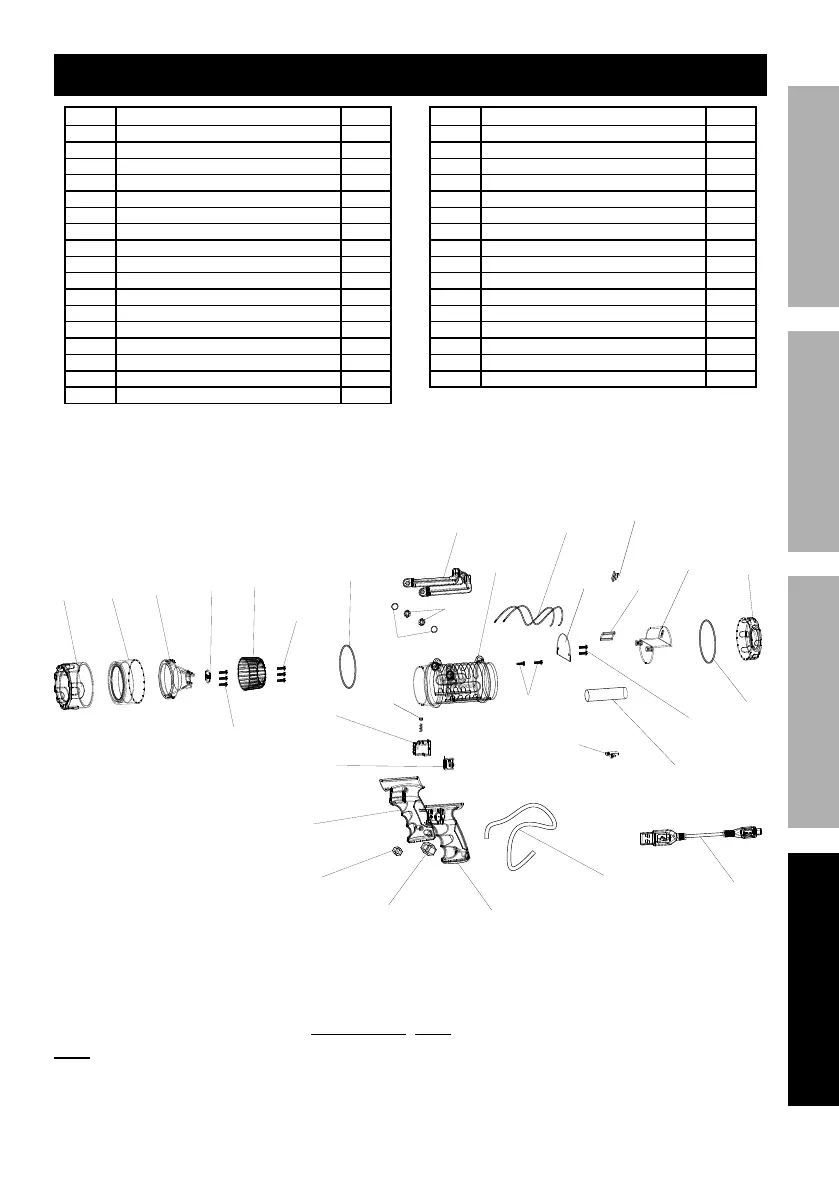

Braun 64757 - Parts List and Diagram

Page 7;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 64757
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
J,($#%R"#$%,89%V",3(,5
J,($ V*#4("/$"&8 e$T
1 Lens Cover 1
2 Lens 1
3 Light Bowl 1
4 SMD LED 1
5 Light Bowl Housing 1
6 Seal Ring, Ø 60 x 2.4 1
7 Gear 2
8 O-Ring 2
9 Hanger 1
10 Main Housing 1
11 Internal Wiring 1
12 USB Bracket 1
13 PCB 1
14 USB PCB 1
15 Rear Housing 1
16 Rear Cover 1
17 Screw, M3 x 8 2
J,($ V*#4("/$"&8 e$T
18 Trigger 1
19 Lock Switch 1
20 Hand Grip, Right 1
21 Insert, Small 1
22 Insert, Large 1
23 Hand Grip, Left 1
24 Wrist Strap 1
25 USB Cable 1
26 Housing 1
27 Battery, Li-Ion 3.7V, 2200 mAh 1
28 Spring, Ø 0.7 x 33 1
29 Seal Ring, Ø 46 x 2.4 1
30 Screw, M2.5 x 8 3
31 Screw, M1.8 x 6 2
32 Magnet 1
33 Screw, M2.3 x 8 3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
2322
21
20
19
24
25
26
27
28
29
30
31
32
33
K*4&(9%J(&9'4$f#%E*(",7%M'5+*(%[*(*-%
M&$*-%L2%/(&9'4$%.,#%8&%#*(",7%8'5+*(=%(*4&(9%
5&8$.%,89%T*,(%&2%/'(4.,#*%"8#$*,91
M&$*- Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
