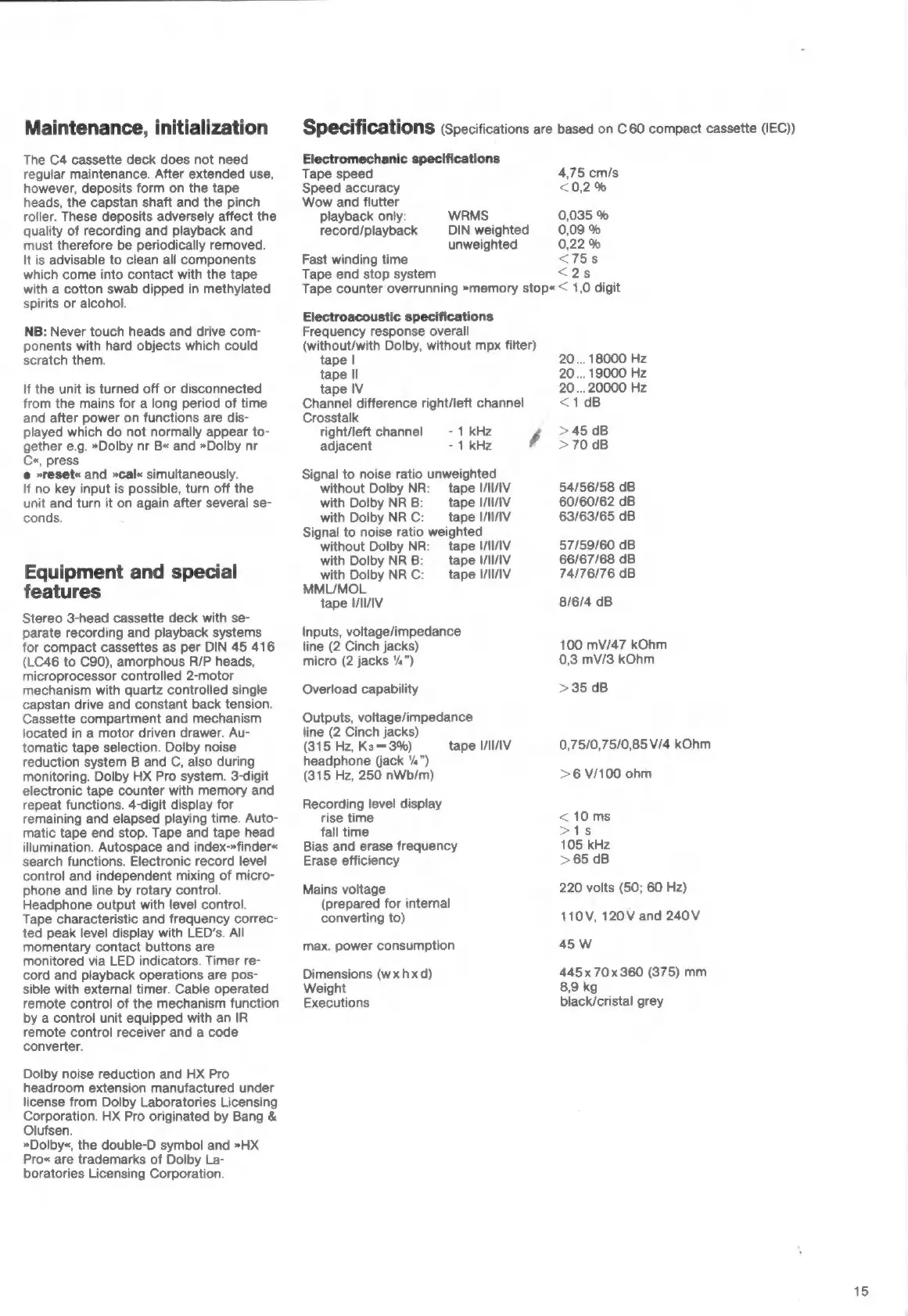

Braun C4 - Page 15

Maintenance, initialization
The C4 cassette deck does not need
regular maintenance. After extended use,
however, deposits form on the tape
heads, the capstan shaft and the pinch
roller. These deposits adversely affect the
quality of recording and playback and
must therefore be periodically removed.
It is advisable to clean all components
which come into contact with the tape
with a cotton swab dipped in methylated
spirits or alcohol.
NB: Never touch heads and drive com-
ponents with hard objects which could
scratch them.
If the unit is turned off or disconnected
from the mains for a long period of time
and after power on functions are dis-
played which do not normally appear to-
gether e.g. »Dolby nr B« and »Dolby nr
C«, press
è »reset« and »cal« simultaneously.
If no key input is possible, turn off the
unit and turn it on again after several se-
conds.
Equipment and special
features
Stereo 3-head cassette deck with se-
parate recording and playback systems
for compact cassettes as per DIN 45 416
(LC46 to C90), amorphous R/P heads,
microprocessor controlled 2-motor
mechanism with quartz controlled single
capstan drive and constant back tension.
Cassette compartment and mechanism
located in a motor driven drawer. Au-
tomatic tape selection. Dolby noise
reduction system B and C, also during
monitoring. Dolby HX Pro system. 3-digit
electronic tape counter with memory and
repeat functions. 4-digit display for
remaining and elapsed playing time. Auto-
matic tape end stop. Tape and tape head
illumination. Autospace and index-»finder«
search functions. Electronic record level
control and independent mixing of micro-
phone and line by rotary control.
Headphone output with level control.
Tape characteristic and frequency correc-
ted peak level display with LED’s. All
momentary contact buttons are
monitored via LED indicators. Timer re-
cord and playback operations are pos-
sible with external timer. Cable operated
remote control of the mechanism function
by a control unit equipped with an IR
remote control receiver and a code
converter.
Dolby noise reduction and HX Pro
headroom extension manufactured under
license from Dolby Laboratories Licensing
Corporation. HX Pro originated by Bang &
Olufsen.
»Dolby«, the double-D symbol and »HX
Pro« are trademarks of Dolby La-
boratories Licensing Corporation.
Specifications (Specifications are
Electromechanic specifications
Tape speed
Speed accuracy
Wow and flutter
playback only: WRMS
record/playback DIN weighted
unweighted
Fast winding time
Tape end stop system
Tape counter overrunning »memory stop«
Electroacoustic specifications
Frequency response overall
(without/with Dolby, without mpx filter)
tape |
tape Il
tape IV
Channel difference right/left channel
Crosstalk
right/left channel
- 1 kHz
adjacent
f
- 1 kHz
Signal to noise ratio unweighted
without Dolby NR: tape I/II/IV
with Dolby NR B: tape I/II/IV
with Dolby NRC: tape I/II/IV
Signal to noise ratio weighted
without Dolby NR: tape III/IV
with Dolby NR B: tape III/IV
with Dolby NR C: tape III/IV
MML/MOL
tape III/IV
Inputs, voltage/impedance
line (2 Cinch jacks)
micro (2 jacks %”)
Overload capability
Outputs, voltage/impedance
line (2 Cinch jacks)
(315 Hz, Ks = 3%)
headphone (jack 1⁄4”)
(315 Hz, 250 nWb/m)
tape III/IV
Recording level display
rise time
fall time
Bias and erase frequency
Erase efficiency
Mains voltage
(prepared for internal
converting to)
max. power consumption
Dimensions (wx hx d)
Weight
Executions
based on C60 compact cassette (IEC))
4,75 cm/s
<0,2 %
0,035 %
0,09 %
0,22 %
<75s
<2s
< 1,0 digit
20... 18000 Hz
20... 19000 Hz
20... 20000 Hz
<1 dB
> 45 dB
> 70 dB
54/56/58 dB
60/60/62 dB
63/63/65 dB
57/59/60 dB
66/67/68 dB
74/76/76 dB
8/6/4 dB
100 mV/47 kOhm
0,3 mV/3 kOhm
>35 dB
0,75/0,75/0,85 V/4 kOhm
>6 V/100 ohm
<10 ms
>1s
105 kHz
>65 dB
220 volts (50; 60 Hz)
110V, 120V and 240V
45W
445 x 70x 360 (375) mm
8,9 kg
black/cristal grey
