2022 Owner’s Manual Eagle 8 BRIG ltd
11
MAIN DIMENSIONS.

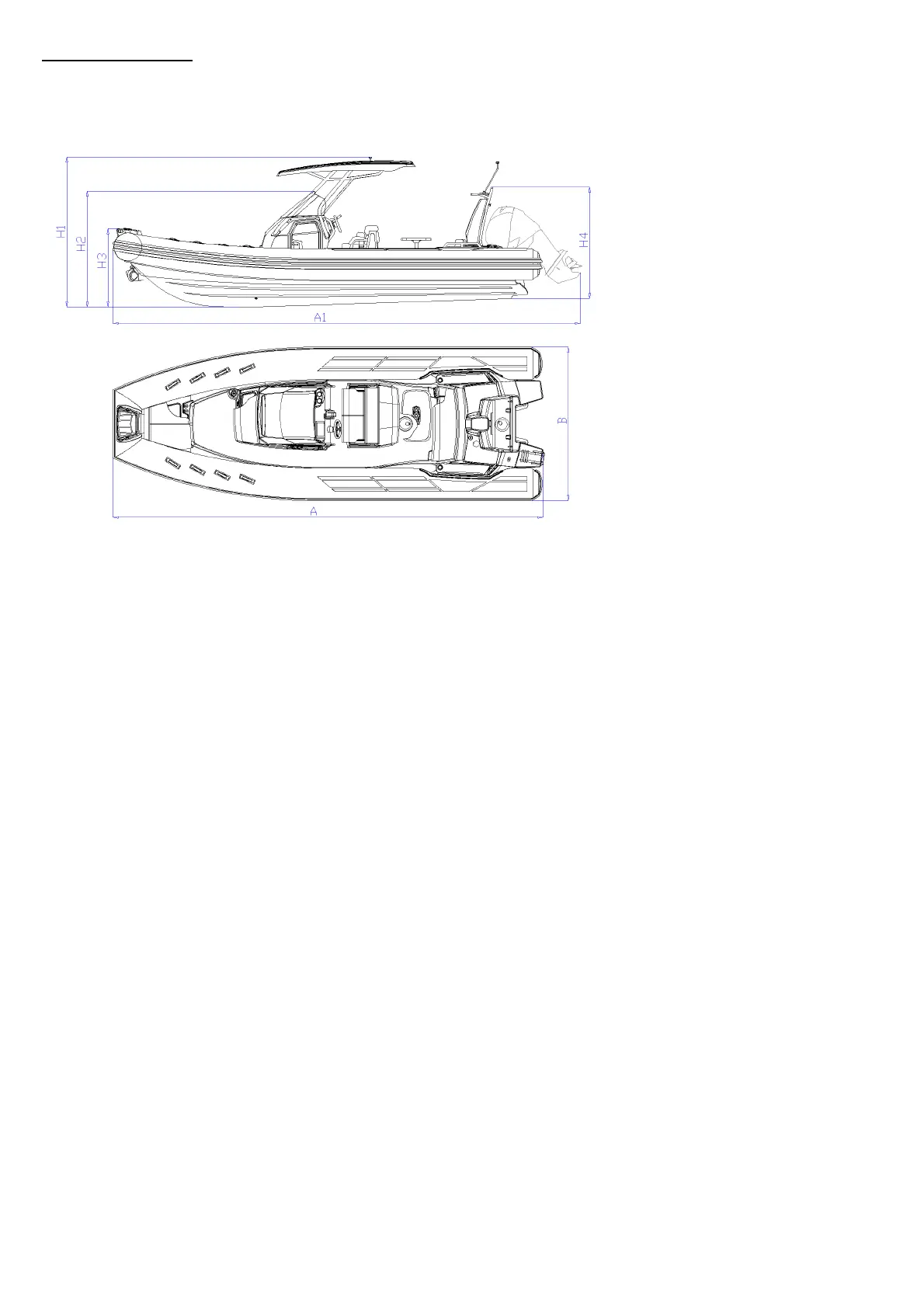

The dimensions of the Eagle 8 comply with the data specified in the Fig.1.
All dimension measurements indicated have a tolerance of ±3%.
The length of the boat with the motor is shown conditionally. It can vary depending on the angle of the motor deflection.
Length (without engine): A – 7.98m
Length (with engine): A1 – 8.7m
Beam: B – 2.9m
Max.height with T-Top: H1 – 2.78m
Max.height with console: H2 – 2.2m
Max.height with tube: H3 – 1.47m
Max.height with arch: H4 – 2.1m
Fig.1
