BRIG Eagle 8 - Page 20

2022 Owner’s Manual Eagle 8 BRIG ltd
20
STEERING CONSOLE .

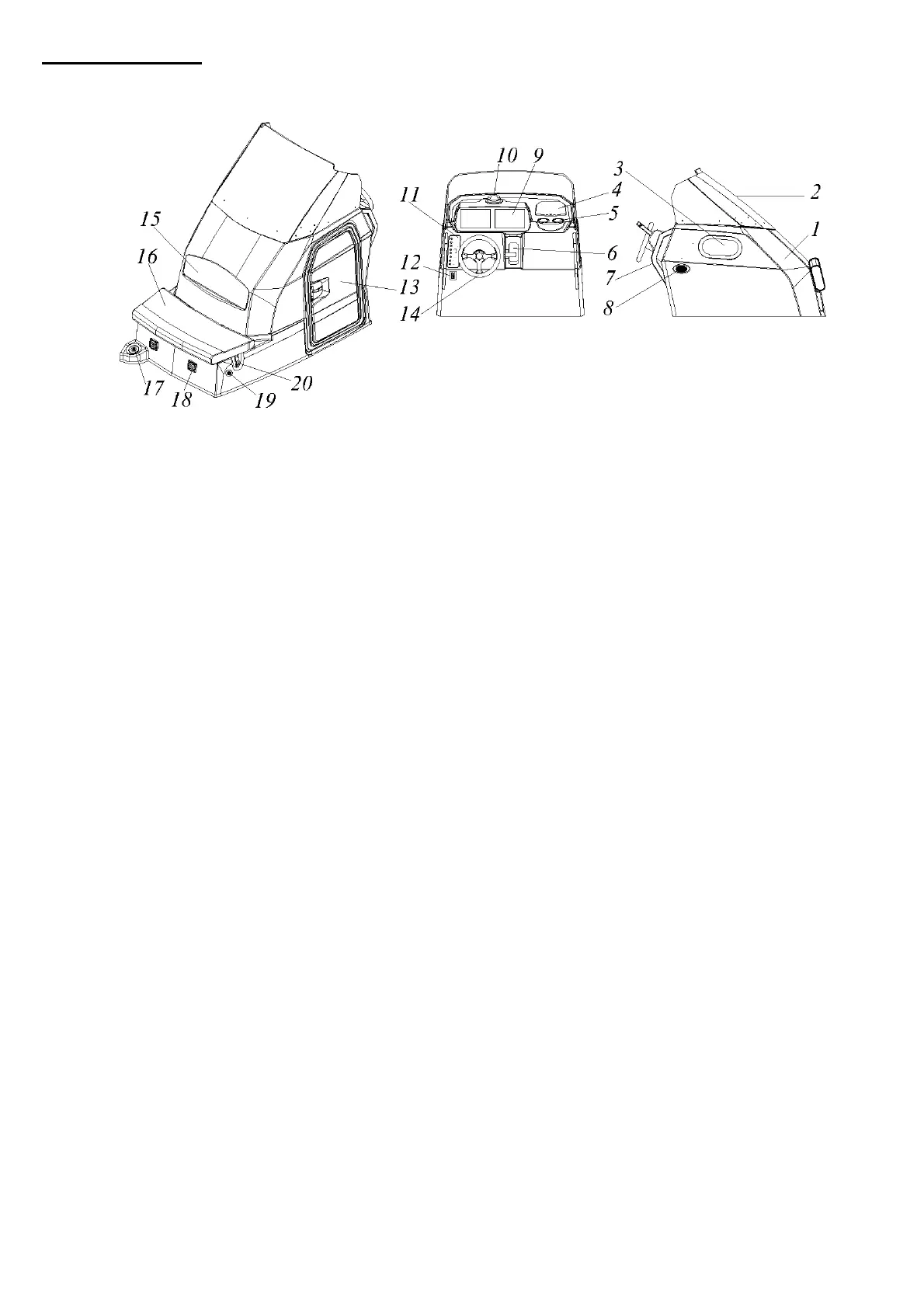

You can see the main components of the steering console in Fig.5
Fig.5
1- console body
2- windscreen
3- portlight
4- glove box with 12V socket and USB
5- glass holders
6- engine remote control
7- handrail
8- electric horn
9- black acrylic dashboard
10- compass
11- panel with switches
12- windlass control switch
13- cabin door
14- steering wheel
15- soft backrest
16- soft seat with locker / ice bag
17- outlet for emptying wastewater tank
18- ventilation hole
19- inlet ventilation of the waste water tank
20- seat lock
