BRIG Eagle 8 - FUEL SYSTEM

2022 Owner’s Manual Eagle 8 BRIG ltd
24
FUEL SYSTEM .

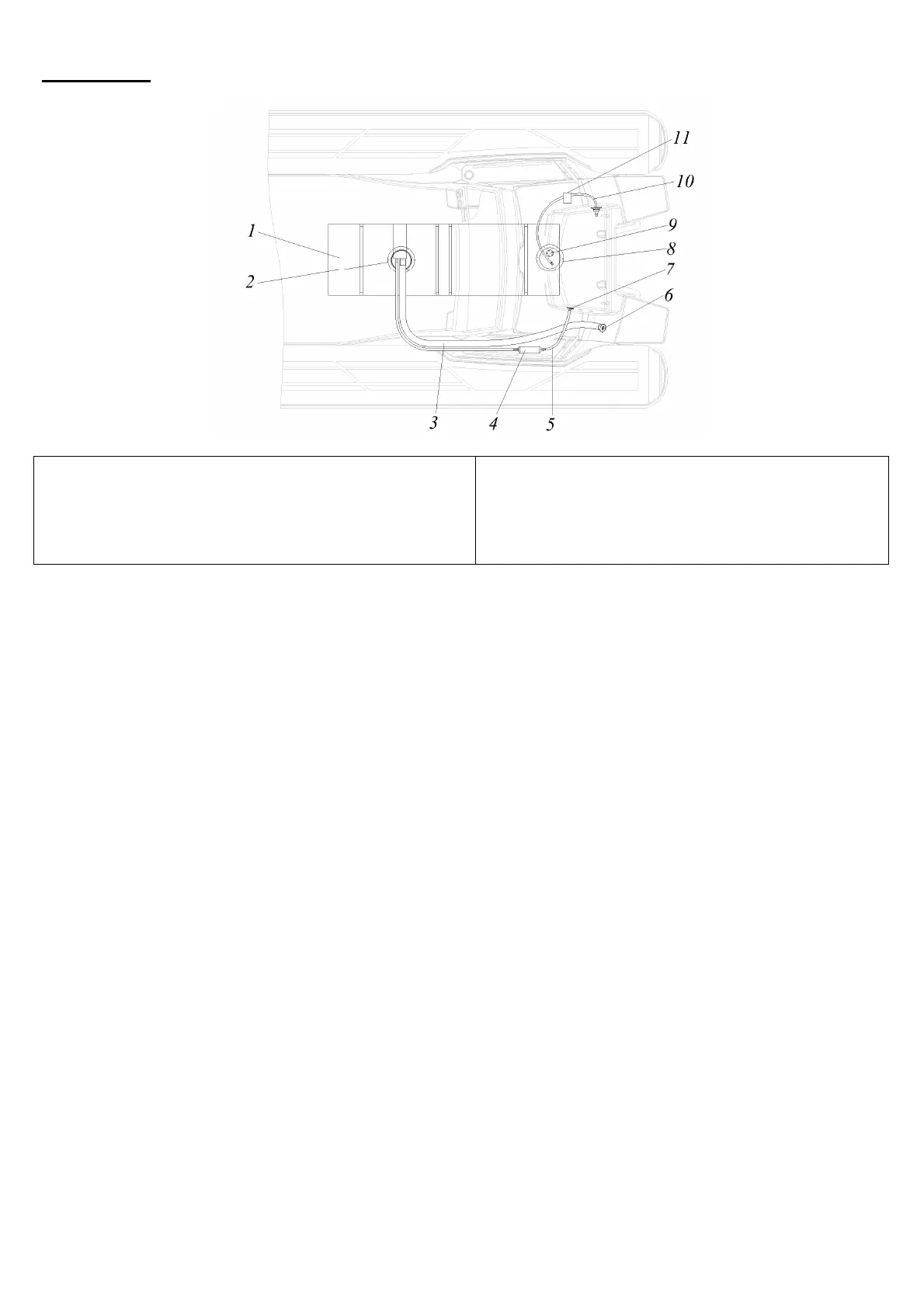

You can see the main components of the fuel system in Fig.7
Fig.7
1 – built-in fuel tank 340L (89gal)
2 – inspection hatch (on the deck)
3 – refueling hose with inner Ø38mm (1 1/2")
4 – carbon canister
5 – fuel tank venting hose with inner Ø16mm (5/8")
6 – outer neck for fuel fill
7 – branch pipe of the fuel tank ventilation
8 – inspection hatch (in the rear compartment)
9 – fuel level sensor (length 230mm (9“))
10 – fuel feed hose with inner Ø9.5mm (3/8") (from fuel
tank to outboard engine)
11 – fuel filter
