DRAIN SYSTEM
.
You can see the main components of the drain system in Fig.8.
The drain system, located inside the rear compartment, consists of two independent systems:
— cockpit drain system (Pos. 1,3,4,10);
— bilge drain system (Pos. 5,6,7,9).

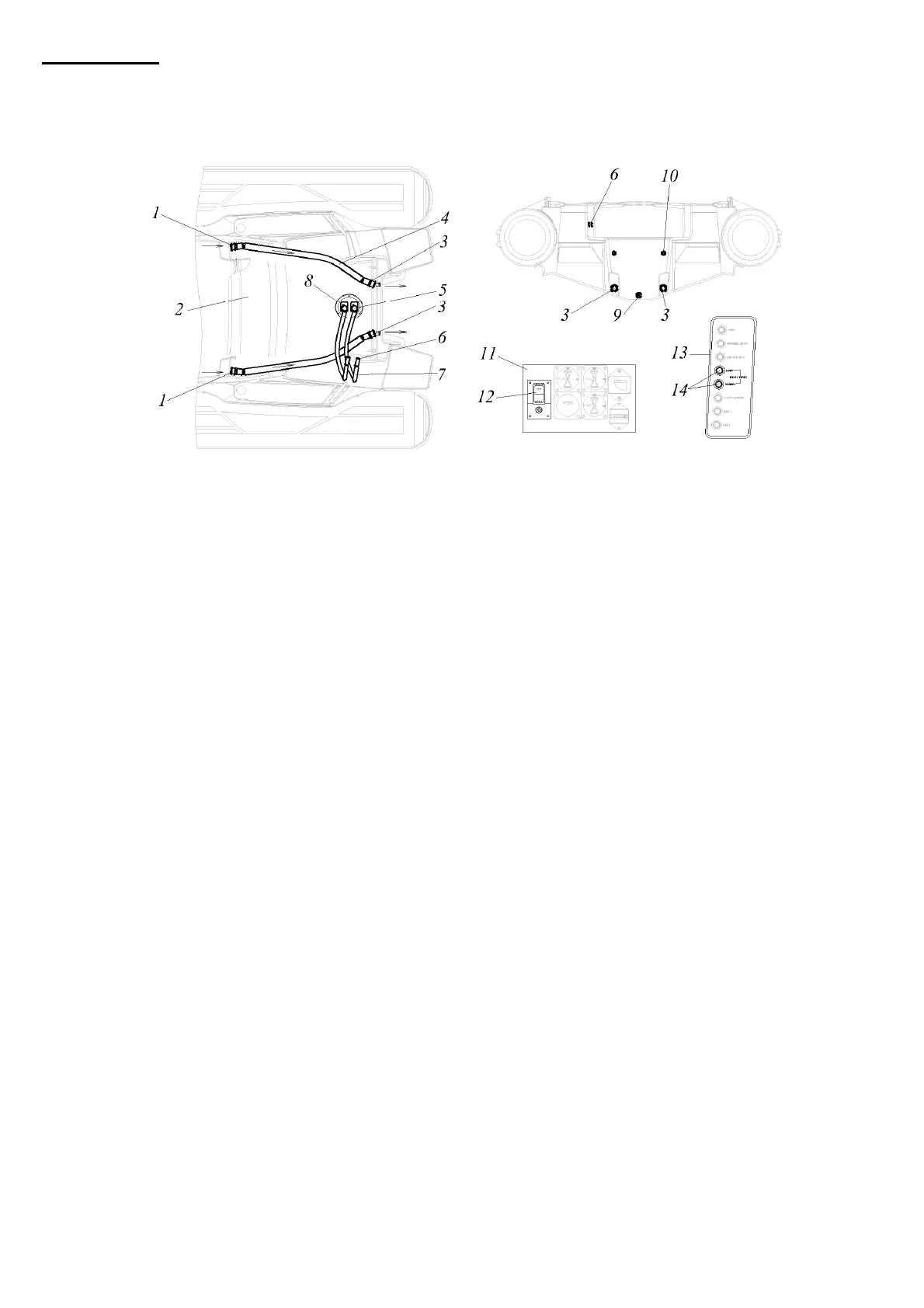

Fig.8
1- cockpit drain sockets
2- stern seat
3- stern drain sockets with flexible
diaphragm
4- drain hoses (inner Ø51mm (2”))
5- bilge pump 1 and bilge pump 2
6- bilge pumps outlet branch pipes
7- drain hoses of bilge pumps (inner
Ø30mm (1 3/16”))
8- inspection hatch
9- drain plug
10- drain pipe
11- main switch panel
12- bilge pump 2 control switch
13- console switch panel
14- bilge pump 1 control switches
