2022 Owner’s Manual Eagle 8 BRIG ltd
53
The load on the ladder is limited to 150kg (330lb). Make sure that only one person is using the ladder at a time.
The load on the each stern platform is limited to 150kg (330lb).
Make sure there is only one person on each platform at a
time.
Check the ladder hardware periodically. There should be no damage or corrosion. Replace hardware and lubricate hinges
as needed.
BOAT LIFTING.

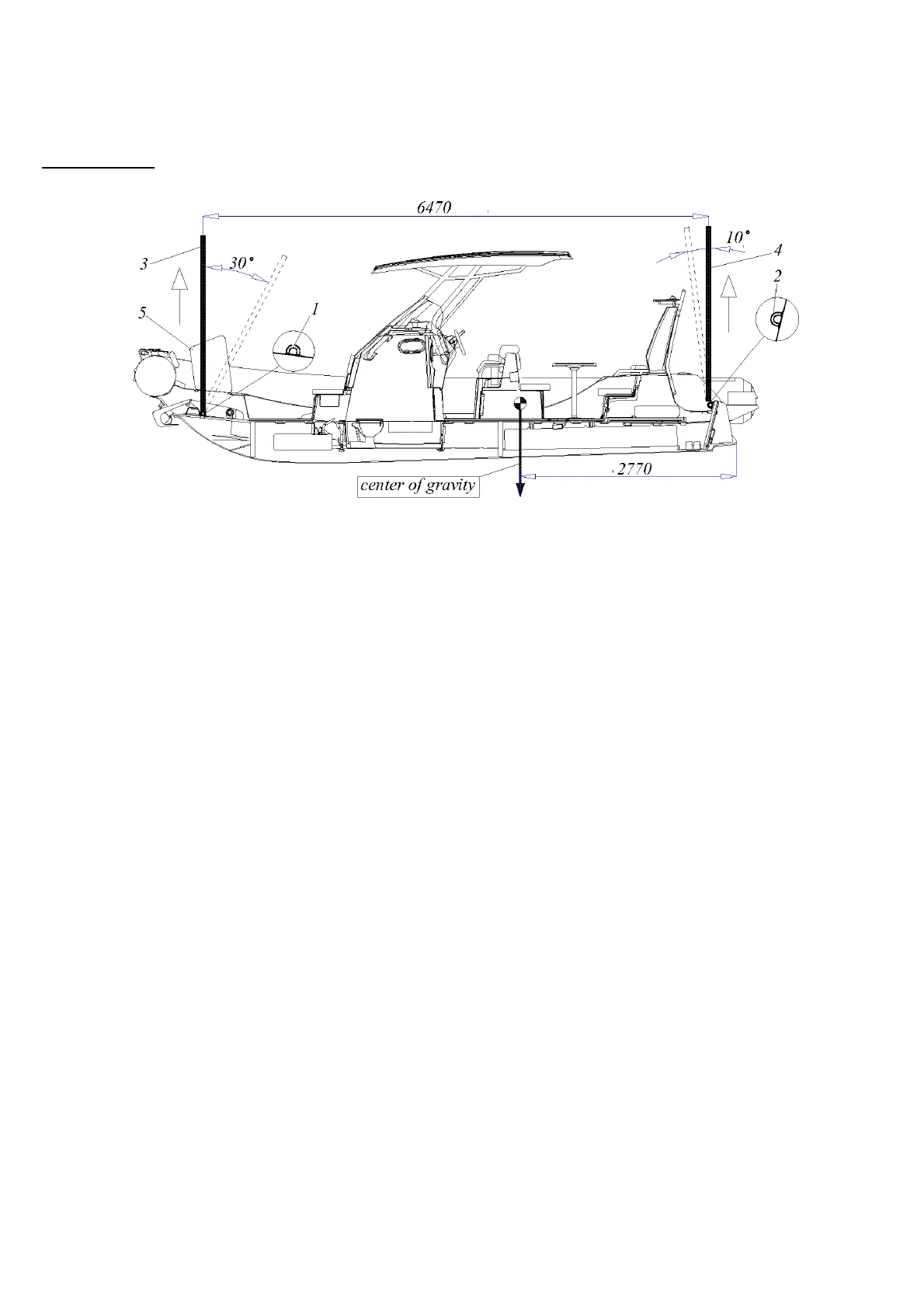

You can see the diagram of the boat slinging for lifting in Fig. 21. Dimensions are in mm.
Fig.21
1 – two bow lifting U-bolts
2 – two aft lifting U-bolts
3 – front lifting slings
4 – stern lifting slings
5 – bow hatch
