2022 Owner’s Manual Eagle 8 BRIG ltd
63
SUN DECK.
To install the sun deck, you need to do the following step by step (Fig. 28):
Step1. Raise the seat in front of the console (1). Lay the base of the sun deck (2) in special recesses in the hull of the
boat. Install the sun deck support (3) into the threaded hole and twist the support well.
Step2. Unfold the sun deck base so that both halves fit into the special recesses in the boat's hull. Make sure the support
(3) reaches the deck of the boat. Lower the seat in front of the console(1) and securely fix it with the lock.
Step3. Put the bow cushions (4). Fix the bow cushions with the snap buttons to the boat hull.
Put the sun deck cushions (5). Fix the sun deck cushions with the snap buttons to the sun deck base.
To fold the sun deck, follow these
steps in reverse.

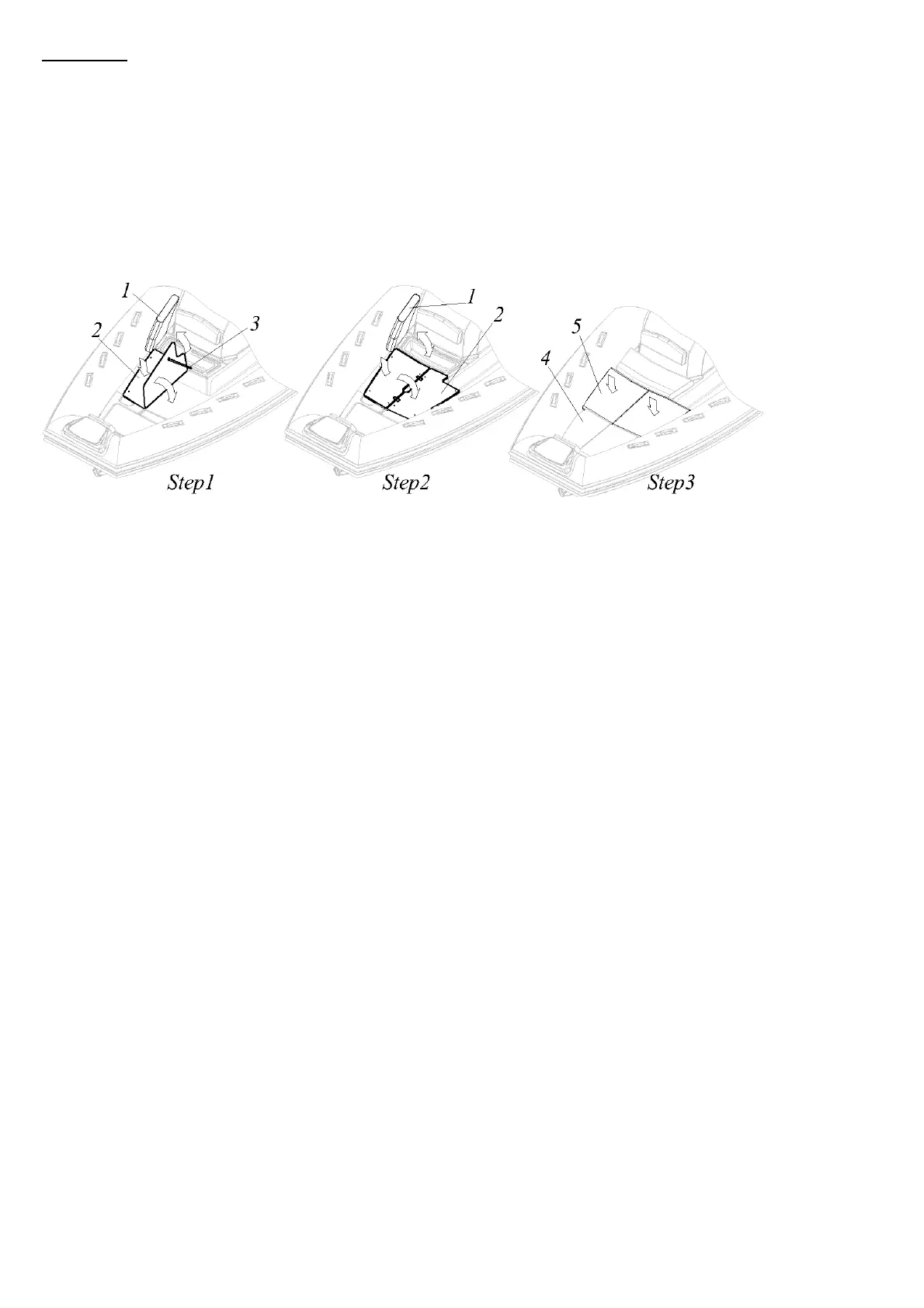

Fig.28
1 – seat in front of the console
2 – sun deck base
3 – sun deck support
4 - bow cushions
5 – sun deck cushions
