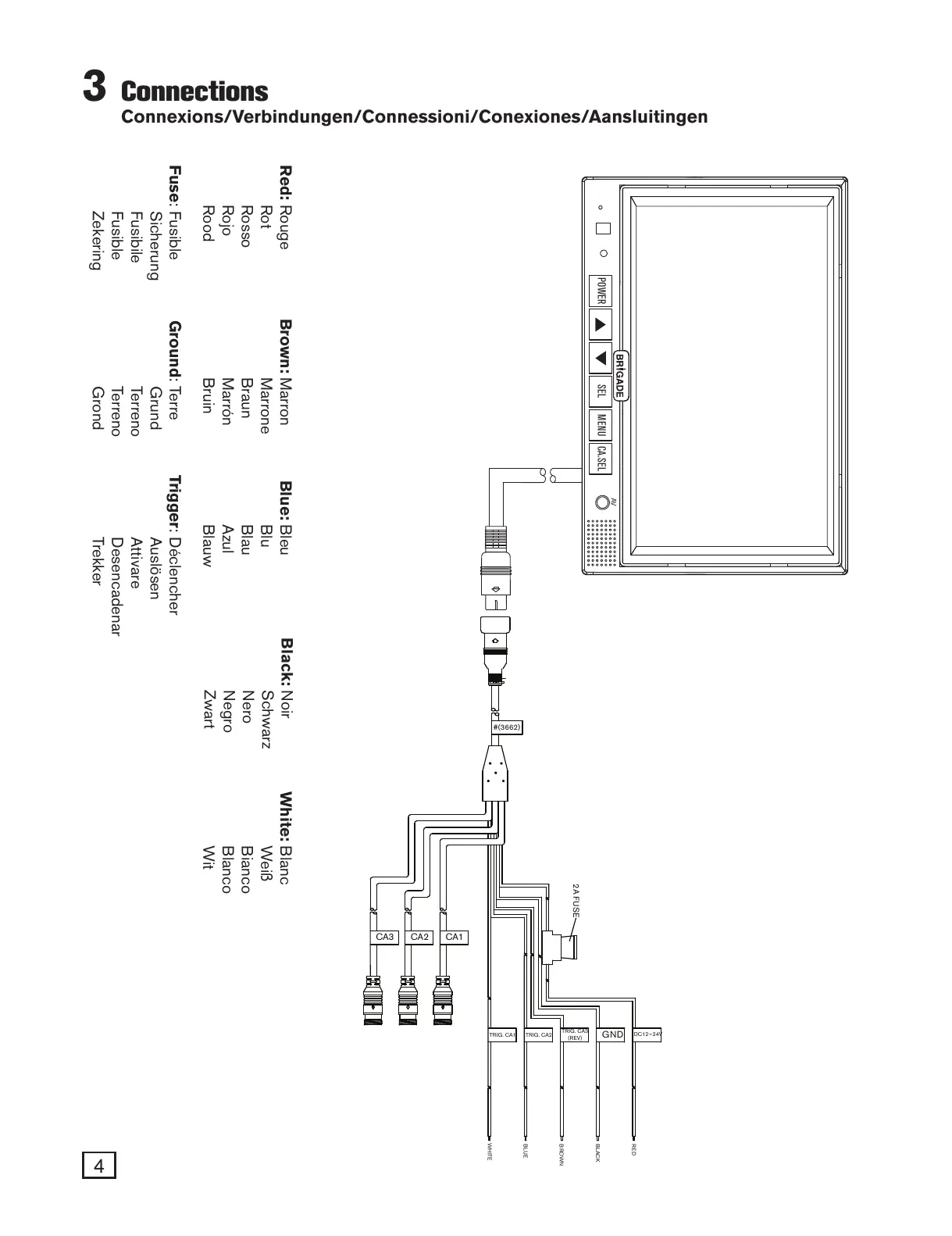

Brigade VBV-770DM-S - Connections

4
Red: Rouge
Rot Rosso Rojo Rood
Brown: Marron
Marrone Braun Marrón Bruin
Blue: Bleu
Blu Blau Azul Blauw
Fuse: Fusible
Sicherung Fusibile Fusible Zekering
Ground: Terre
Grund Terreno Terreno Grond
Trigger: Déclencher
Auslösen Attivare Desencadenar Trekker
White: Blanc
Weiß Bianco Blanco Wit
Black: Noir
Schwarz Nero Negro Zwart
CA1CA2CA3
TRIG. CA2
TRIG. CA3
(REV)
GND
DC12~24V
RED
BLACK
BROWN
TRIG. CA1
BLUE
WHITE
2A FUSE
#(3662)
POWER SEL MENU CA.SEL
AV
3 Connections
Connexions/Verbindungen/Connessioni/Conexiones/Aansluitingen
