Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.

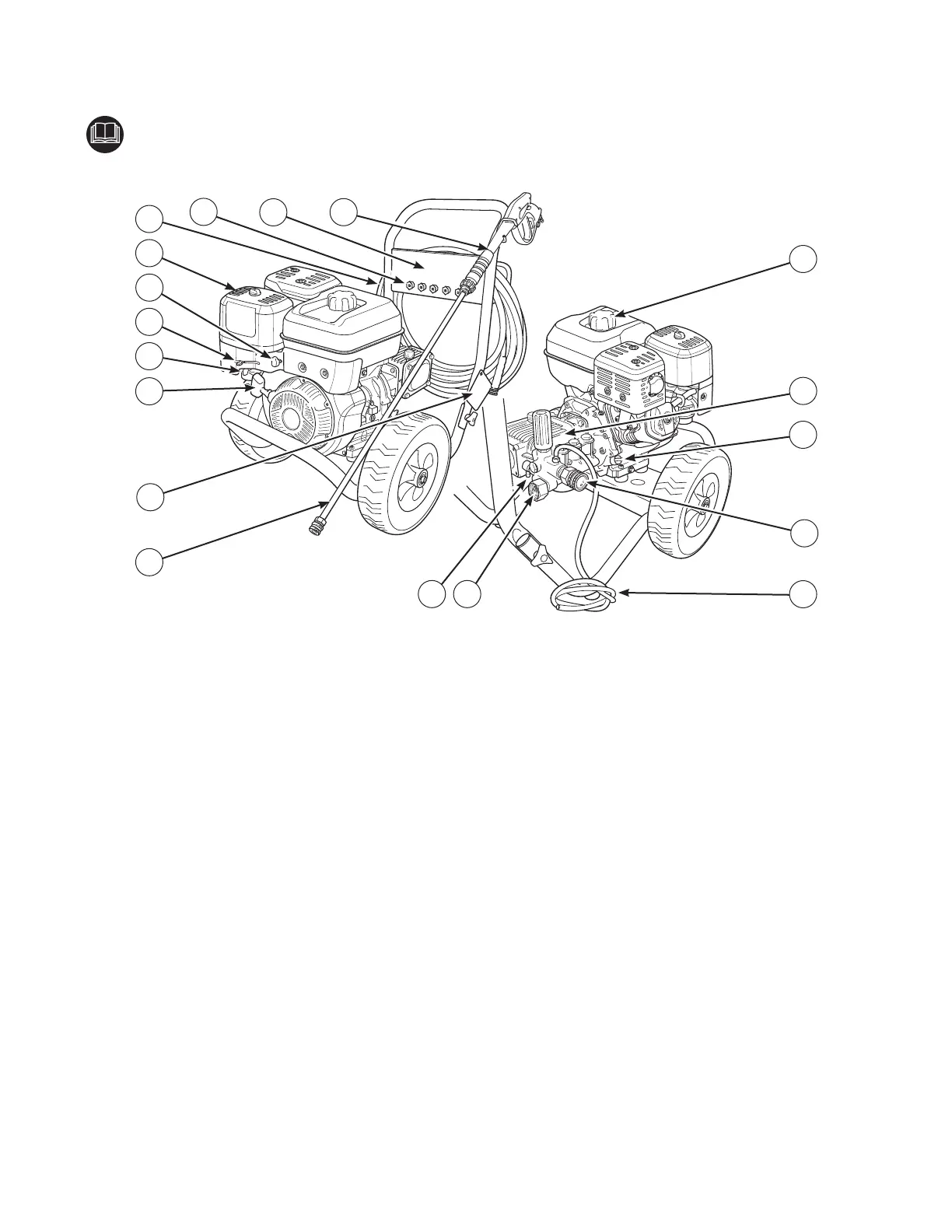

Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
A - Spray Gun — Controls the application of water
onto cleaning surface with trigger device. Includes
trigger lock.
B -
Accessory Tray
— Provides convenient storage
for standard and optional accessories, such as
brushes, turbo wands, etc.
C -
Spray Tips — Detergent, 0°, 15°,
25° and 40°: for
various high pressure cleaning applications.
D -
High Pressure Hose
— Connect one end to water
pump and the other end to spray gun.
E -
Air Filter
— Protects engine by ltering dust and
debris out of intake air.
F -
Throttle Lever — Sets
engine in starting mode for
recoil starter and stops a running engine.
G -
Choke Lever — Prepares
a cold engine for
starting.
H -
Fuel Valve — Used to
turn fuel supply on and o
to engine.
J -
Recoil Starter — Used for starting the engine
manually.
K - Warning/Operating Instructions Tag
—
Identies hazards and proper procedure to start/
stop pressure washer.
M -
Nozzle Extension with Quick Connect — Allows
you
to switch between ve dierent spray tips.
N - Automatic Cool Down System — Cycles water
through pump when water reaches 125°-155°F
(51°-68°C). Warm water will discharge from pump
onto ground. This system prevents internal pump
damage.
P - Water Inlet — Connection for garden hose.
R -
Detergent Siphoning Tube/Filter
— Use to
siphon pressure washer safe detergent into the low
pressure stream.
S -
High Pressure Outlet
— Connection for high
pressure hose.
T -
Oil Fill/Dipstick —
Check and add engine oil here.
U - Pump — Develops high pressure.
V - Fuel Tank — Fill
tank with regular unleaded fuel.
Always leave room for fuel expansion.
Items Not Shown:
Identication Label (near rear of base plate) —
Provides model and serial number of pressure washer.
Please have these readily available if calling for
assistance.
J
A
E
B
K
H
G
F
C
D
M
R
N
P
S
U
T
V
