BRIO 612 - Page 2

x2 x2
x1
x2 x9
x1
x1
x3
Components used for a double screen only
x2
x1,2,3
or 4
INSTSCREEN | Rev | |3 C Feb 2020 2

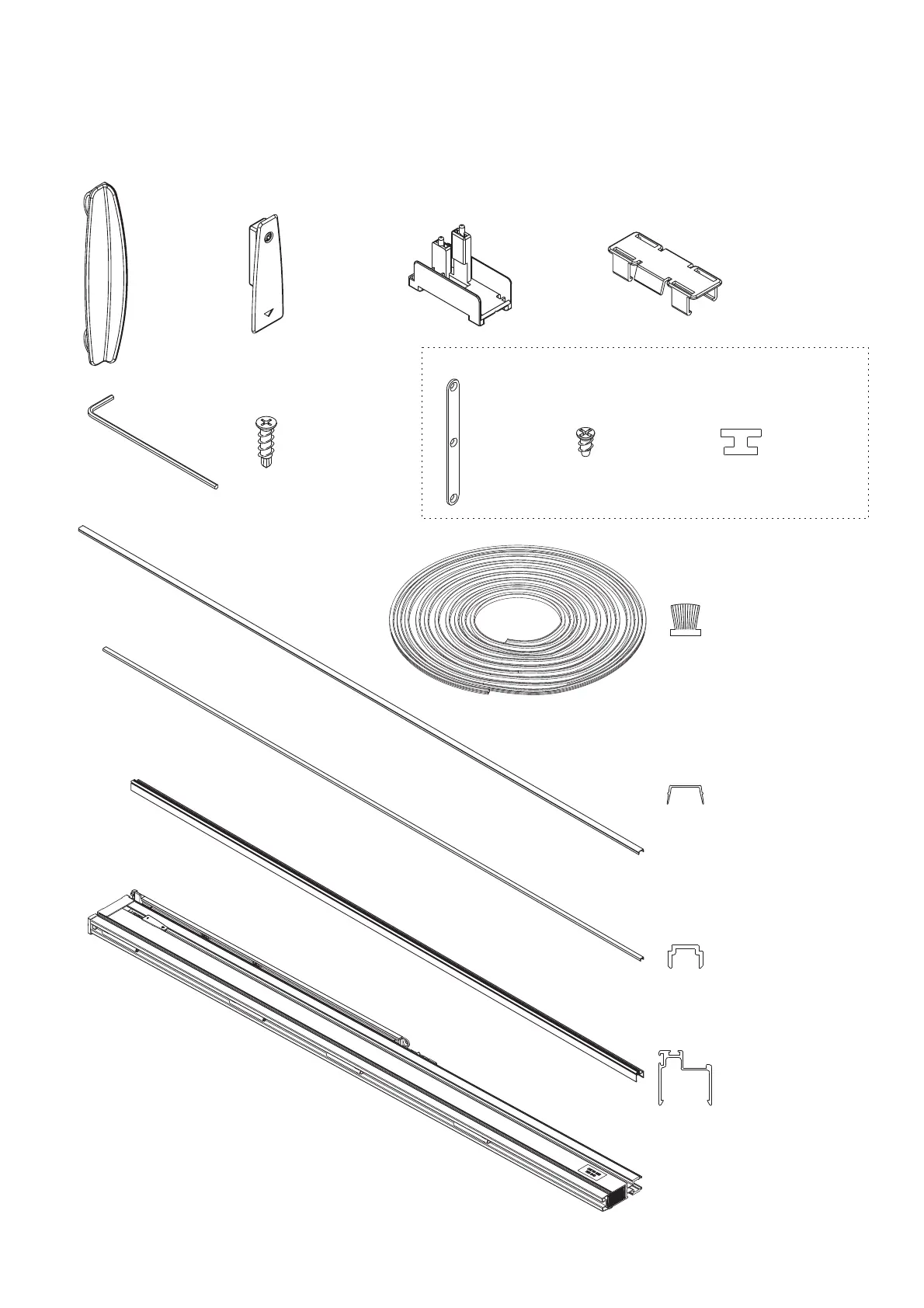

Screen Kit Components
WS-GR-2
HANDLE GRIP
x2
WS-AB-A
ADJUSTMENT
BLOCK ASSEMBLY
WS-CEIN
CASSETTE EXTRUSION
RETAINER CLIP
WS-AK
ALLEN KEY
TEKS-62020CX
20X6-20 CSK
TEK SCREW
SC3GX7S
3G X 7 CSK
SCREW SS
WS-MP
MAGNET
PLATE
WS-MST
MAGNETIC
STRIP
x1
PB48850
BRUSH SEAL
WS-COVEXP
CASSETTE
EXTRUDED
COVER
WS-HDPEX
HANDLEBAR
PLASTIC
EXTRUSION
x1
WS-HD EXCP
HANDLEBAR
COVER
SCREEN
ASSEMBLY
x1
WS-FB-4
FRICTION
BLOCK
