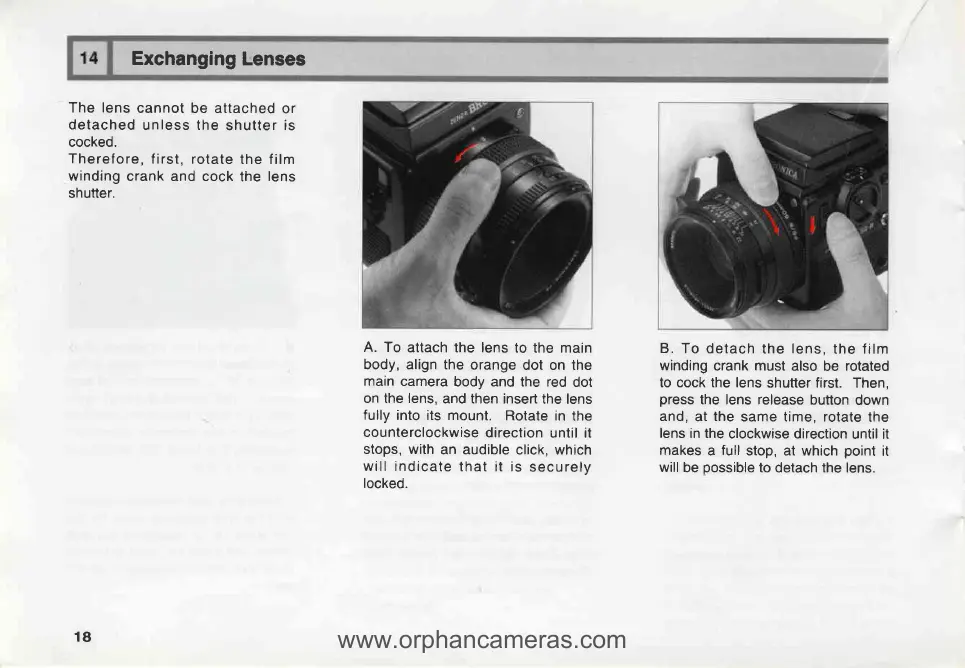

Erchanging
Lenses
The lens
cannot be attached
or
detached
unless the
shutter
is
cocked.
Therefore.
first. rotate
the film
winding
crank and cock
the
lens
shutter.
A. To
attach the lens
to the main
body, align the
orange
dot on the
main
camera
body and the red
dot
on the lens,
and then insert
the lens
fully
into its mount.
Rotate
in the
counterclockwise
direction
until it
stops, with
an audible
click, which
will indicate
that it is
securelv
locked.
B.
To detach
the
lens,
the film
winding
crank must also
be
rotated
to cock the lens
shutter first. Then,
press
the lens release
button
down
and,
at
the
same time, rotate
the
lens in the
clockwise direction
until it
makes
a
full
stop, at which
point
it
will
be
oossible
to detach the lens.
18
www.orphancameras.com
