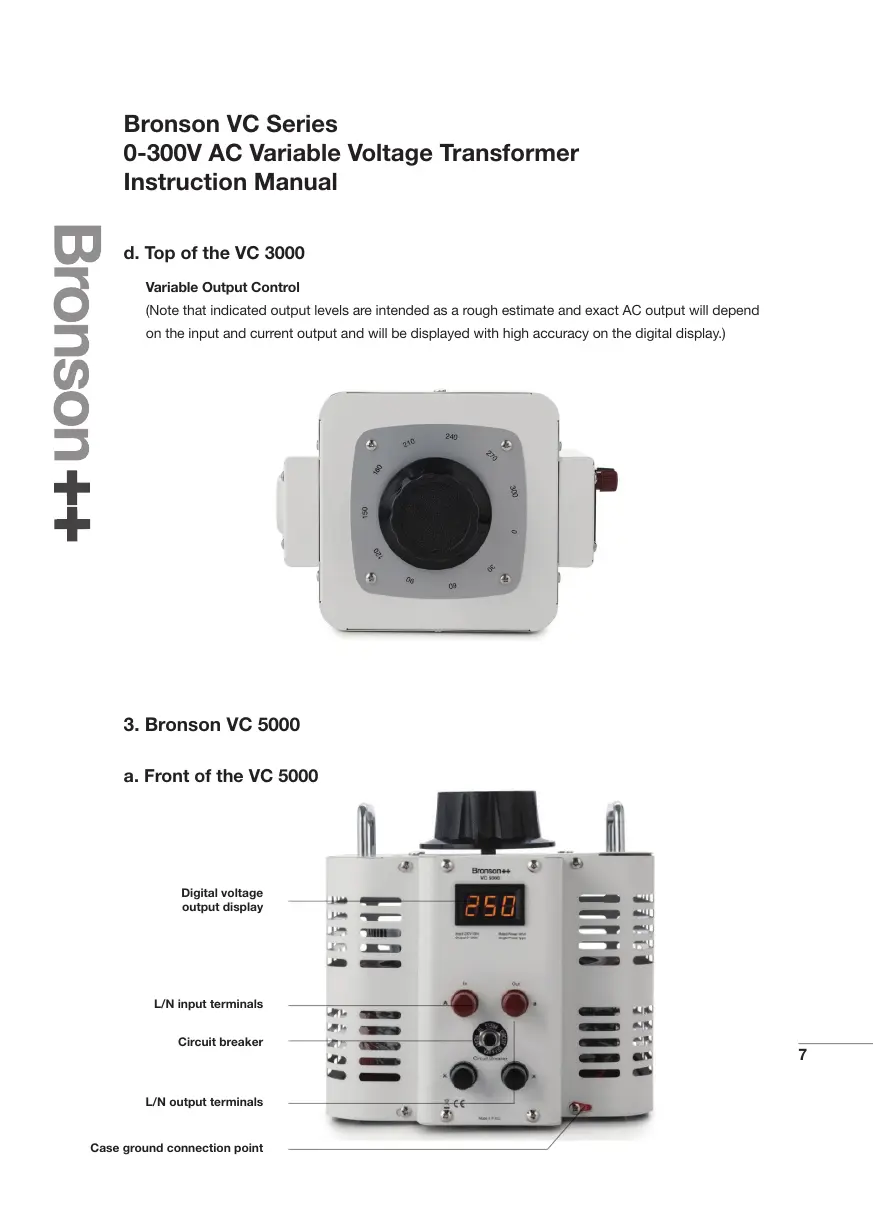

Bronson VC Series - Top of the VC 3000; Bronson VC 5000 Features; Front of the VC 5000

3. Bronson VC 5000
7
d. Top of the VC 3000
a. Front of the VC 5000
Variable Output Control
(Note that indicated output levels are intended as a rough estimate and exact AC output will depend
on the input and current output and will be displayed with high accuracy on the digital display.)
Bronson VC Series
0-300V AC Variable Voltage Transformer
Instruction Manual
L/N input terminals
Digital voltage
output display
Circuit breaker
Case ground connection point
L/N output terminals
