Bronson VC Series - Top of the VC 10000; Technical Specifications

9

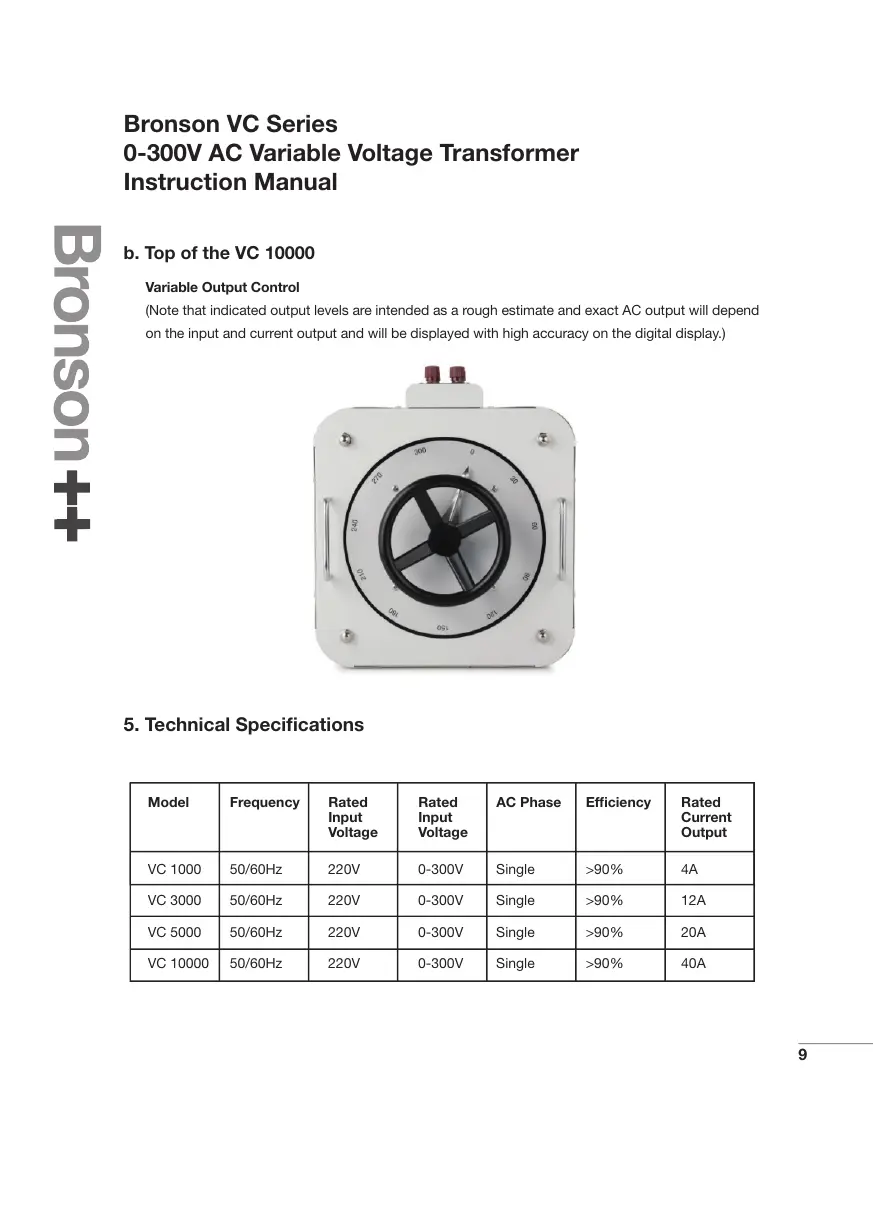

b. Top of the VC 10000
Bronson VC Series
0-300V AC Variable Voltage Transformer
Instruction Manual
5. Technical Specifications
Variable Output Control
(Note that indicated output levels are intended as a rough estimate and exact AC output will depend
on the input and current output and will be displayed with high accuracy on the digital display.)
Model Frequency Rated
Input
Voltage
Rated
Input
Voltage
Rated
Current
Output
AC Phase Efficiency
VC 1000 50/60Hz 220V 0-300V Single >90% 4A
VC 3000 50/60Hz 220V 0-300V Single >90% 12A
VC 5000 50/60Hz 220V 0-300V Single >90% 20A
VC 10000 50/60Hz 220V 0-300V Single >90% 40A
