6. Replacing Parts
6-1-2. Assembling/Disassembling the Covers
Upper parts of the Covers
GT-3 Series
118
Disassembling
<Note>
0177Y
Be su
re to follow the steps below for smooth operation.

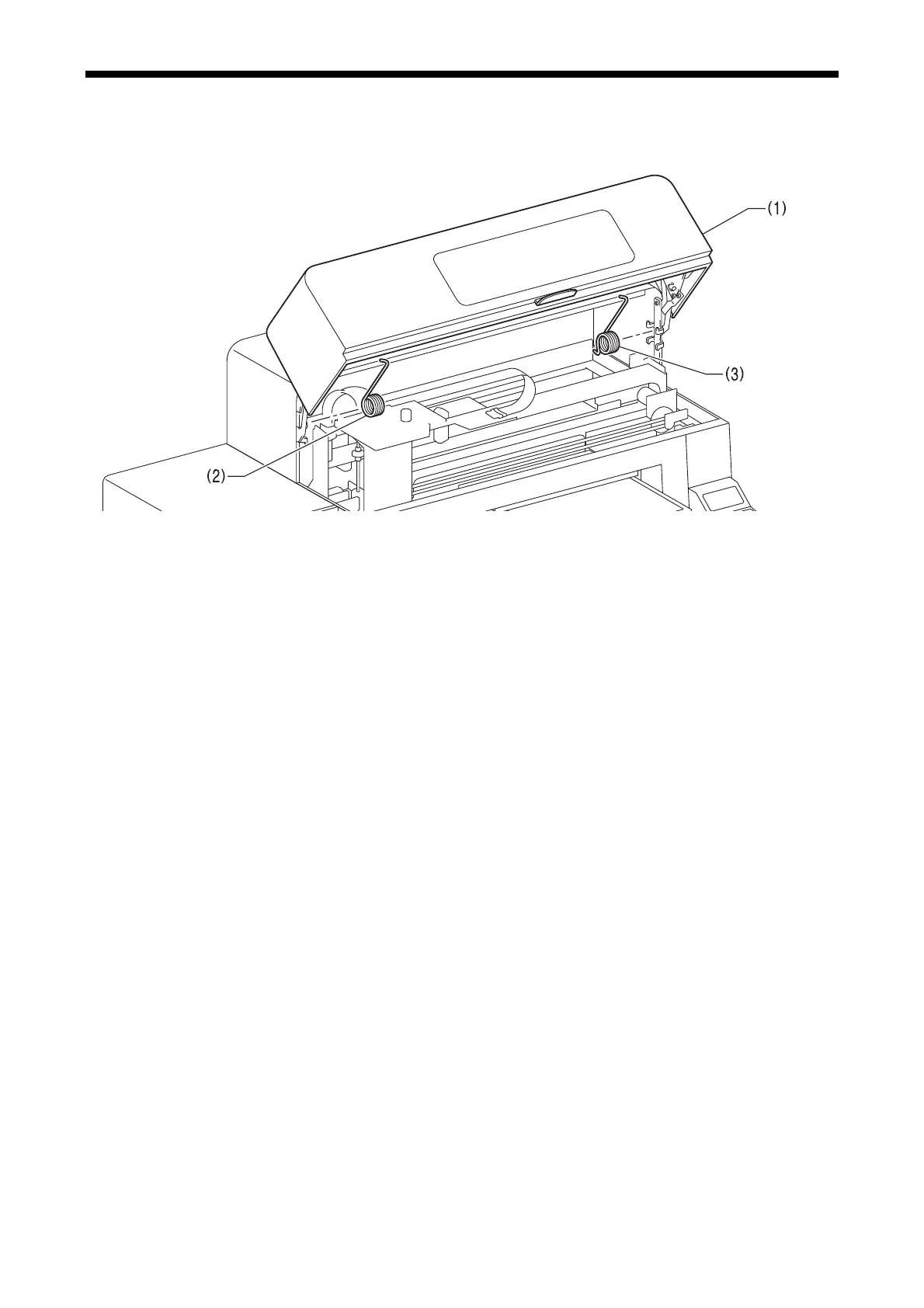

1. Open the Front Cover UF (1).
2. Remove the Link Spring L (2) and Link Spring R (3).
3. Hold the Front Cover UF (1) with both hands and close it slowly.
<Note> Without Link Springs, the Front Cover UL closes quicker than the normal condition.
