CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-6

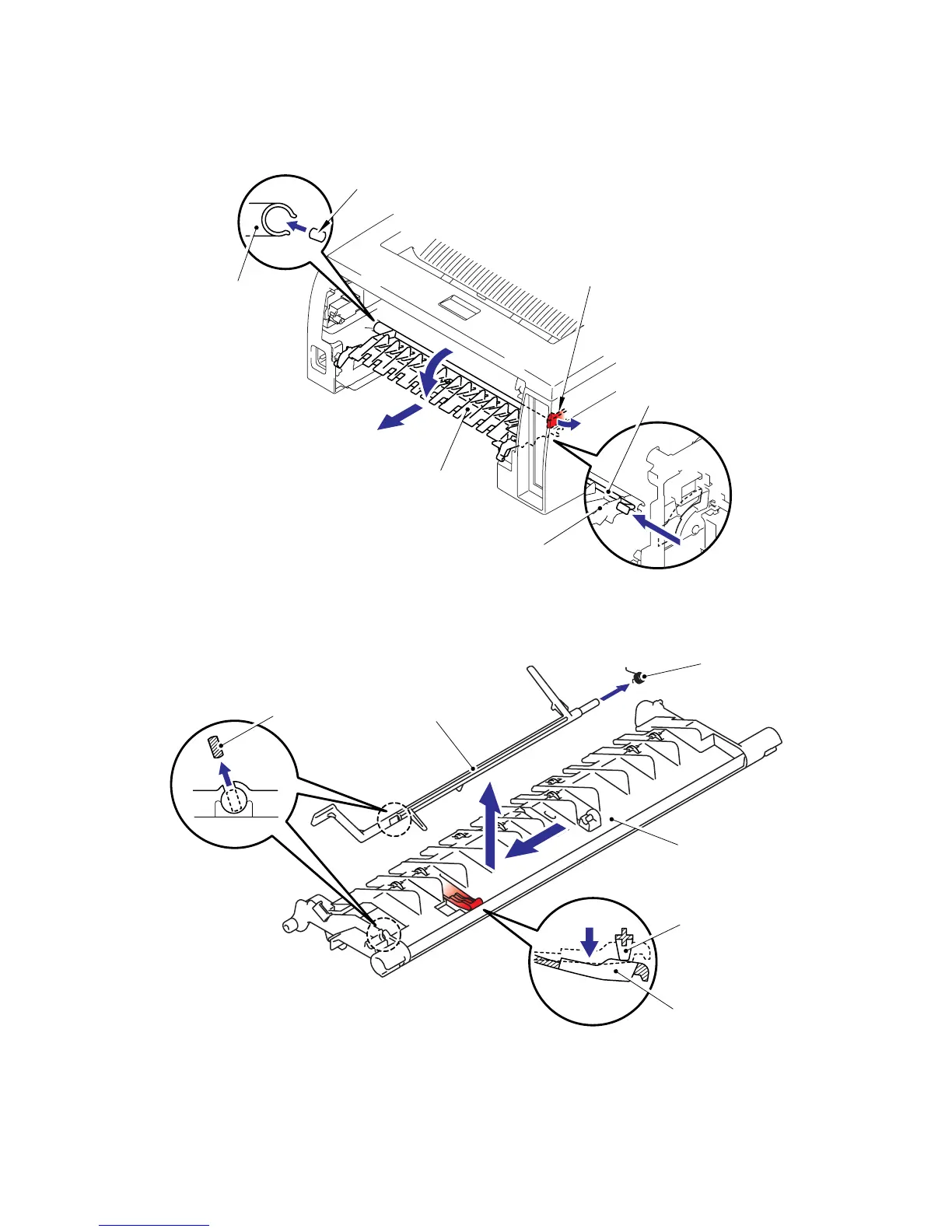

3.5 Rear Chute Cover
(1) Remove the rear chute cover.
Fig. 4-6
(2) Remove the paper eject actuator and the eject actuator spring.
Fig. 4-7
Rear chute cover
Eject actuator spring
Paper eject actuator
Boss
Rear chute cover
Hook
Rear chute cover
Paper eject actuator
Rear chute cover
Paper eject actuator
Hook
1
Paper eject actuator
2
3
4
