8.45 Wireless LAN PCB ASSY (HL-4070CDW only)

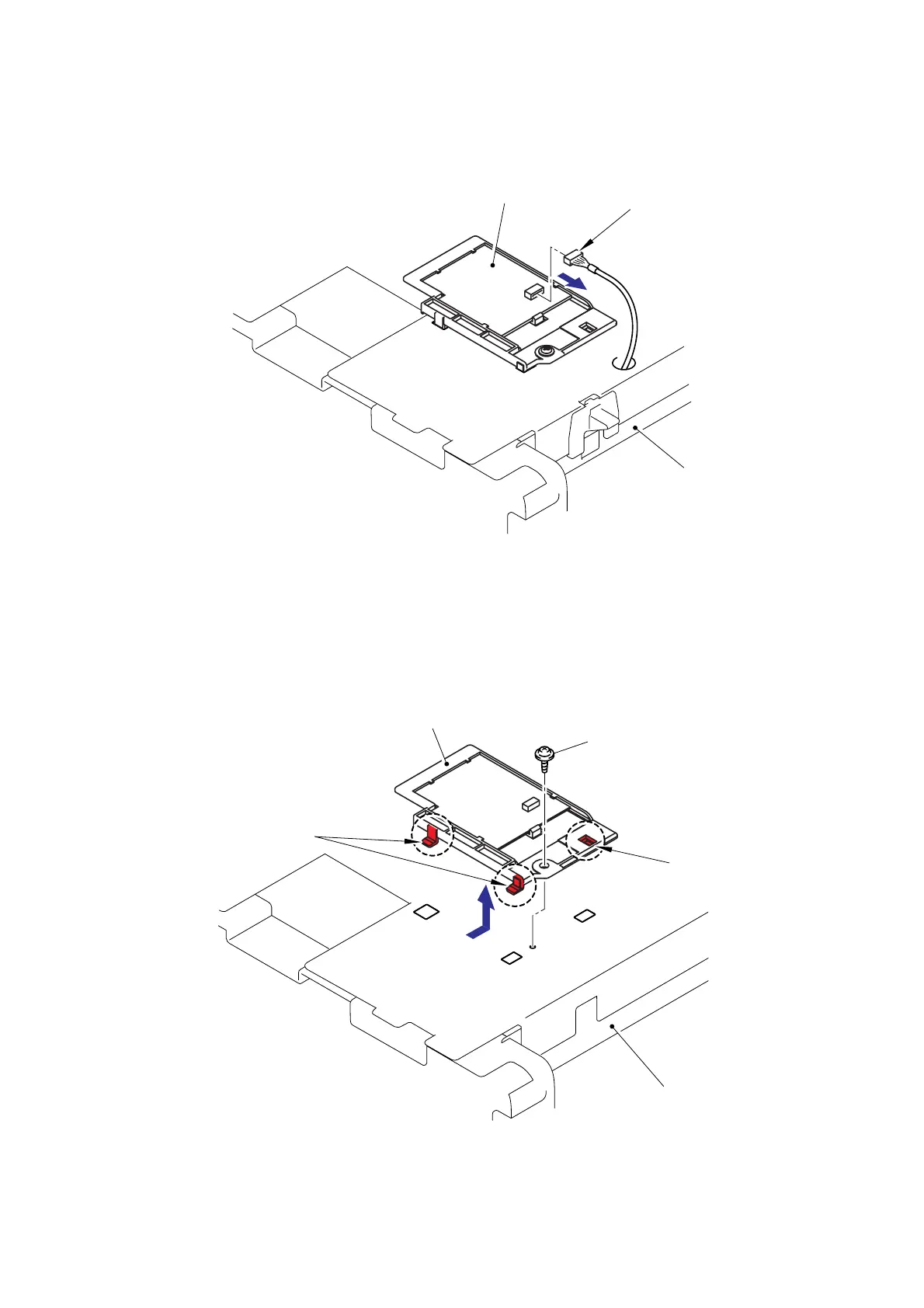

(1) Disconnect the Connector from the Wireless LAN PCB ASSY.
Fig. 3-128
(2) Remove the cup S M3x8 Taptite screw.
(3) Release the three Hooks to remove the Wireless LAN holder from the Frame unit.
Fig. 3-129
Wireless LAN PCB ASSY
Connector
Wireless LAN holder
Taptite, cup S M3x8
Hook
Hooks
<Front side>
<Front side>
Frame unit
Frame unit
