Brother HL-4040CN - Drum Lock Lever R

Confidential
3-116
8.58 Drum Lock Lever R

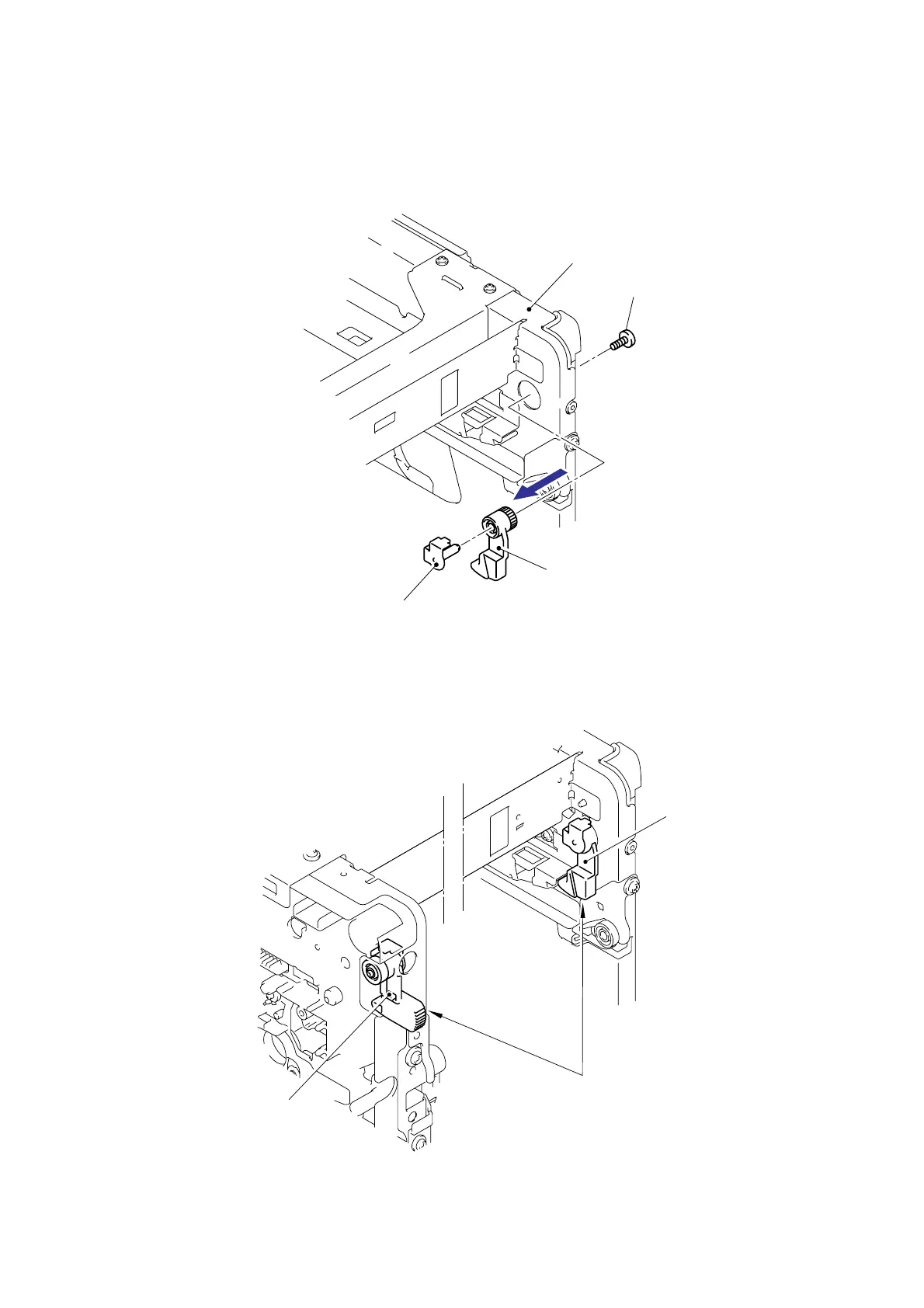

(1) Remove the Screw, bind M3x8, and remove the Drum lock lever plate R ASSY and then
remove the Drum lock lever R from the Frame unit.
Fig. 3-171
Assembling Note:
Assemble the Drum lock lever so that both Drum lock lever R and L are in the same direction.
Fig. 3-172
Screw, bind M3x8
Frame unit
Drum lock lever R
Drum lock lever plate R ASSY
<Front side>
Drum lock lever R
Drum lock lever L
<Front side>
A
ssemble so that they are
in the same direction.
