3-120
Confidential
(7) Disconnect the wiring of the T1 paper edge sensor PCB ASSY.
(8) Release the three Hooks to remove the T1 paper edge sensor PCB ASSY from the PF
ASSY.

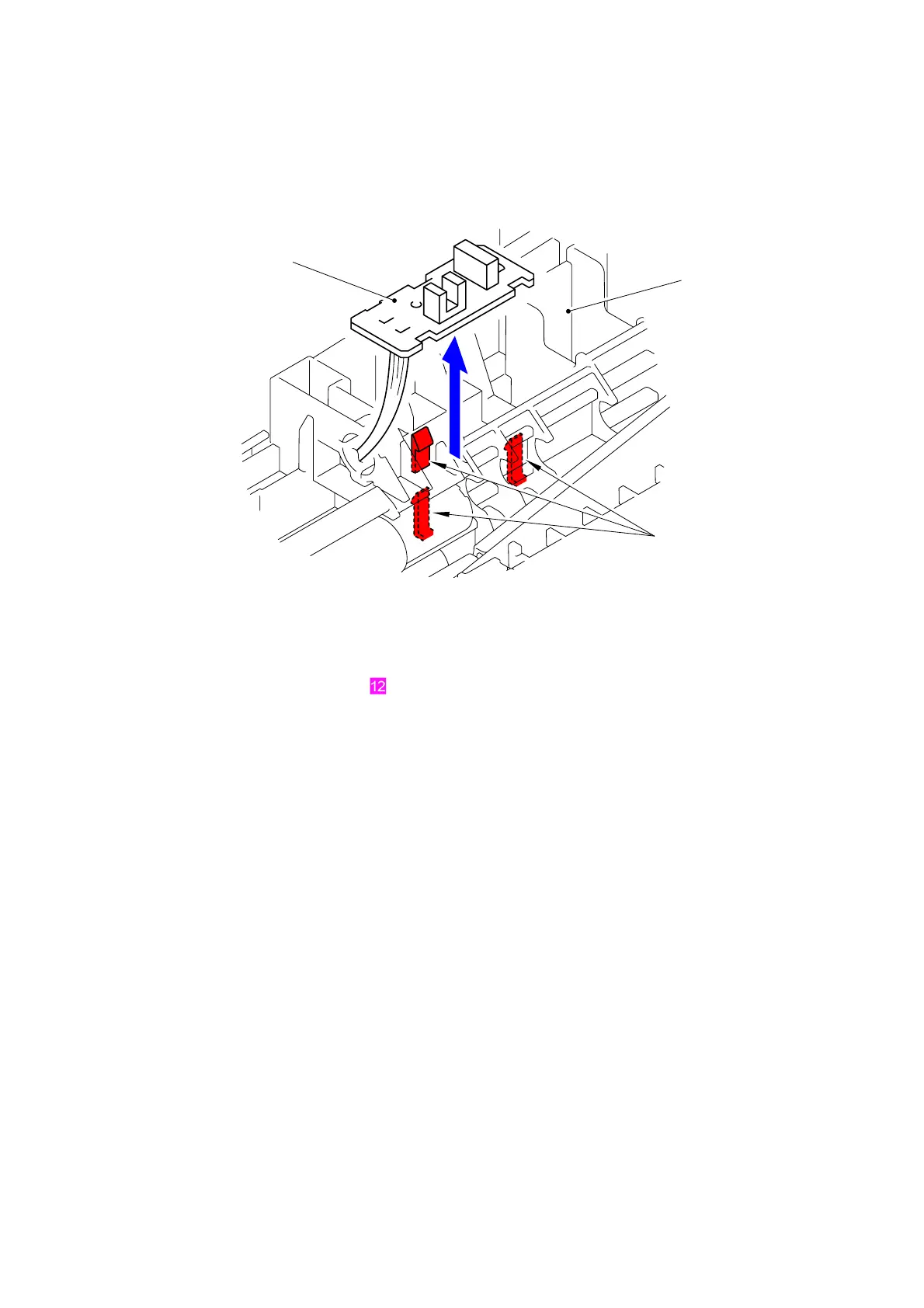

Fig. 3-162
Harness routing: Refer to “ PF ASSY”
Hook
T1 paper edge sensor PCB ASSY
PF ASSY
