CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-10
NOTE:
When re-assembling the pressure plate ASSY, ensure that the paper indicator arm is under
the pressure plate.
CAUTION:
When unhooking the catches to remove the pressure plate, do not bend the pressure plate,
gently ease the plastic cover. If the pressure plate is deformed, paper feeding problems may
occur.
(17) Remove the herical extension spring.
(18) Remove the lock lever.

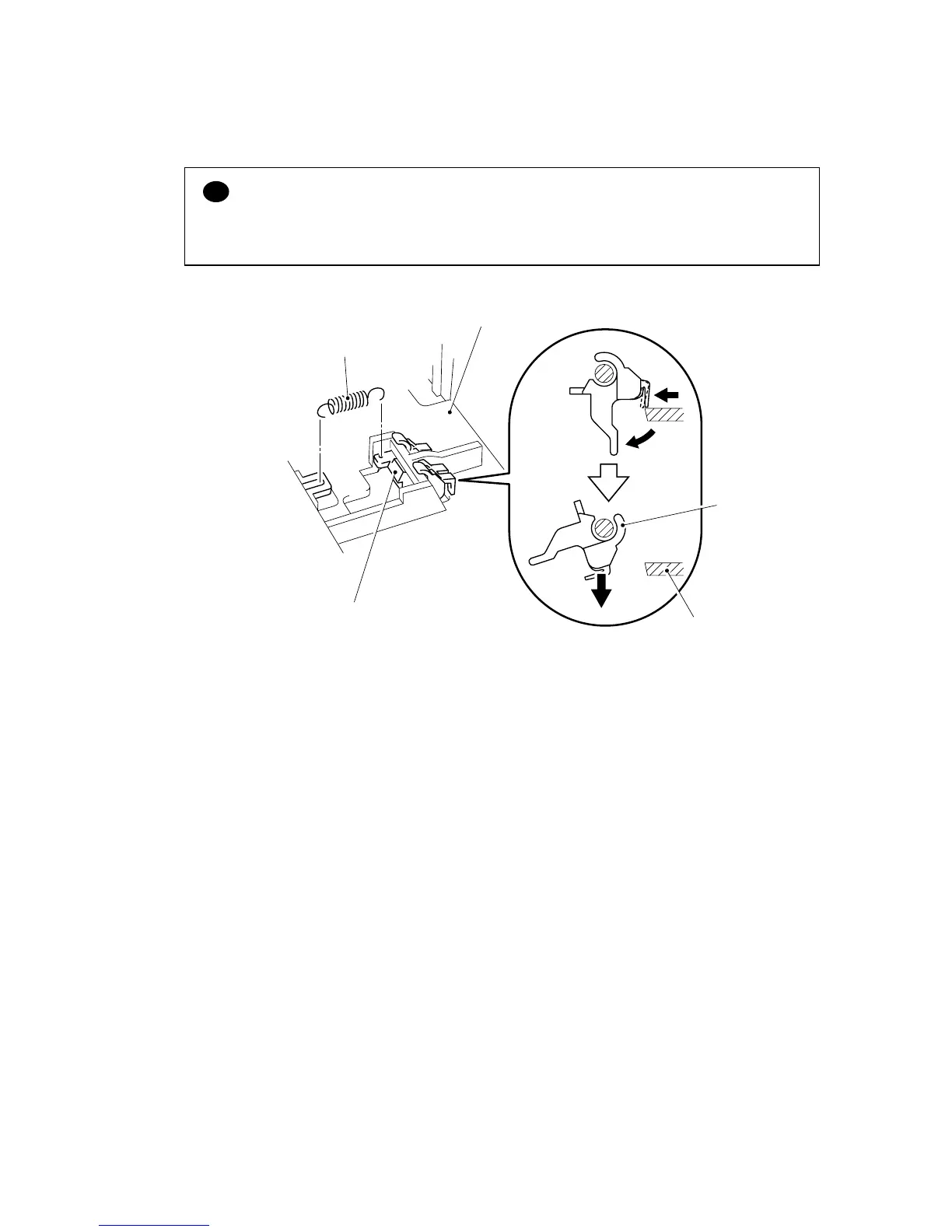

Fig. 4-15
NOTE:
When re-assembling the lock lever, insert it upwards from underneath the cassette and rotate
it until the two catches lock into place.
Herical extension spring
Lock lever
1
2
3
Paper tray
Paper tray
Lock lever
