HL-5130/5140/5150D/5150DN Service Manual
4-61

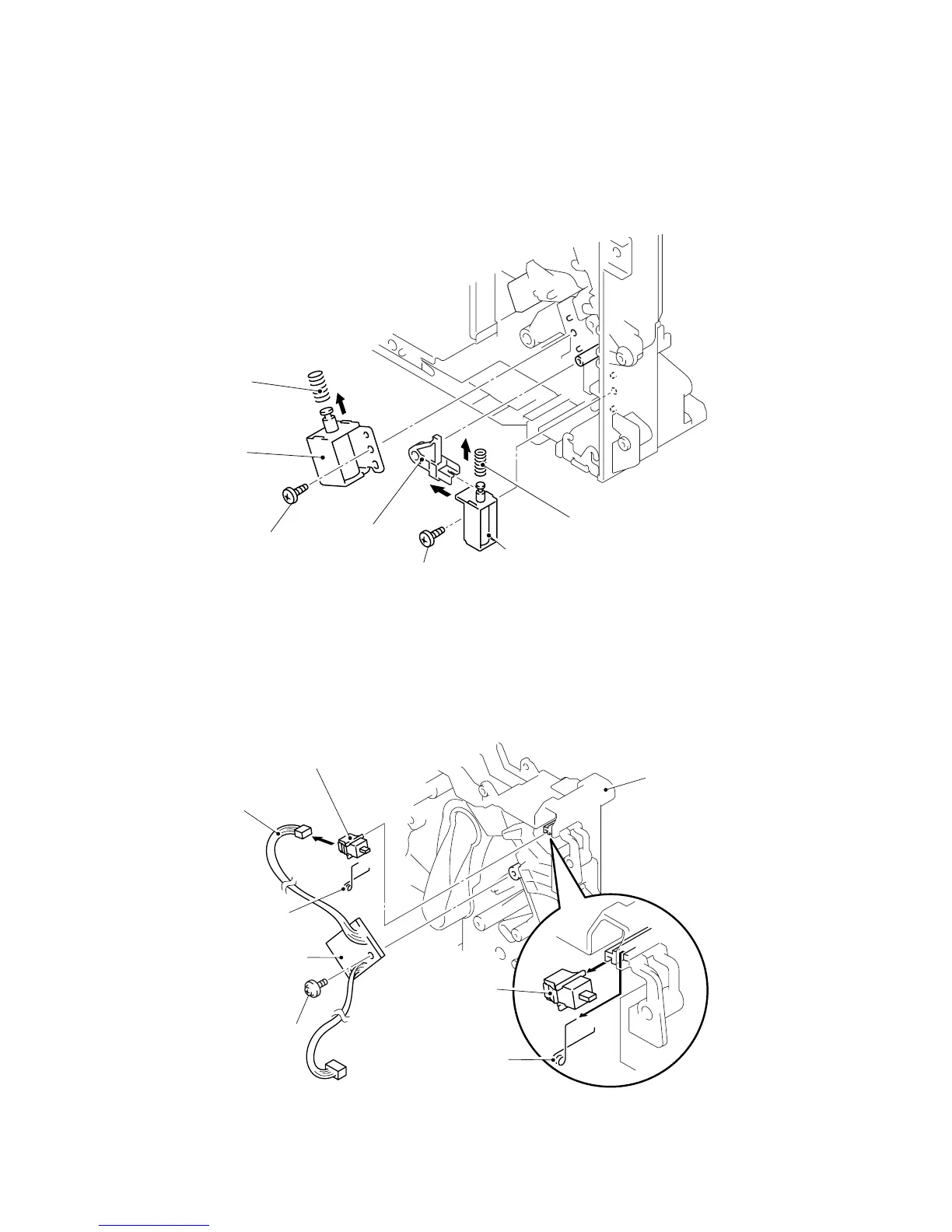

(17) Remove the bind B M3x10 Taptite screw.
(18) Remove the P/R solenoid ASSY, the P/R solenoid lever and the solenoid release spring
P/R.
(19) Remove the bind B M3x10 Taptite screw.
(20) Remove the F/R solenoid ASSY and solenoid release spring F/ R.
Fig. 4-107
(21) Disconnect the connector from the front cover sensor.
(22) Remove the bind B M3x10 Taptite screw.
(23) Remove the toner LED PCB unit ASSY.
(24) Remove the sensor clip.
(25) Remove the front cover sensor from the main frame L.
Fig. 4-108
Taptite, bind B M3x10
F/R solenoid
A
SS
Y
Solenoid release spring P/R
P/R solenoid ASSY
Toner LED PCB
unit ASSY
Sensor clip
Front cover sensor
Sensor clip
P/R solenoid lever
Solenoid release
spring F/R
Taptite, bind B M3x10
Taptite, bind B M3x10
Main frame L
Front cover sensor
Connector
