2-4
Confidential
2. OVERVIEW

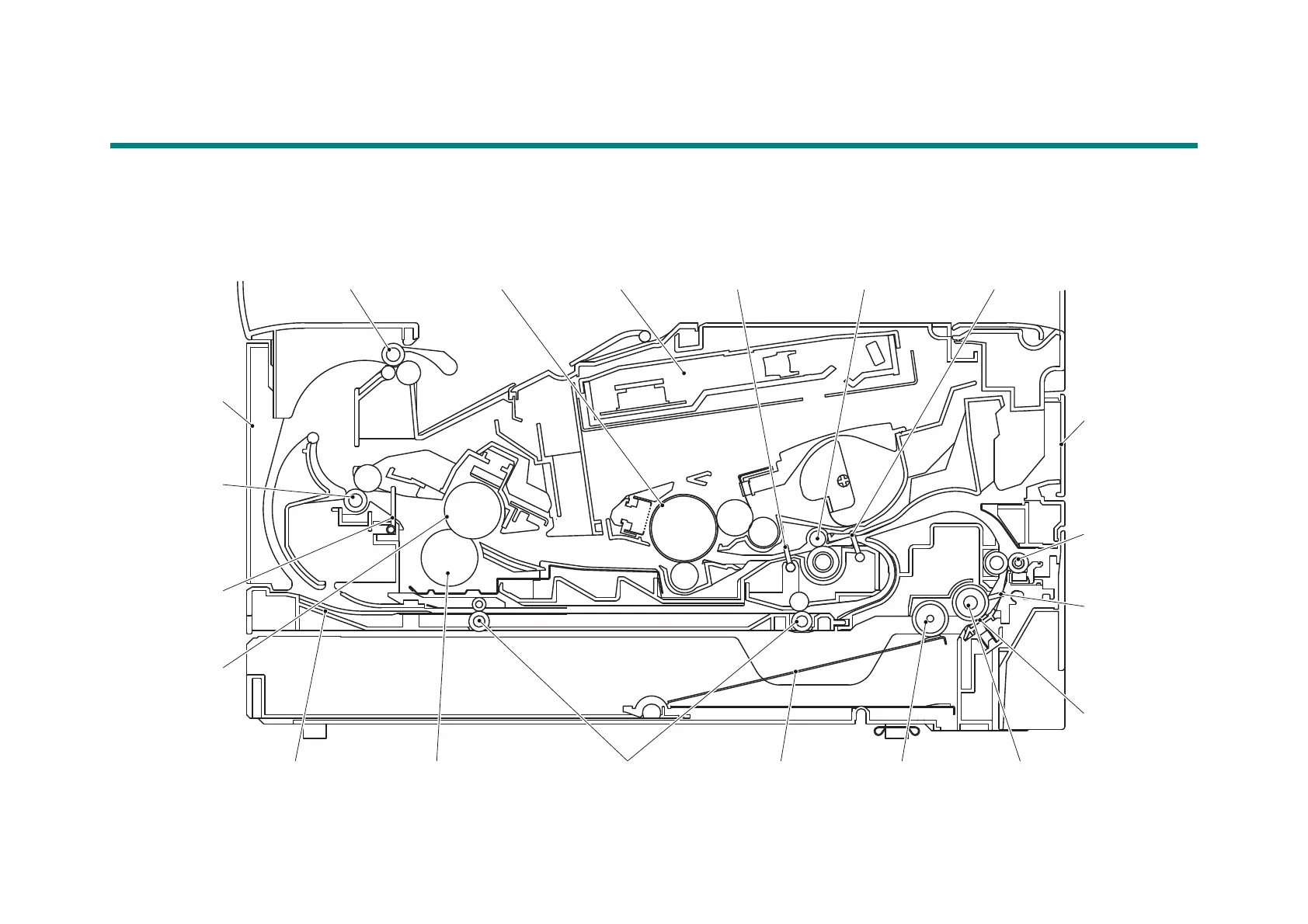

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-2
<Back side>
Eject roller 2 Exposure drum Laser unit Registration rear actuator
<Front side>
Registration front actuator
Manual feed slot
Paper dust
cleaning roller
Paper feed
actuator
Separation pad
Separation rollerPick-up rollerPlateDuplex paper feed rollerPressure rollerDuplex tray
Heat roller
Eject actuator
Eject roller 1
Back cover
Registration roller
