3. INSTALLATION
12KE-430F, BE-438F

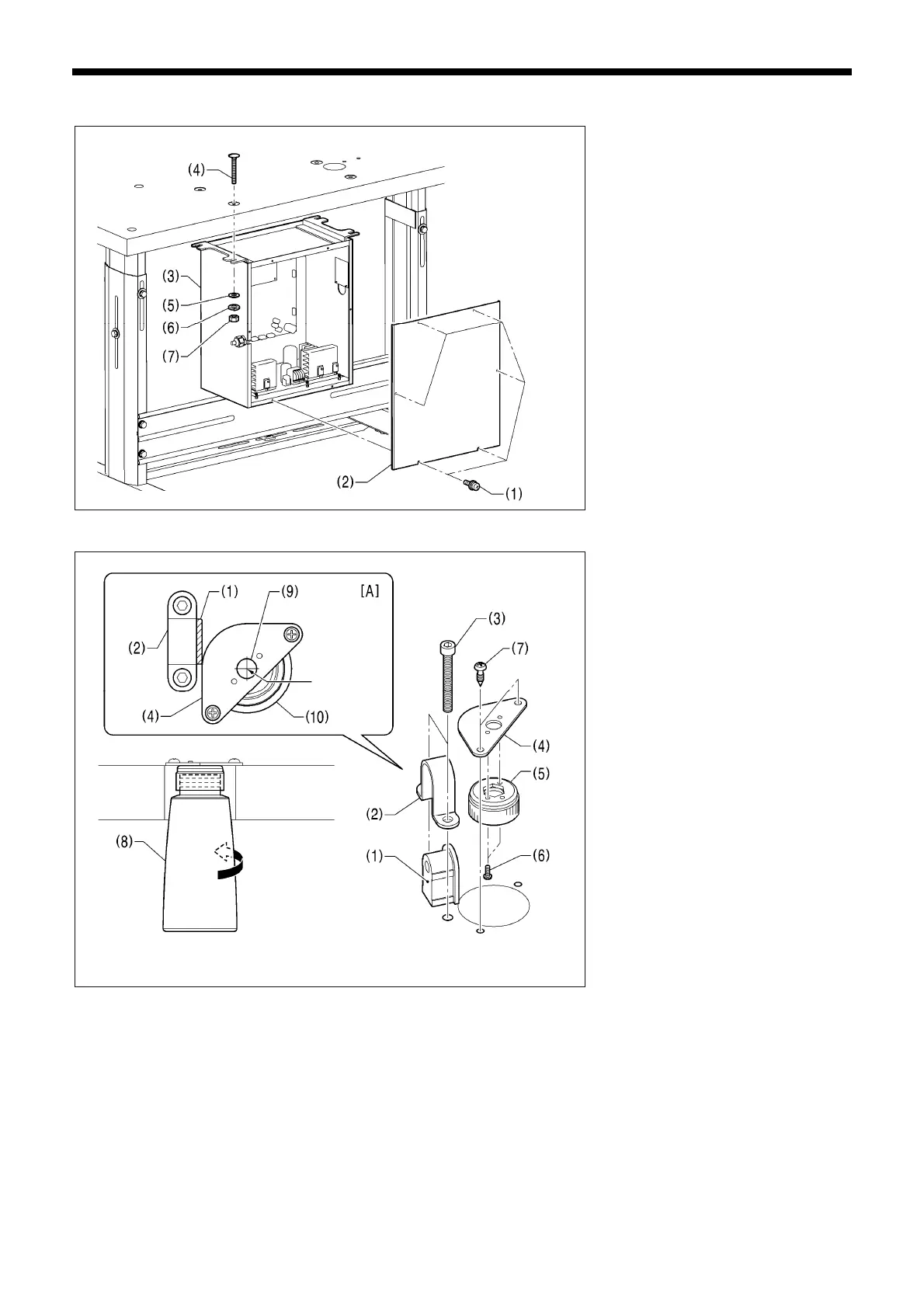

3-2. Installing the control box
Remove the six screws (1), and then
remove the control box cover (2).
(3) Control box
(4) Bolts [4 pcs]
(5) Plain washers [4 pcs]
(6) Spring washers [4 pcs]
(7) Nuts [4 pcs]
3-3. Installing the oiler
Before installing the oiler, provisionally
install the rubber cushion (1) and the
hinge holder (2) to the table with the two
bolts (3).
(4) Dust oiler setting plate
(5) Dust oiler
(6) Screws [2 pcs]
(7) Wood screws [2 pcs]
(8) Oiler
* Install the dust oiler setting plate (4) so
that the hole (9) in the dust oiler setting
plate (4) is in the center of the hole (10)
in the table for installing the oiler (8) as
shown in figure [A].
NOTE:
• Make sure that the dust oiler setting
plate (4) does not interfere with the
hinge holder (2).
2280B
2281B
Center
