3. INSTALLATION
20KE-430F, BE-438F

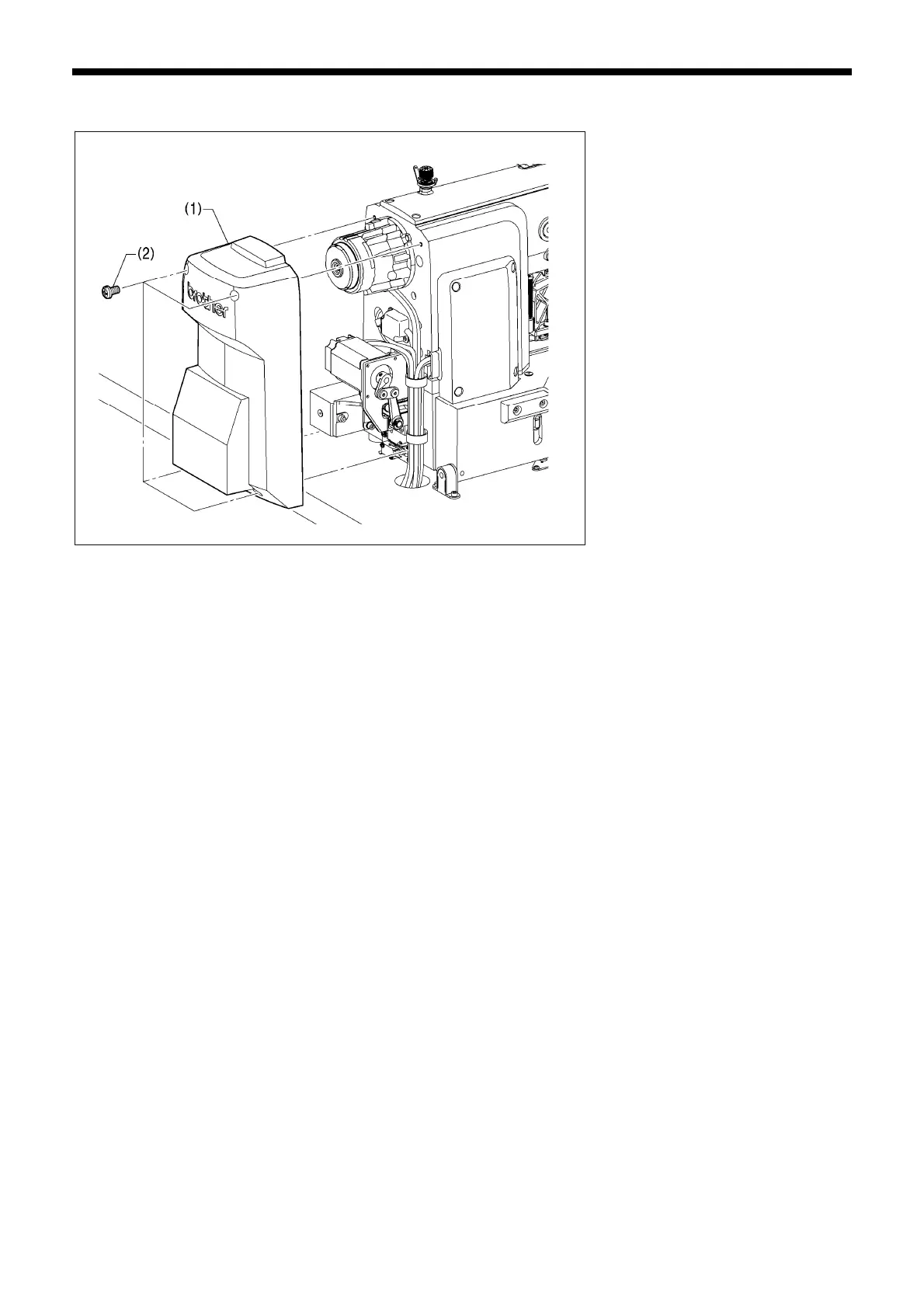

3-11. Installing the rear cover
(1) Rear cover
(2) Screws [4 pcs]
NOTE:
Be careful not to clamp the cords when
installing the rear cover (1).
2293B
