9.8.16 Switch Back Solenoid ASSY (For the models with the DX only)
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the Switch back solenoid ASSY.

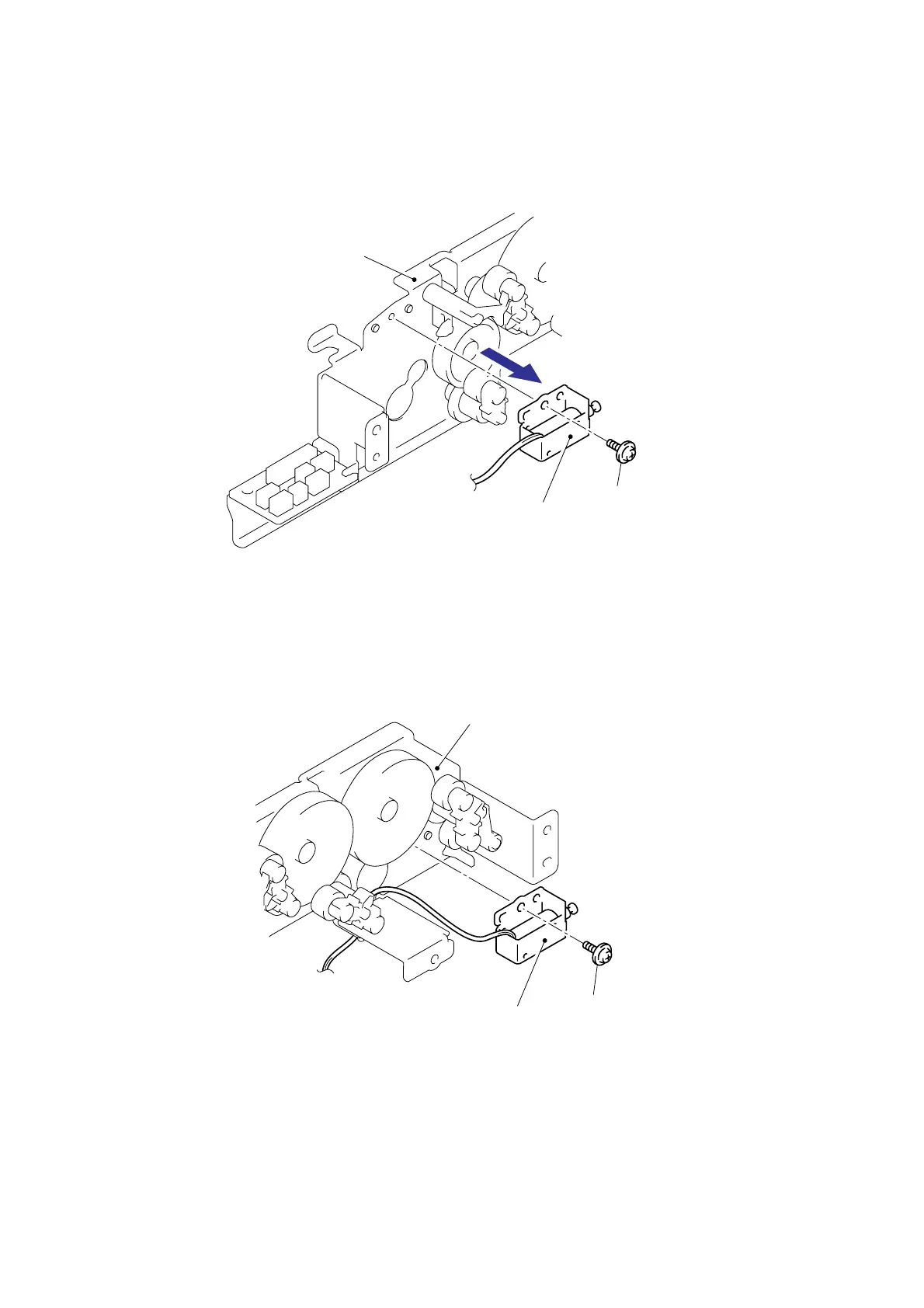

Fig. 5-63
9.8.17 PF Solenoid ASSY (For the models with the DX only)
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the PF solenoid ASSY.
Fig. 5-64
Motor frame ASSY
Switch back solenoid ASSY
Taptite cup S M3x8
Motor frame ASSY
PF Solenoid ASSY
Taptite cup S M3x8
