5-103
Confidential

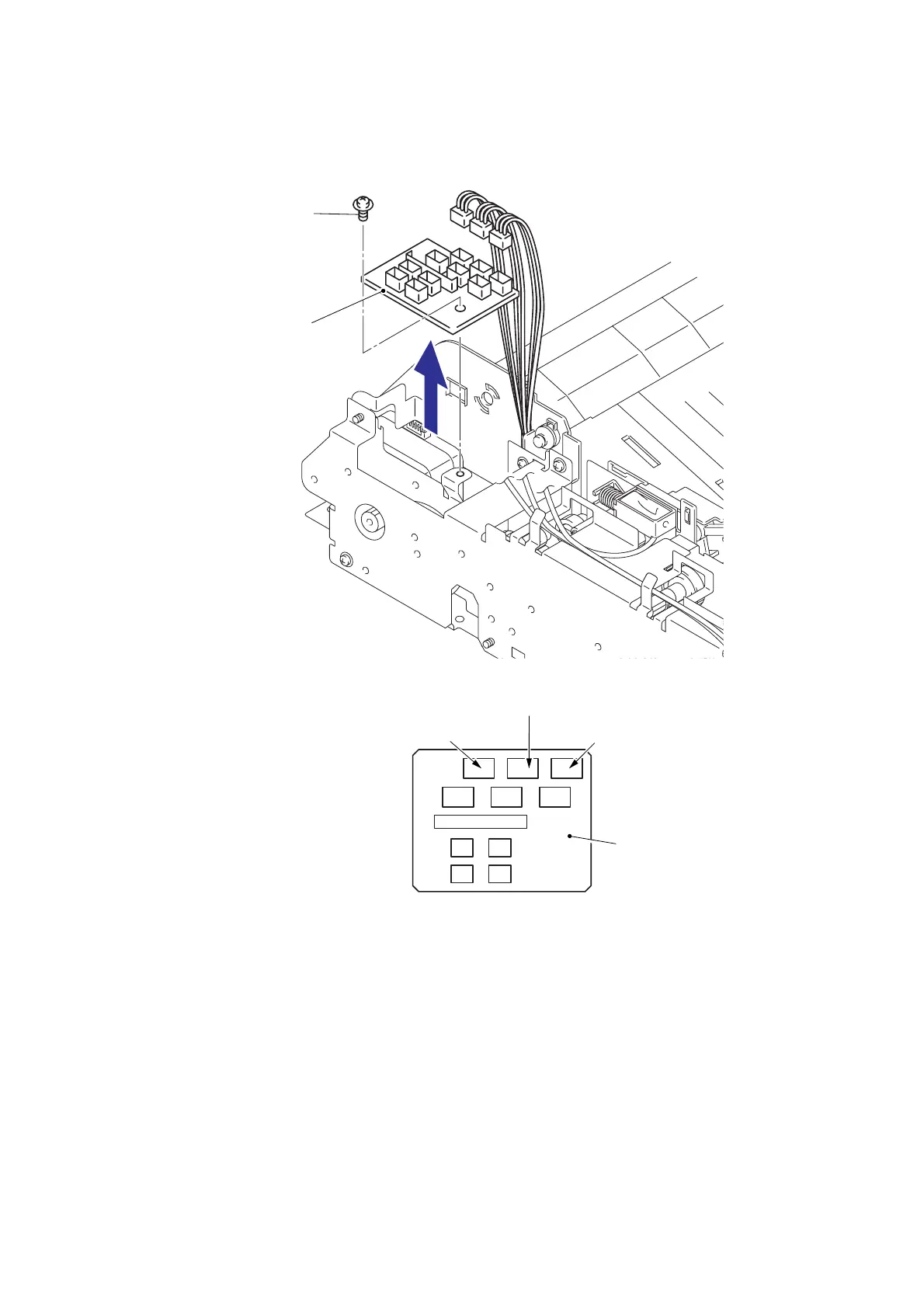

(4) Remove the cup S M3x6SR Taptite screw, and remove the ADF relay PCB ASSY.
(5) Disconnect the three Connectors from the ADF relay PCB ASSY.
Fig. 5-109
ADF relay PCB ASSY
Document front sensor 2
Document front sensor 1
Document eject sensor
Taptite cup S M3x6SR
ADF relay PCB ASSY

Brother MFC-8480DN - B/W Laser - All-in-One Specifications

General

Printer Type	B/W Laser
Functions	Print, Copy, Scan, Fax
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Automatic Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet
Paper Input Capacity	250 sheets
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Print Speed	32 ppm
Copy Resolution	1200 x 600 dpi
Scan Type	Flatbed, ADF
Max Paper Size	Legal (8.5 in x 14 in)
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 32 cpm
Dimensions	531 mm x 451 mm x 475 mm
