Brother MFC-8510DW Service Manual

3-69
Confidential
9.15 Speaker unit
(1) Release the hook, and remove the speaker hold spring from the joint cover.
(2) Remove the speaker unit from the joint cover, and release the speaker harness from the
securing fixtures.

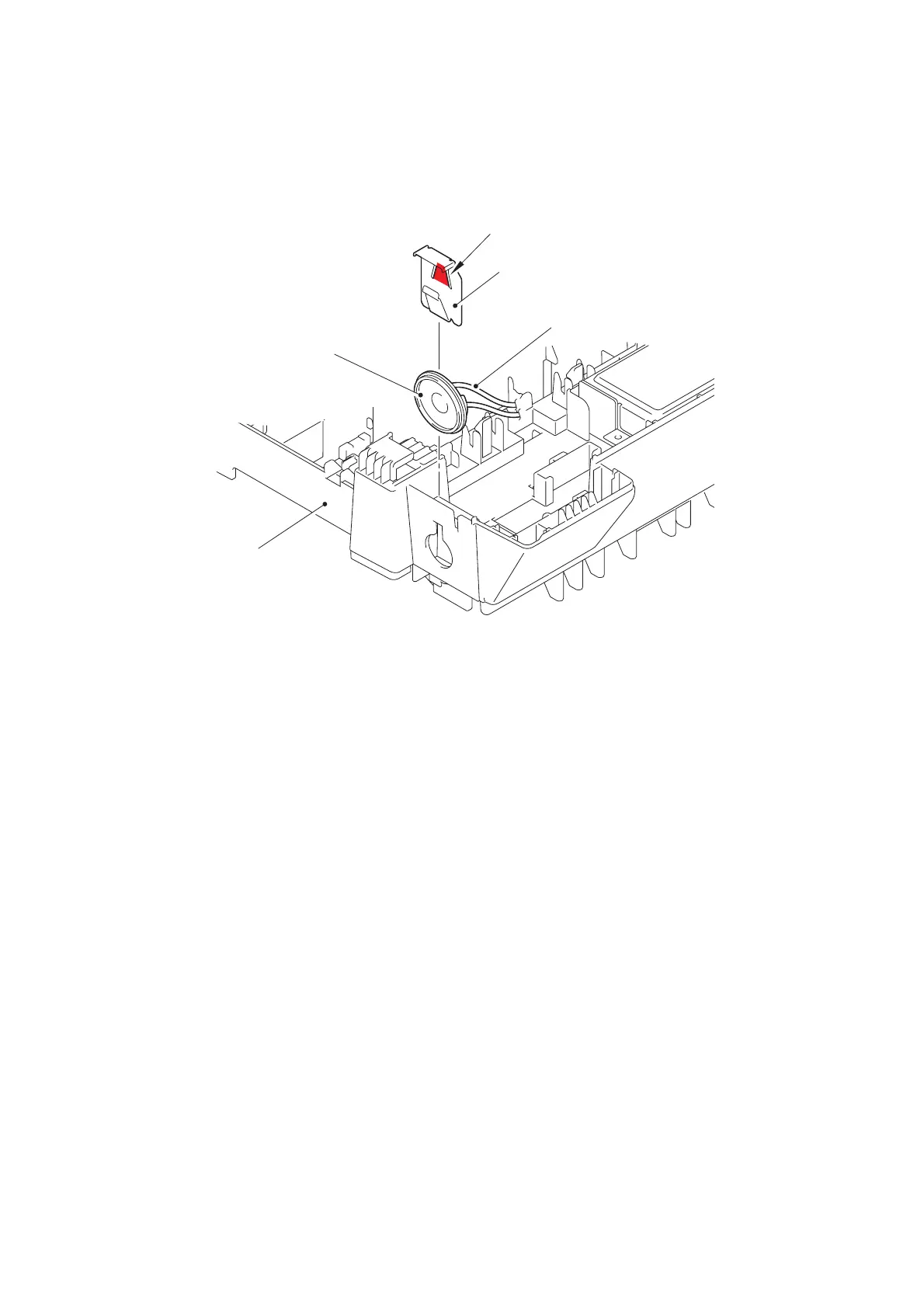

Fig. 3-95
Harness routing: Refer to “8.NCU PCB ASSY / Speaker unit”.
Speaker hold spring
Speaker unit
Hook
Speaker harness
Joint cover
