3-93
Confidential
9.30 Toner sensor PCB ASSY
(1) Remove the MP sector gear spring from the main frame L ASSY.
(2) Release the toner sensor harness from the securing fixtures.
(3) Release the two hooks to remove the toner sensor PCB ASSY from the main frame L
ASSY.
(4) Release the two hooks to remove the toner LED holder from the toner sensor PCB
ASSY.

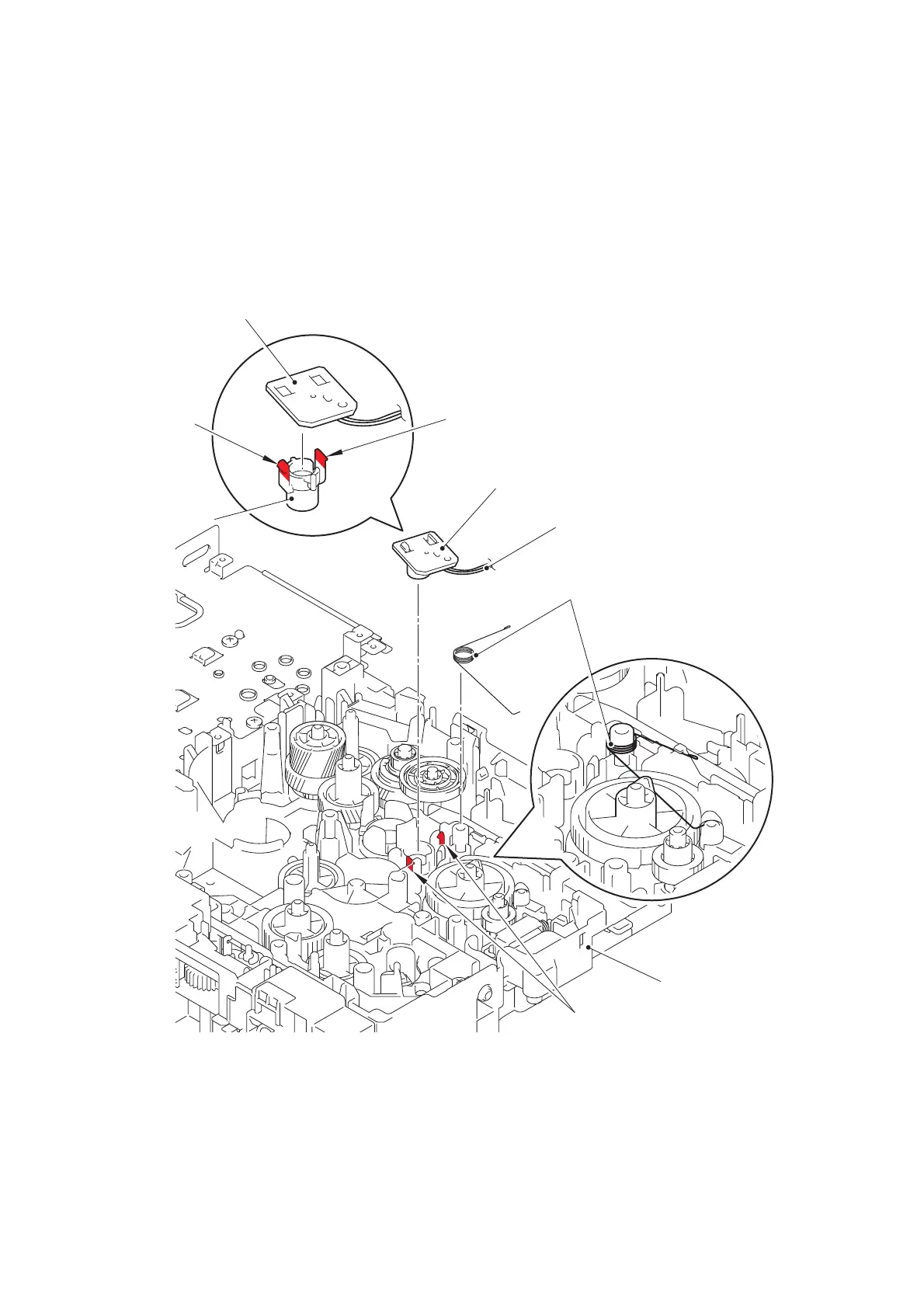

Fig. 3-122
Harness routing: Refer to “2.Relay front PCB ASSY”.
Toner sensor PCB ASSY
Hook
Toner LED
holder
Hook
Toner sensor PCB ASSY
Toner sensor harness
MP sector gear spring
Main frame L ASSY
Hooks
