Brother MFC-J5830DW Service Manual

3-61
Confidential

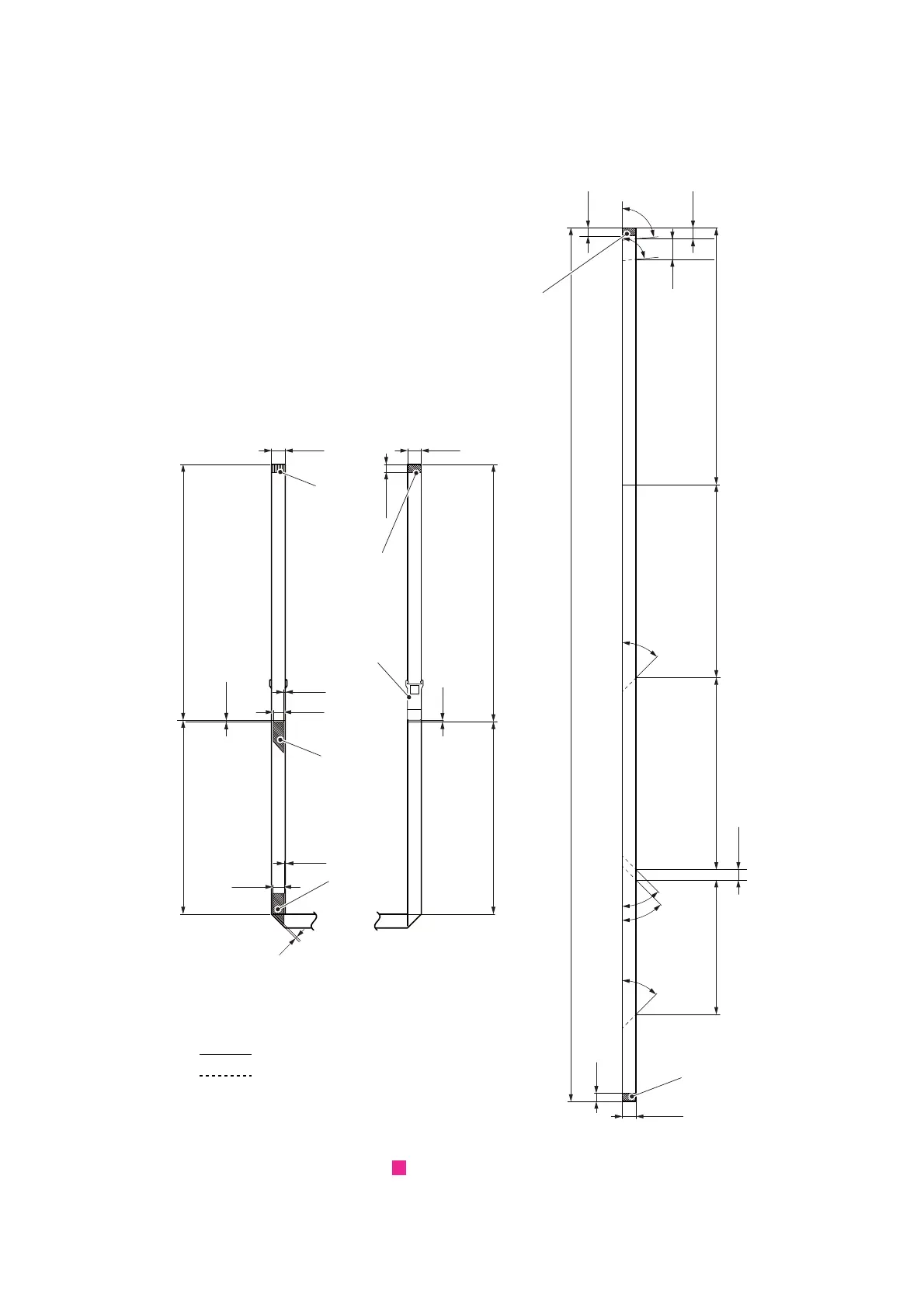

Assembling Note: Assemble a new First side CIS flat cable by bending the First side
CIS flat cable and affixing the Double-sided adhesive tape as
shown in the figure below.
Fig. 3-52
Routing of harnesses: See “ ADF unit/Document scanner unit”.
Double-sided
adhesive tape
Double-sided
adhesive
17mm
(237.5)
mm
1074
10
45°
45°
±15
mm
±3.5°
±3.5°
±2
mm
Supporting tape
Terminal
To main body
Mountain fold
Valley fold
Supporting
tape
45°
±3.5°
165.1±2mm
12.8±1mm
236.1±2mm
237.5±2mm
315.6±2mm
25.2±2mm
13.6±1mm
84.6°
±3.5°
10±2mm
0 to 2mm
(315.6)
mm
(17) mm
Supporting
tape
Double-sided
adhesive tape
0 to 2mm
0 to 2mm
(14) mm
(1.5) mm
0 to 2mm
(17) mm
tape
(1.5) mm
(14) mm
(237.5)
mm
(315.6)
mm
To CIS unit
To CIS unit
(10) mm
