Brother MFC-L2712DW

To Next Page

To Previous Page

3-45

Confidential

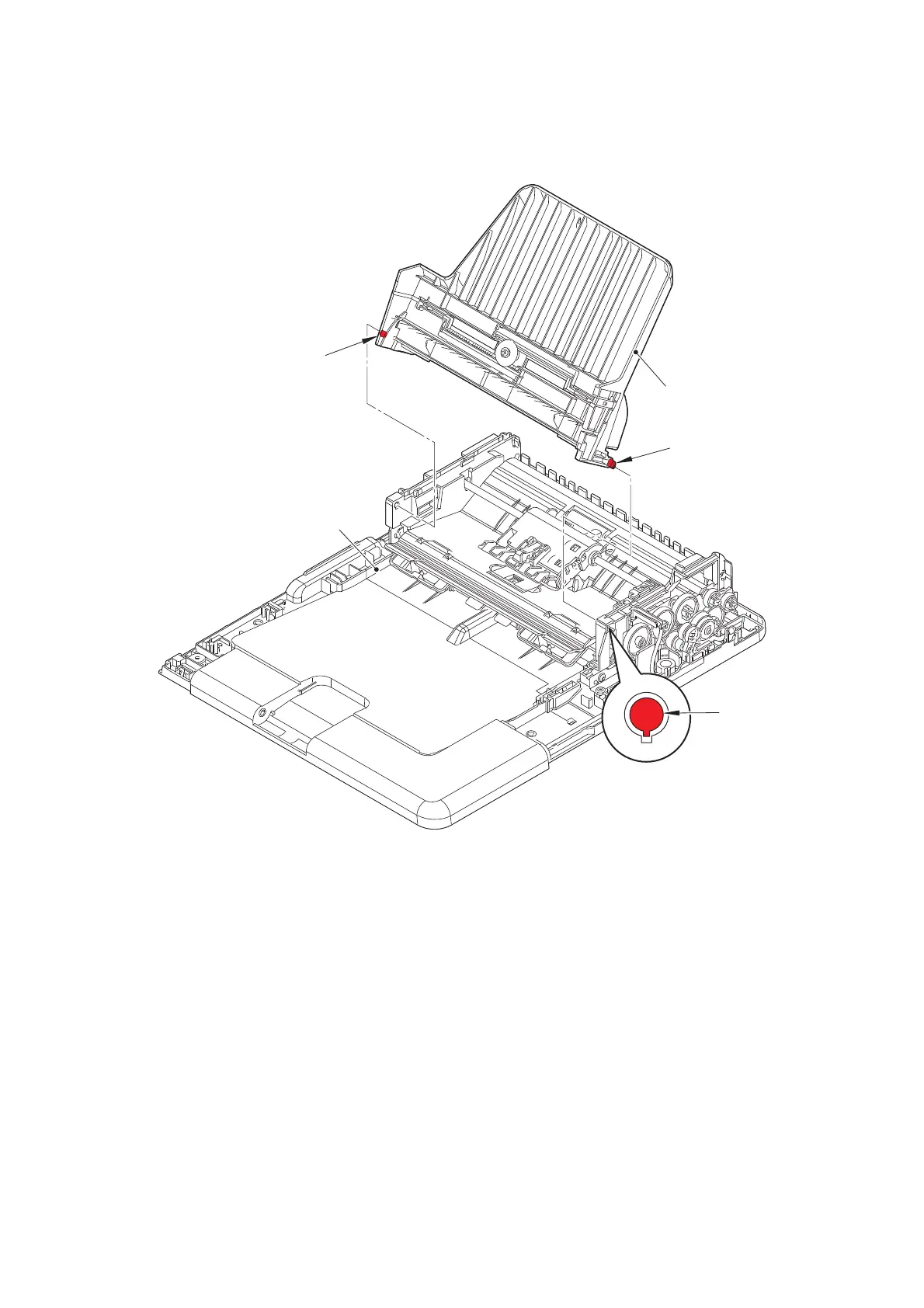

(3) Open the Document sub tray to remove it from the ADF unit by aligning each Boss position.

Fig. 3-36

Boss

ADF unit

Document sub tray

Boss
